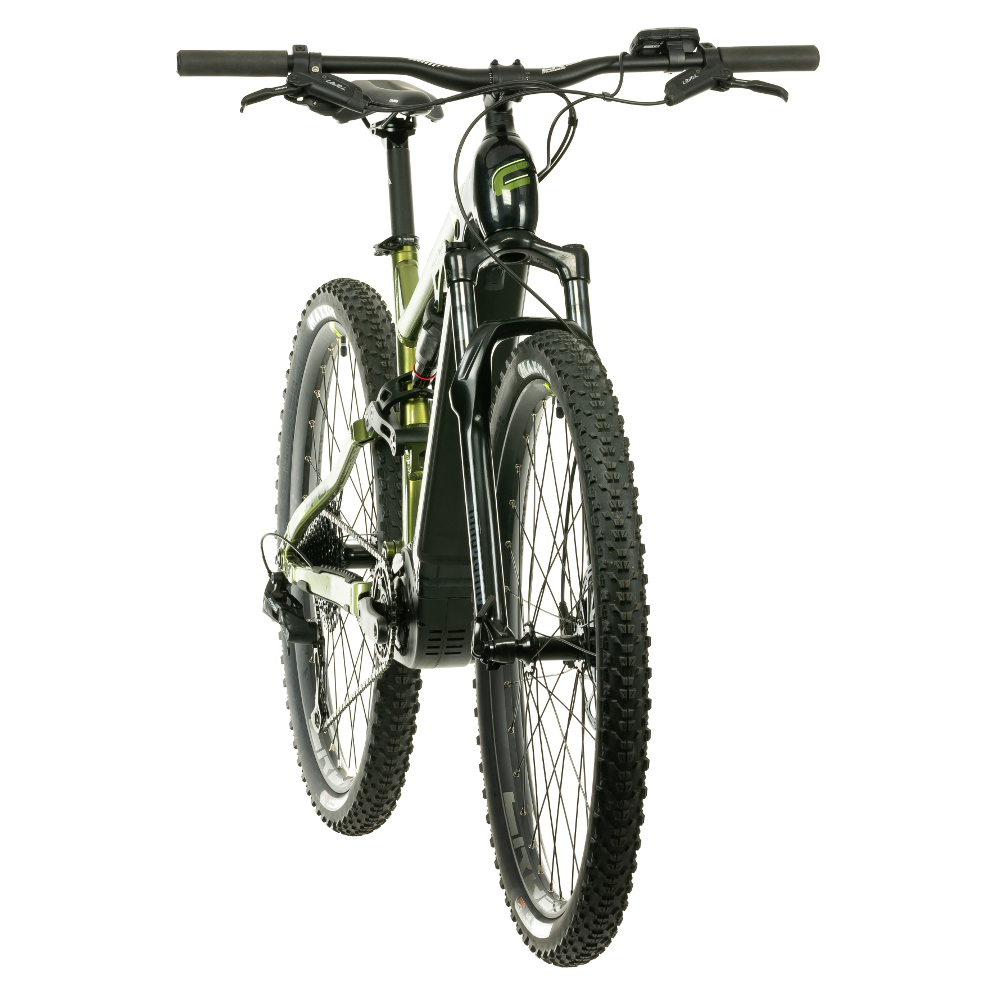

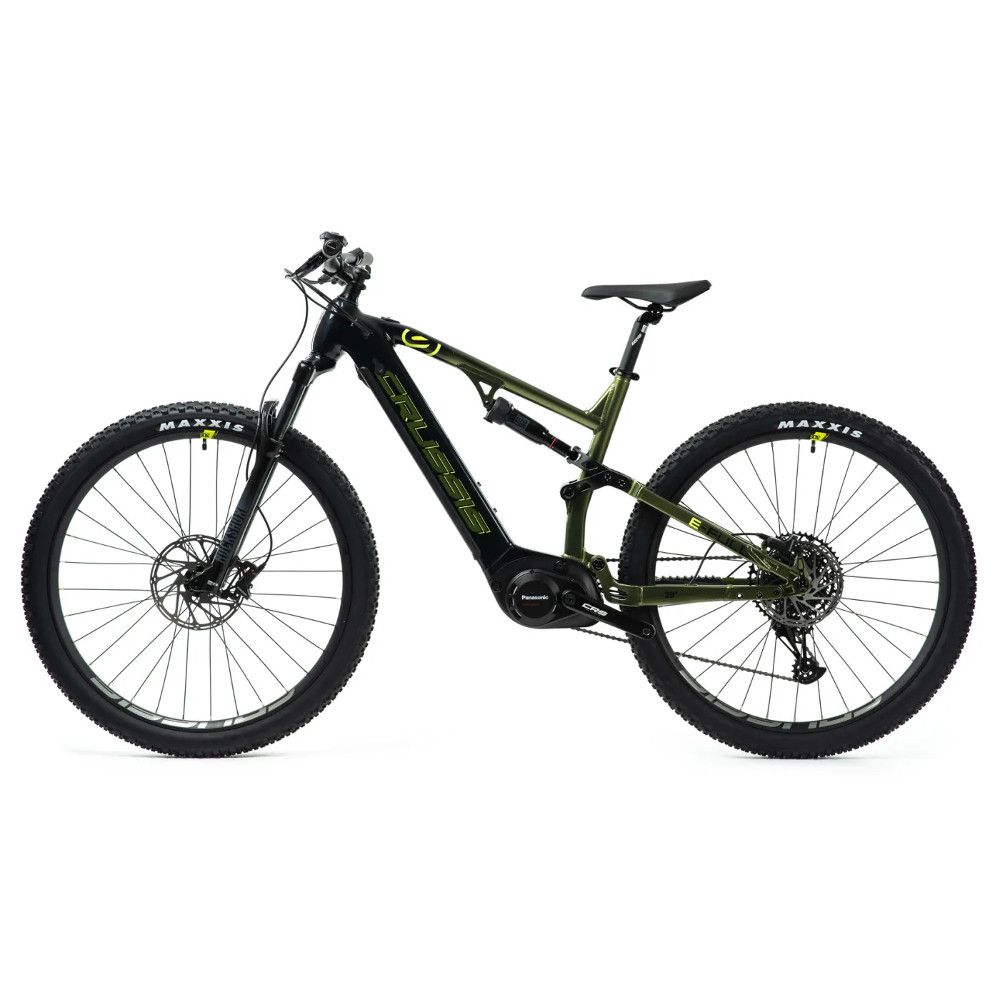

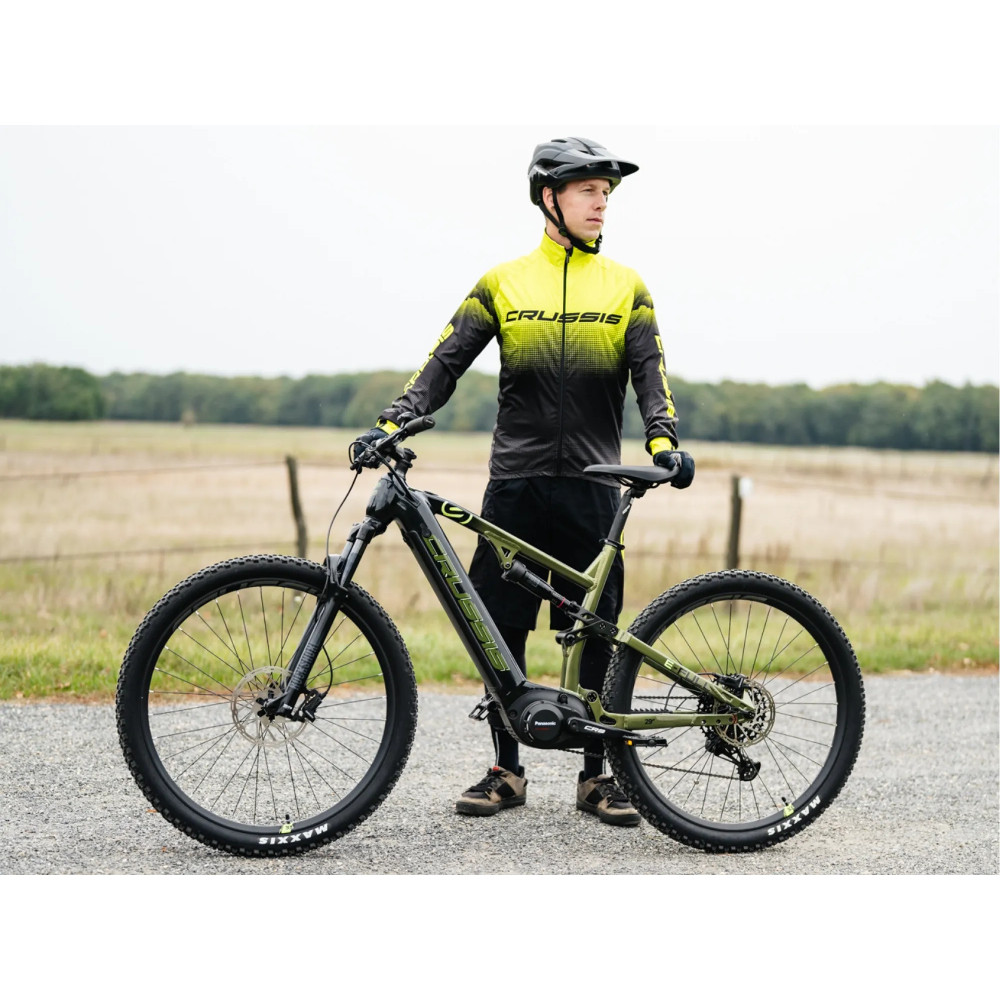

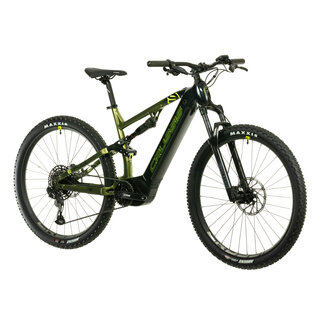

Full-Suspension Mountain E-Bike Crussis e-Full 9.9-M – 2024
Well-equipped full-suspension e-bike with 29” wheels, a top-class PANASONIC drive and a high-capacity battery. It will take you wherever you wish to go!
Recommended accessories
- Description
- Parameters
- Alternatives (8)
Full-Suspension Mountain E-Bike Crussis e-Full 9.9-M – 2024
With the Full-Suspension Mountain E-Bike Crussis e-Full 9.9-M – 2024, you will get where you wish to go, without having to make any compromises. This full-suspension wonder will take through challenging terrain, and to places you otherwise would not even dare to go. The main features of this bike are the top-class Panasonic GX Ultimate center drive and the high-capacity LG Li-ion 20Ah battery, which allow for a distance range of up to 170 km. You can switch between the 5 assistance modes on the control panel, where there’s also walking assistance and a USB port for charging your smartphone.
Another great feature is the 12-speed SRAM Eagle SX gear shifter that, along with the hydraulic brakes and the ROCKSHOX FS Judy Silver TK Solo Air 29" BOOST remote lockout fork with 120mm travel, ensures a safe ride on any surface. Furthermore, the fork features a ROCKSHOX Deluxe Select R, 210x55mm rear shock. The high-quality Maxxis Rekon Race tires provide excellent adhesion on all surfaces! Pedal away and visit places that were just a wishful thinking a couple weeks ago – the Full-Suspension Mountain E-Bike Crussis e-Full 9.9-M – 2024 will take you there!

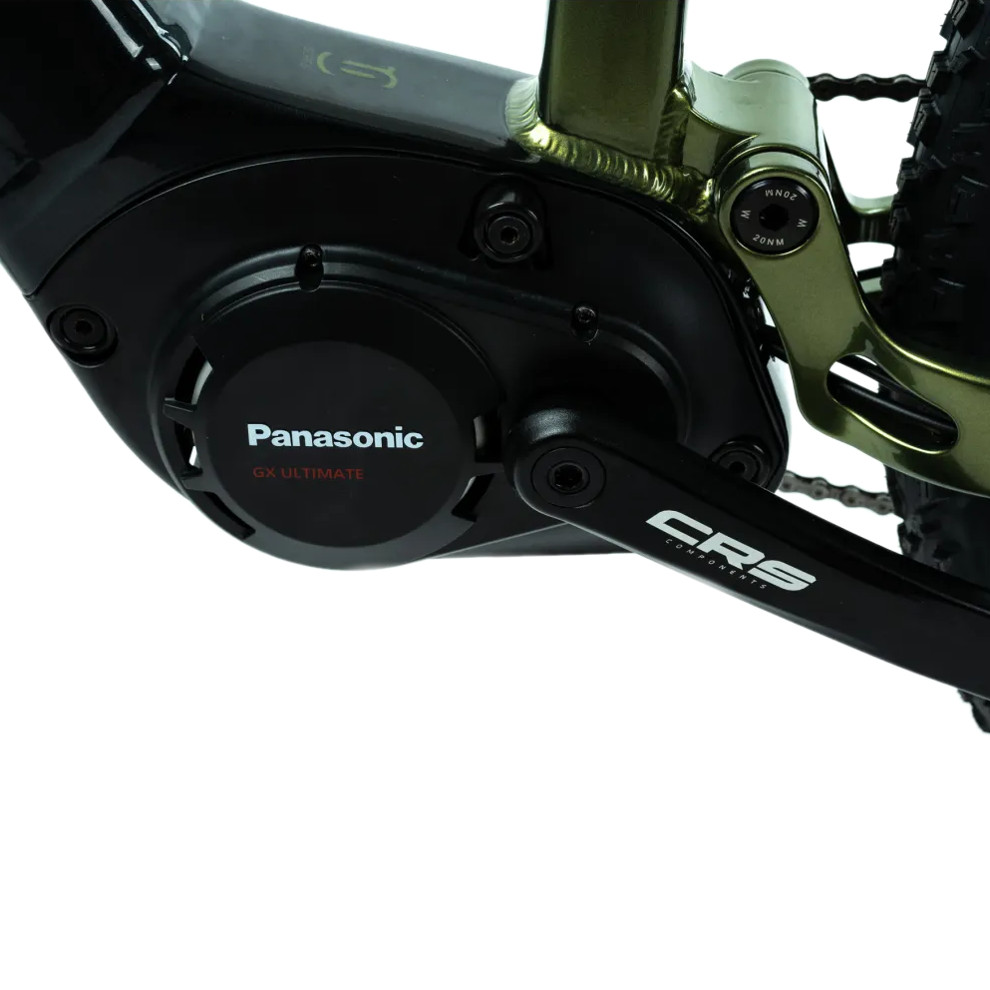

Powerful PANASONIC Drive
The PANASONIC GX Ultimate is a sturdy, extremely powerful drive that can deal even with the most challenging uphill rides. Ideal for mountain bikes, he drive offers a torque of 95 Nm, features a torsional pedaling force sensor, and weighs only 2.95 kg.

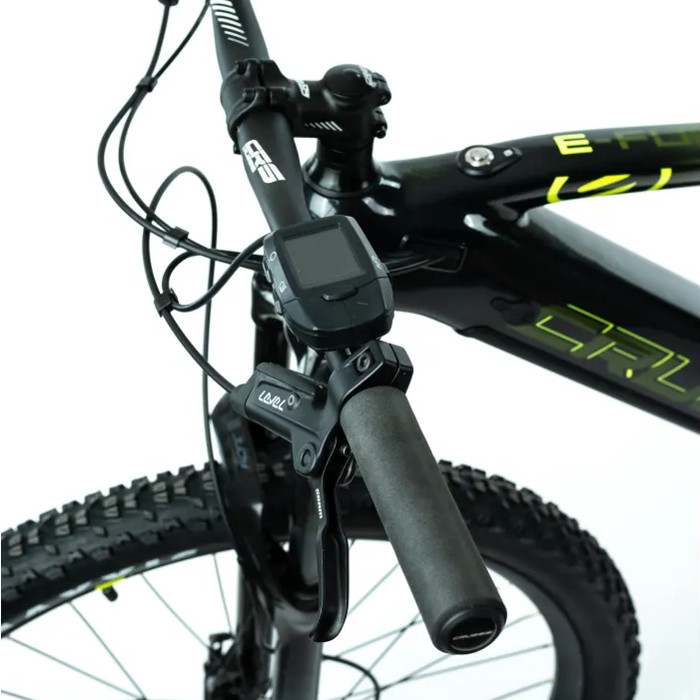

Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Apart from the three main assistance modes (HIGH, STANDARD and ECO), the bike also offers a dynamic AUTO mode, which adjusts the level of assistance to the initial torque of the rider. On the LCD screen, there’s also a USB port which allows you to charge your mobile device.
Air Suspension

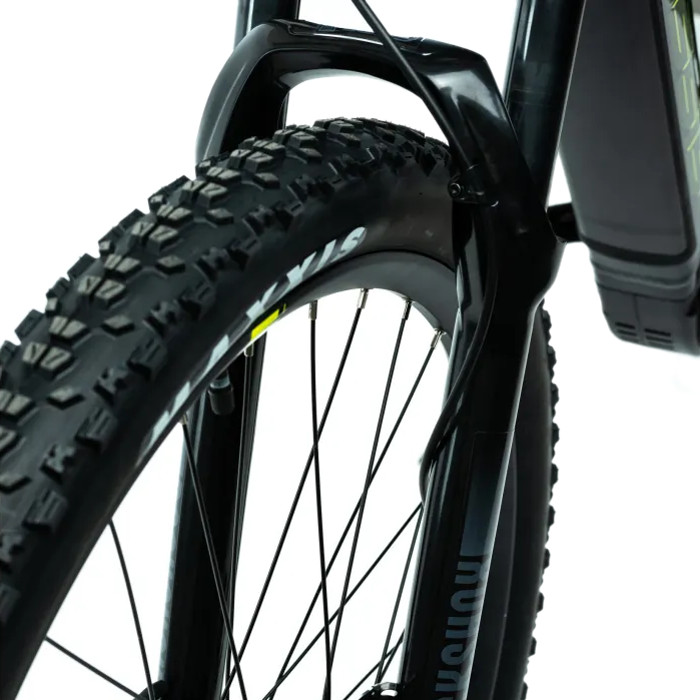

This e-bike features a ROCKSHOX FS Judy Silver TK Solo Air 29" BOOST air suspension fork with 120mm travel, which adjusts to the user’s weight. All you have to do is adjust air pressure in the fork and the e-bike will adjust to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the handlebars.

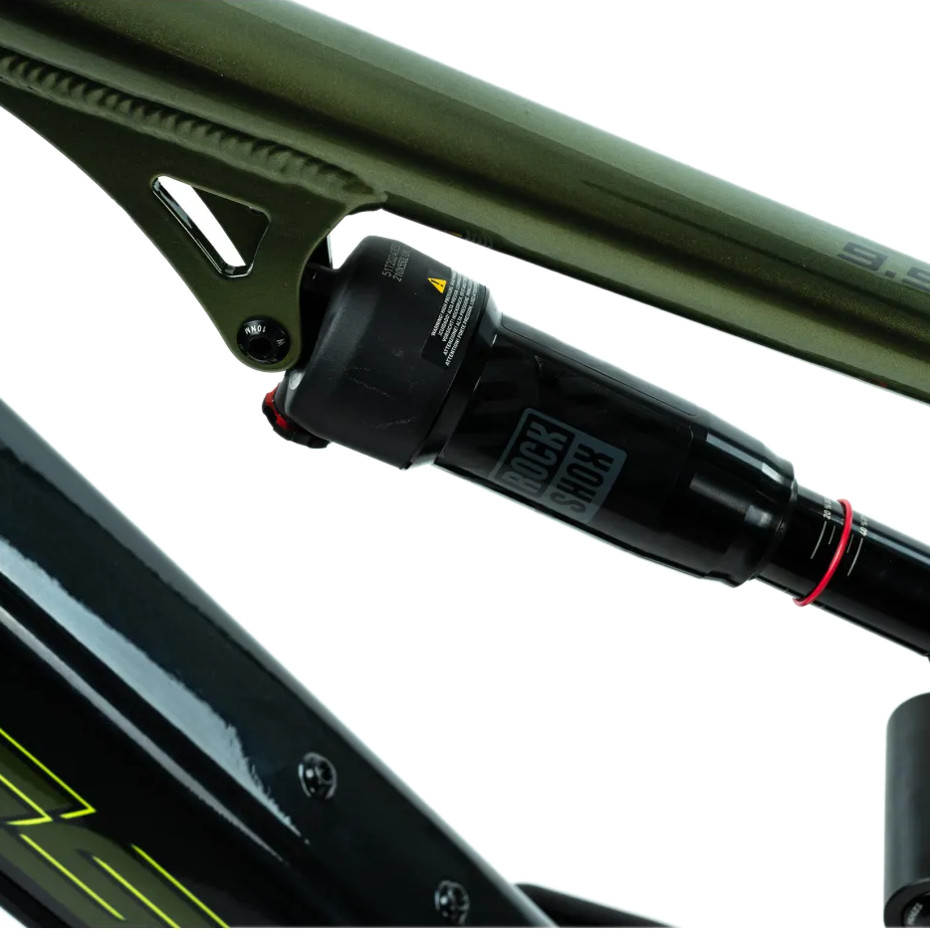

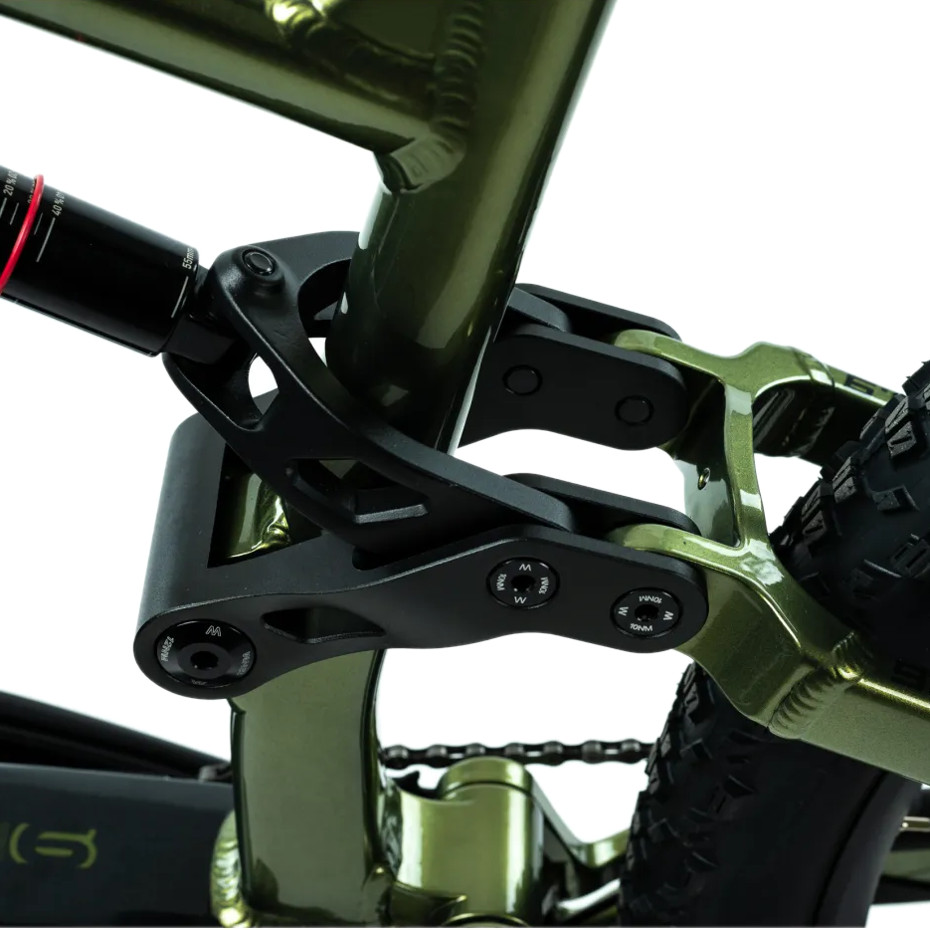

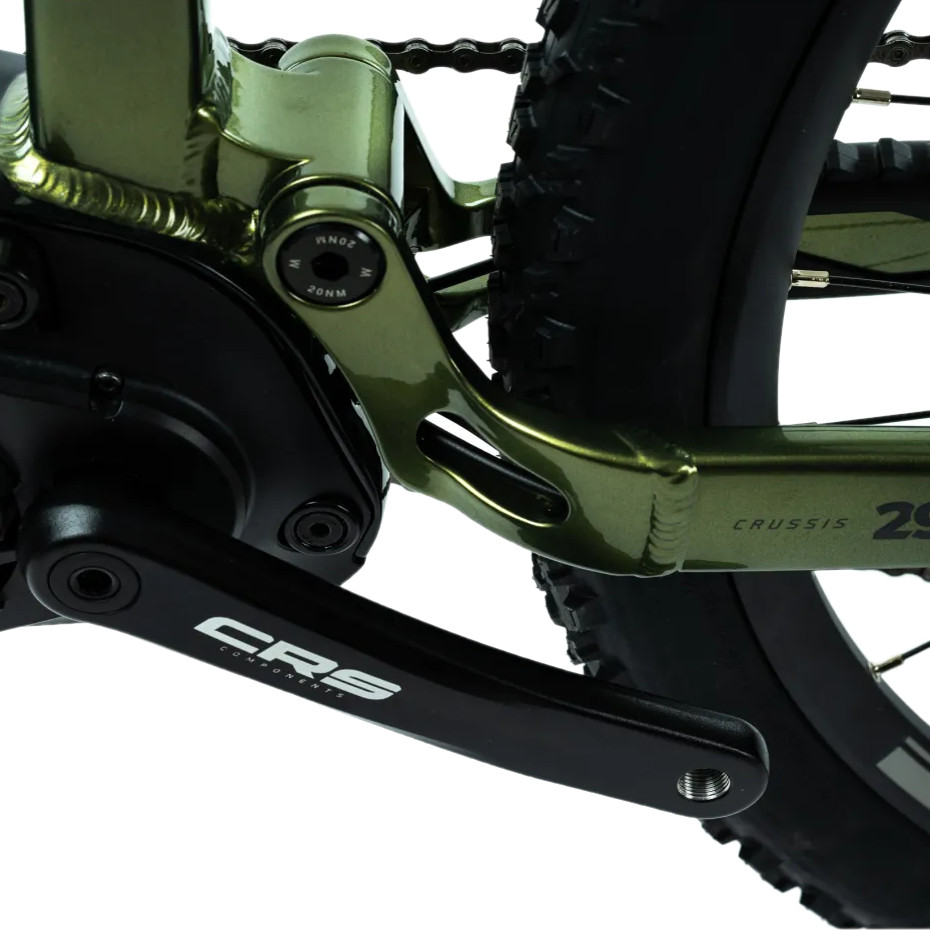

Then there’s the ROCKSHOX Deluxe Select R, 210x55mm rear shock absorber, which allows you to easily adjust the e-bike to your weight by adjusting the air pressure in the fork. The DebonAir+ system allows the rider to determine precisely how their air spring will feel by optimizing a frame’s leverage rate to make the curve at the rear wheel as linear as possible (Rebound).
Ultra-Powerful Battery

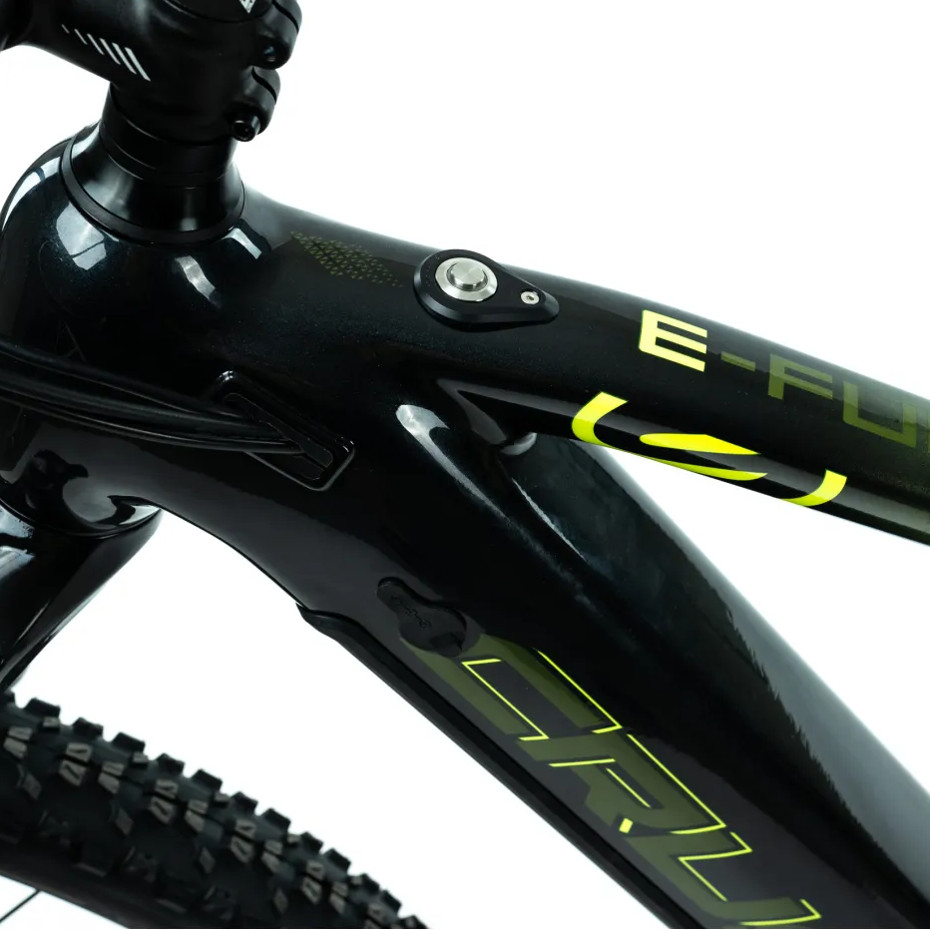

The LG Li-ion 36V/20 Ah (720 Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 170 km on a single charge (depending on the trail profile).
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.
Our tips:
- Don't know what bike type and size to choose? Find out more in our guide.
- Don't know how to choose an e-bike? Find out more in another of our guides.
- Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.
Technical description:
|
Frame |
Alu 6061 (17”, 19”, 21“) |
|
Motor |
PANASONIC GX Ultimate, 250W (MAX 500W) 95 Nm |
|
Battery |
LG Li-Ion (720 Wh / 20 Ah) – removable – can be charged separately |
|
Charger |
4A quick charger |
|
Distance range |
Up to 170 km |
|
Rear derailleur |
SRAM SX Eagle |
|
Gear shifter |
SRAM SX Eagle |
|
Chain |
SRAM Eagle SX 12s |
|
Number of speeds |
1 x 12 |
|
Cassette |
SRAM CS-PG1210 Eagle, 11-50z |
|
Fork |
ROCKSHOX FS Judy Silver TK Solo Air 29" BOOST, 120 mm, lockout |
|
Rear shock absorber |
ROCKSHOX Deluxe Select R, 210x55mm; lockout |
|

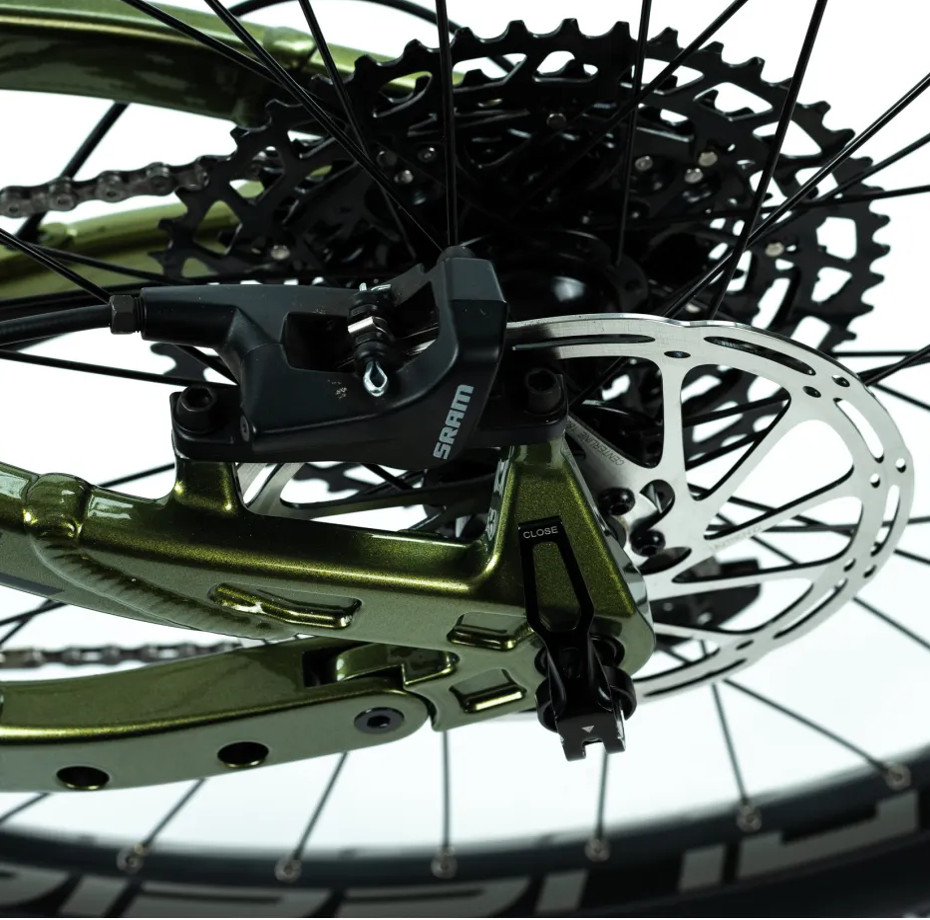

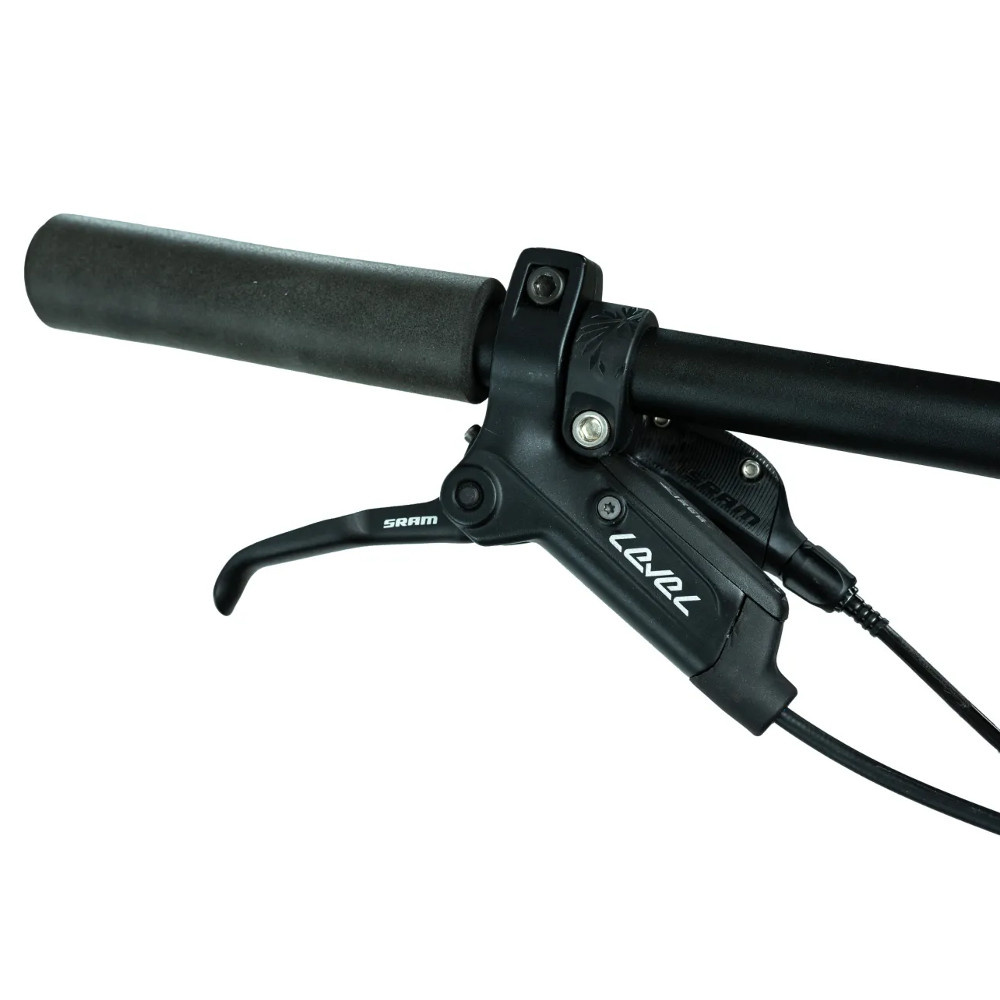

Brakes |
Hydraulic SRAM Level, rotor 200/180 (front/rear) |
|
Control panel |
PANASONIC color LCD panel |
|

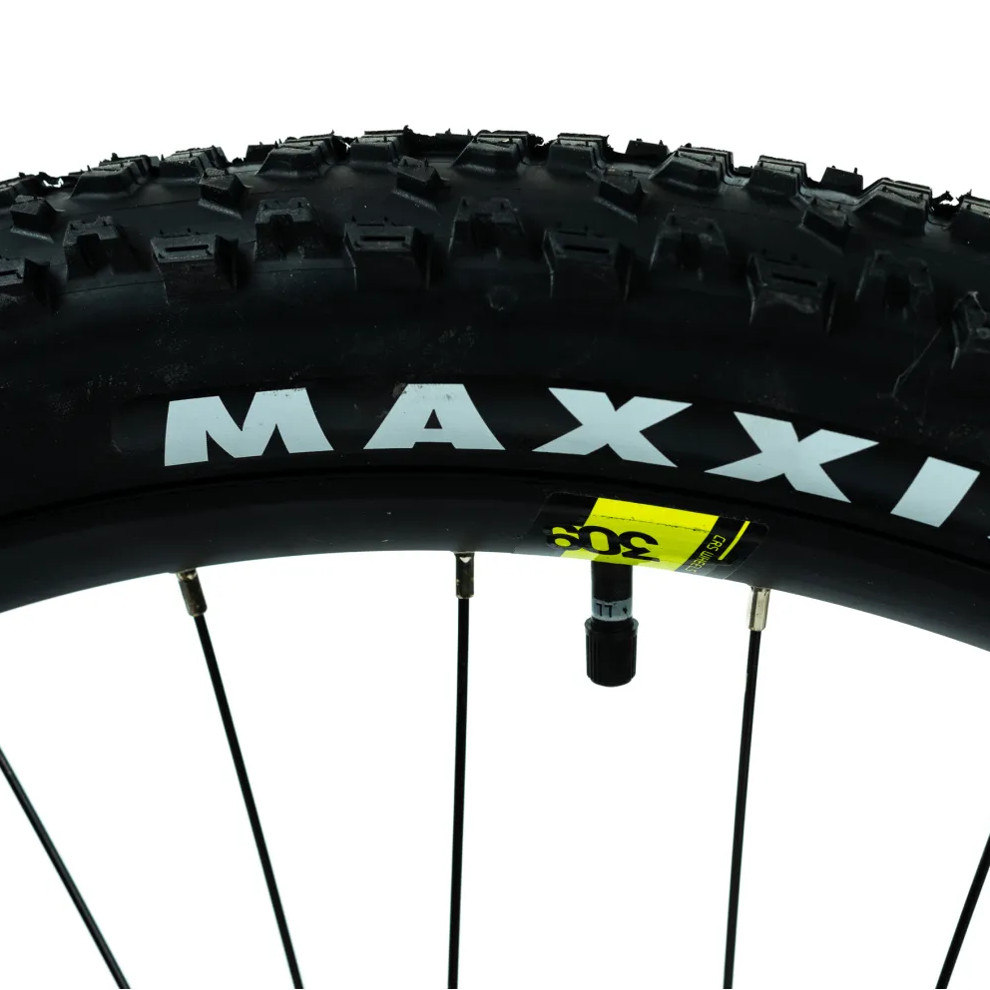

Tires |
MAXXIS Rekon Race 29*2.40 |
|
Valve |
AV |
|

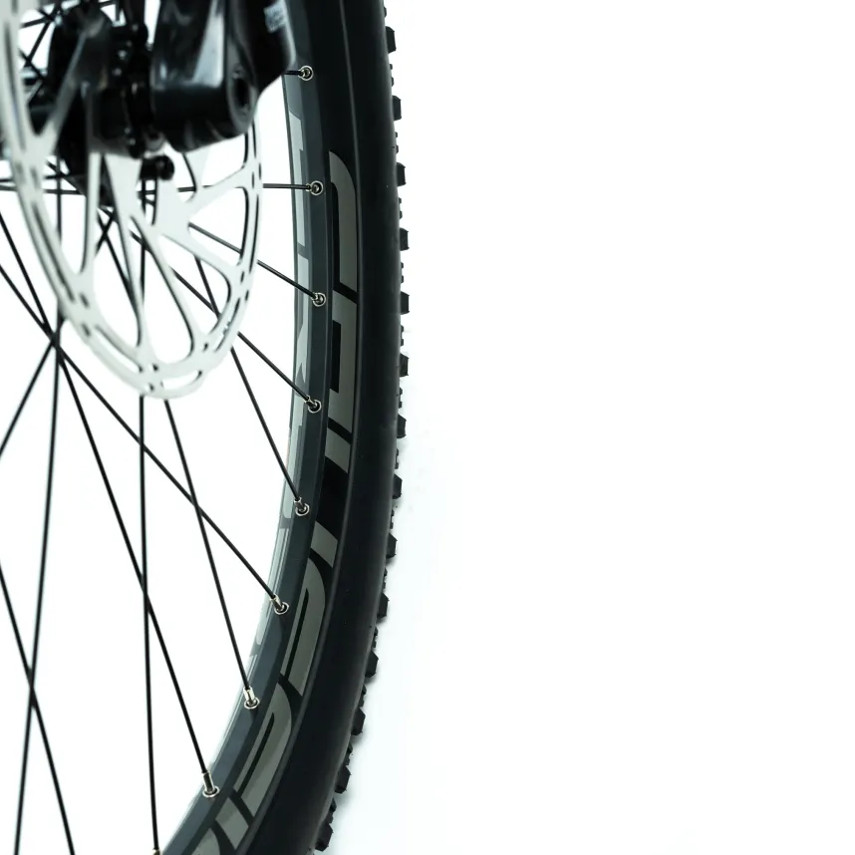

Rims |
CRUSSIS 29", double-walled, lined, 25 mm |
|

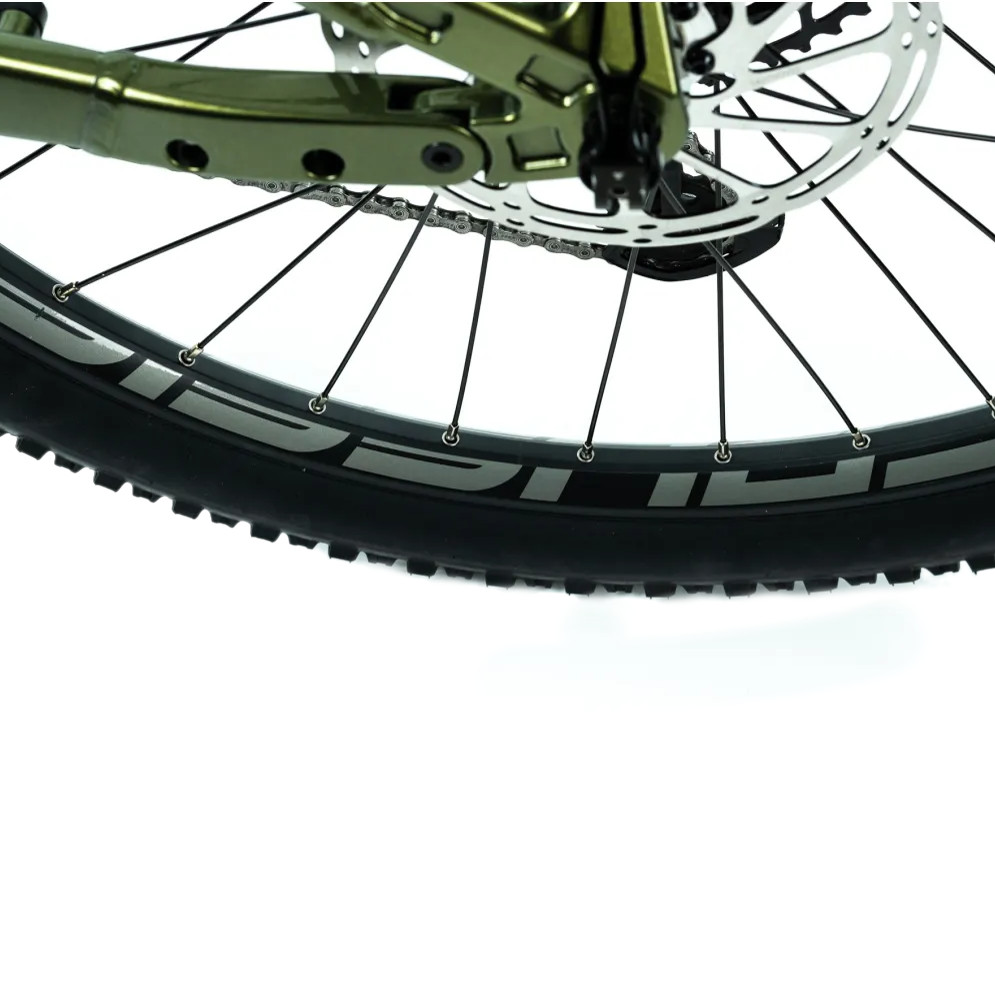

Hubs |
CRUSSIS disc, industrial bearings, 32D, BOOST, fixed axle, 15x110 mm/12x148 mm (front/rear) |
|
Headset |
Tappered 1.5" |
|

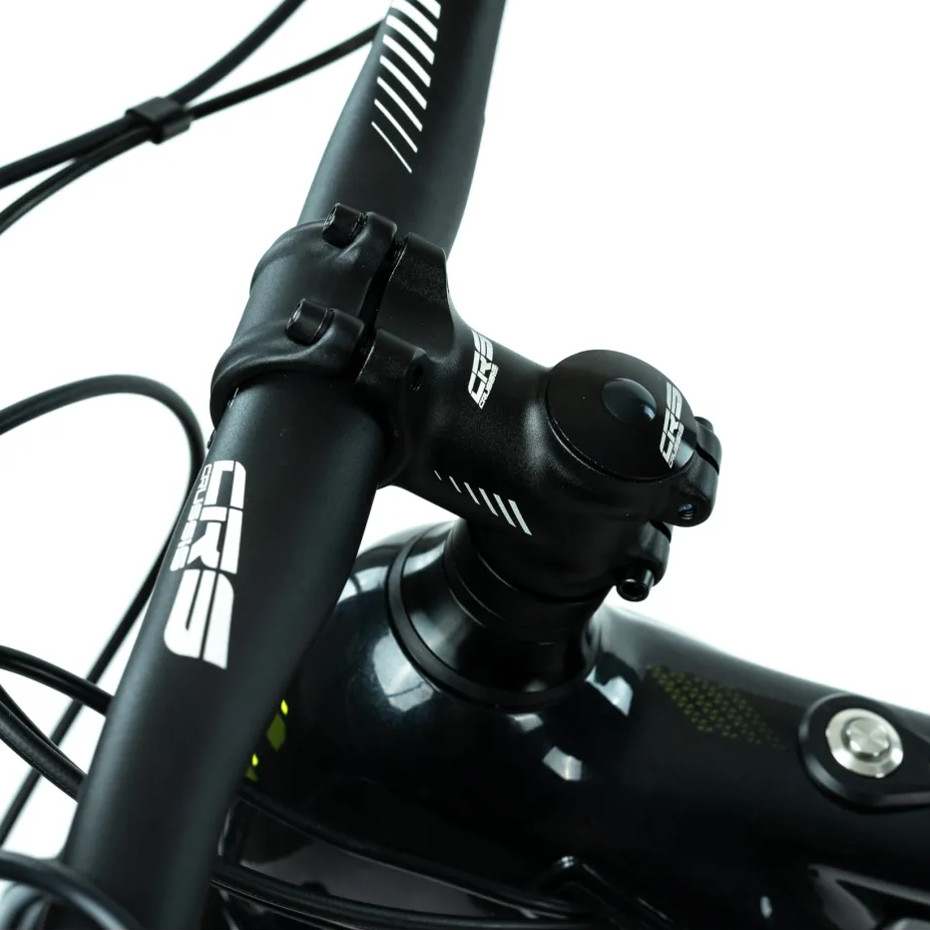

Stem |
CRUSSIS Al, 60 mm, 7° |
|

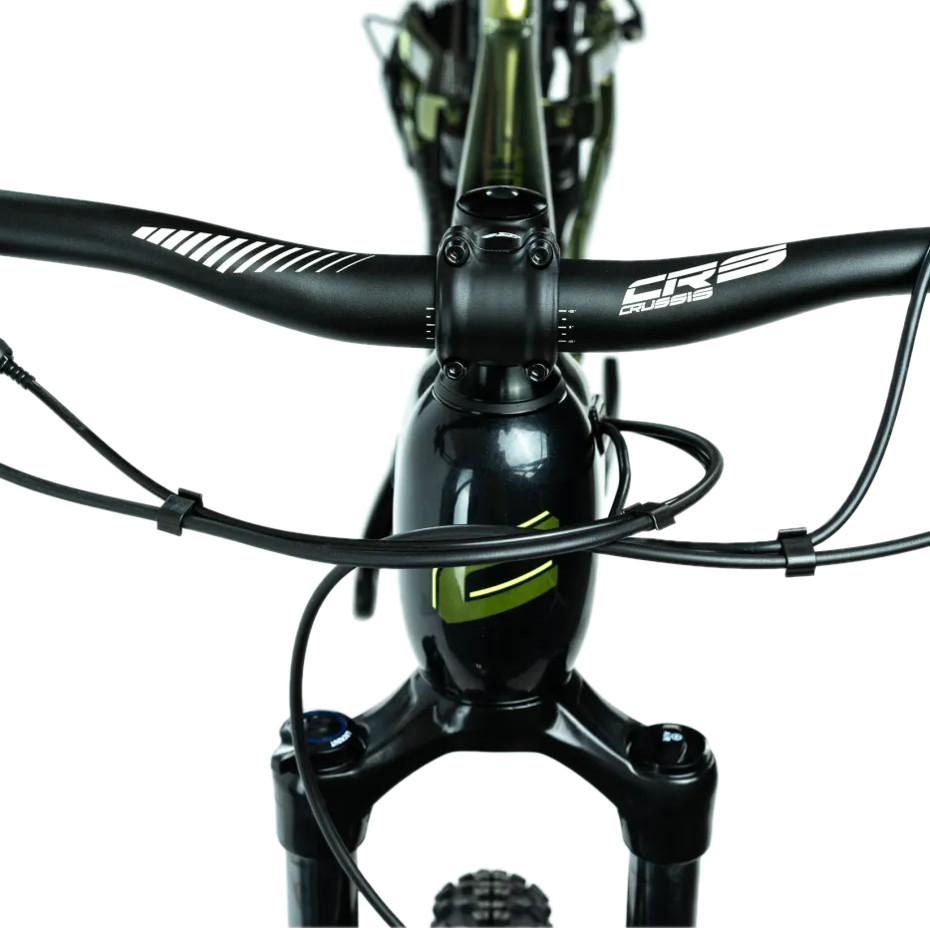

Handlebars |
CRUSSIS Al, 780 mm |
|
Grips |
CRUSSIS silicone |
|
Pedals |
WELLGO, alu w/ reflector |
|
Seatpost |
CRUSSIS w/ lock, 30.9 / 350 or 400 mm |
|

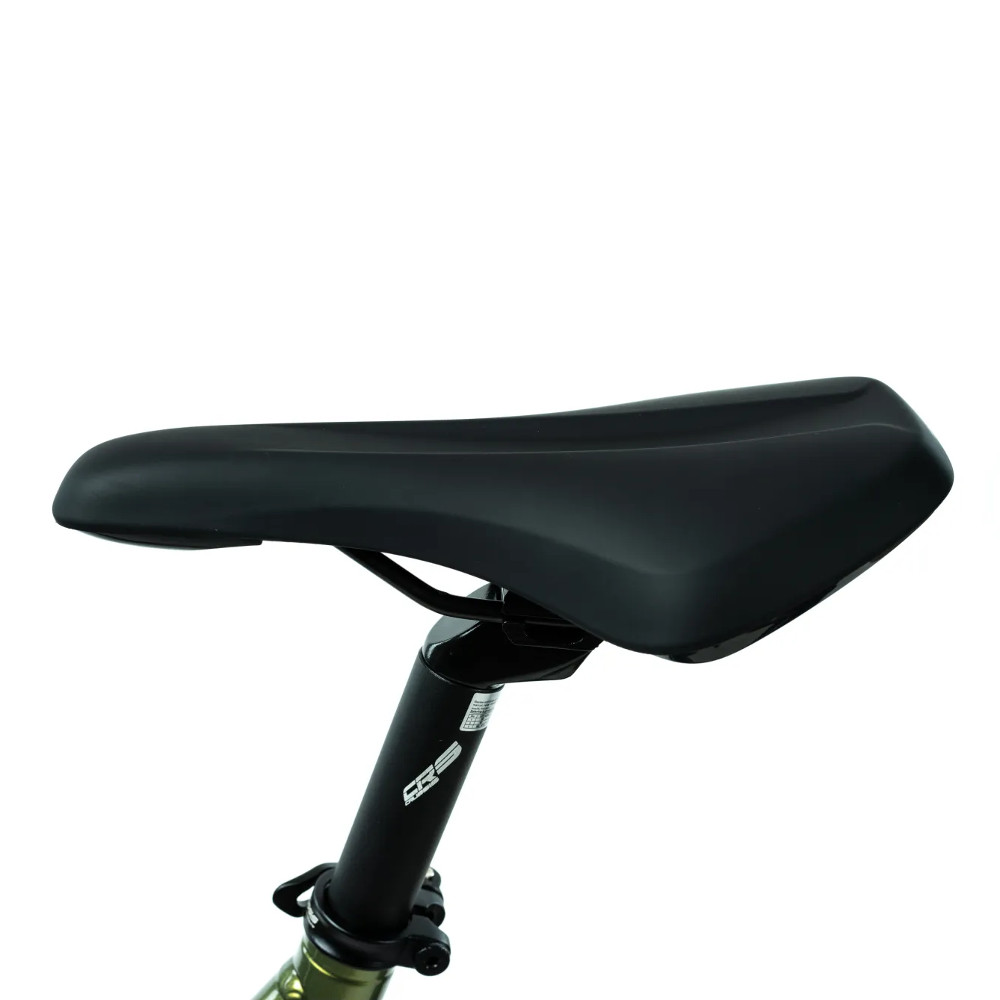

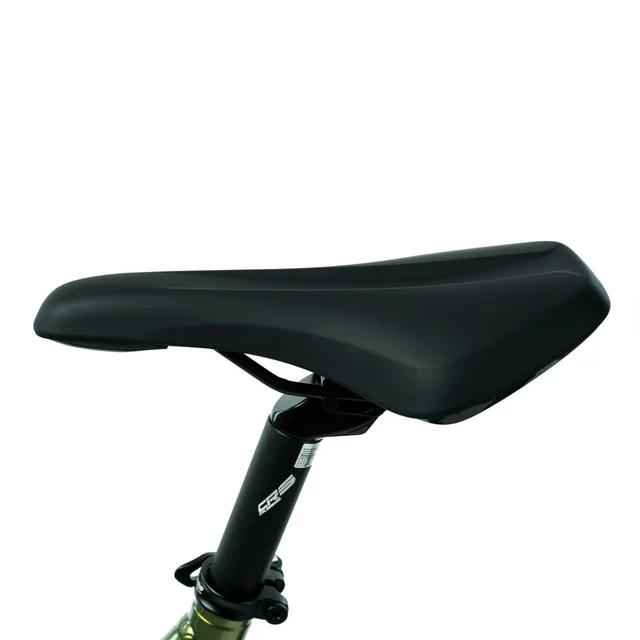

Seat |
Selle ROYAL |
|
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
|
Weight limit |
120 kg |
CRUSSIS e-bike size chart 2022/2023
| Frame size | Rider height |
| 14″ | 135-155 cm |
| 15″ | 150-165 cm |
| 16″ | 155-170 cm |
| 17″ | 160-175 cm |
| 18″ | 165-180 cm |
| 19″ | 170-185 cm |
| 20″ | 175-190 cm |
| 21″ | 180-195 cm |
| 22″ | 185-200+ cm |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
Full-Suspension Mountain E-Bike Crussis e-Full 9.9-M – 2024 - Product parameters
12" (for users 90 - 110 cm tall)
14" (for users 95 - 115 cm tall)
16" (for users 100 - 125 cm tall)
18" (for users 105 - 125 cm tall)
20" (for users 105 - 135 cm tall)
24" (for users 115 - 155 cm tall)
26" (for users over 155 cm tall)
27,5" (for users over 155 cm tall)
28" (for users over 155 cm tall)
29" (for users over 155 cm tall)
Generally speaking, the more the better. Mountain and cross bikes should have at least 24 speeds (road bikes should have at least 18).
The main part of a bike. Other parts and components are affixed to it. It has a shape of an uneven pentagon, but the main load-bearing part is made up of an uneven quadrangle with an adhering triangle at the rear (unless the bike has rear fork suspension).
Brakes are an essential part of a bike. The two most common types are disc brakes and V-brakes. Disc brakes are more effective, but need to be maintained more often, while V-brakes are easy to maintain and last longer. Other braking systems include drum brakes or a coaster brake (in children's bikes).
Suspension travel makes your rides more comfortable.
Serves to attach the front wheel and brake.
Brakes are an essential part of a bike. The two most common types are disc brakes and V-brakes. Disc brakes are more effective, but harder to maintain. On the other hand, V-brakes' maintenance is easier and they will last longer. ther braking systes include drum brakes or a coaster brake (children's bikes).
Brakes are an essential part of every bike. The two most common types are disc brakes and V-brakes. Disc brakes are more effective, but harder to maintain. V-brakes are on the other hand easier to maintain and last longer. Other braking systems include drum brakes or a coaster brake (on children's bikes).
Hubs are placed in the centre of the wheels. A hub is made up of bearings, cups and nuts and is attached to the bottom bracket that connects the wheel with the fork.
Hubs make up the centre of the wheels. A hub is made up of bearings, cups and nuts affixed to the bottom bracket whichs serves to attach a wheel to the fork.
Tires serve to protect the tube inside and they optimize the riding attributes of your bike, both on the road and in terrain. Mountain bike tires are wide and have a complex pattern that allows for movement on difficult terrain. Road bike tires, on the other hand, have a shallow pattern and are thin and smooth.
Tires serve as a protection of the inner tube and optimalize the riding qualities of a bike in terrain and on the road. Mountain bike tires are wide and have complex patterns, allowing for riding through hard terrain. Road bikes on the other hand have thin and smooth tires with only a shallow pattern.
Levers or grip shifters change the revolving ratio in the relation of the front sprocket wheel (crankset) and the rear sprocket wheel (cassette) with the help of the front and rear derailleur.
We come across lever shifts most often, since they usually also feature a precise indicator. Children’s and junior bikes often feature user-friendly grip shifts that don’t need a lot of strength. They are basically a part of the handlebar grips. Different levers are used on road bikes with bullhorn handlebars where they are part of the brake levers and the rider shifts gears by pushing the lever sideways.
Gear shifting on the rear wheel.
Plates and one to three sprocket wheels transfering the pedal movement onto the chain.
On modern bikes, sprocket wheels on the rear wheel are affixed to a cassette. Along with the front derailleur, they add more gears and the rider can choose the optimal speed/pedalling ratio. Cassettes can be taken apart and the sprocket wheels exchanged for others (new or with different number of sprockets).
The chain transfers the pedalling force into the rear wheel. it connects the cassette on the bottom bracket and the cassette on the rear wheel. It needs to be lubricated often.
A metal circle with a U-shaped profile. It creates space for the inner tube and tire. Bikes designed for professional use and therefore more demanding riding style have double-walled rims. Such rims provide higher durability and better safety. Rims for regular bikes are usually made of dural, rims for special bikes can be made of special alloys or composites.
A metal circle with a U-shaped profile. It creates space for the inner tube and tire. Bikes designed for professional use and therefore more demanding riding style have double-walled rims. Such rims provide higher durability and better safety. Rims for regular bikes are usually made of dural, rims for special bikes can be made of special alloys or composites.
They transfer the power generatted by your legs into the pedalling mechanism.
Metal part connecting the pedal to the centre.
Handlebars are connected to the stem and they help steer the bike. They carry braking elvers, gear shifters, grips and accessories, such as a cycling computer, a bell, a map and many others. They come in different shapes, i.e. riser bars, bullhorns or drop bars.
Cover both ends of the handlebar. Their function is to ensure that the handlebar doesn't slip and that it is comfortable to hold.
Connects the front fork with the handlebars. Some types are adjustable.
A system of bearings and "cups" that allow you to steer the handlebars and to safely direct the front wheel.
The sitting part of a bike. It is attached to the seat post which allows you to adjust the saddle's height.
Tube that connects the frame with the saddle. It's length is adjustable to accomodate users of different heights. These days, it is affixed to the frame with a quick-release mechanism. In the past, a nut and a screw were used.
By observing the weight limit of the product, you significantly increase its service life and prevent it from wearing down prematurely. It is not recommended to exceed this limit.
