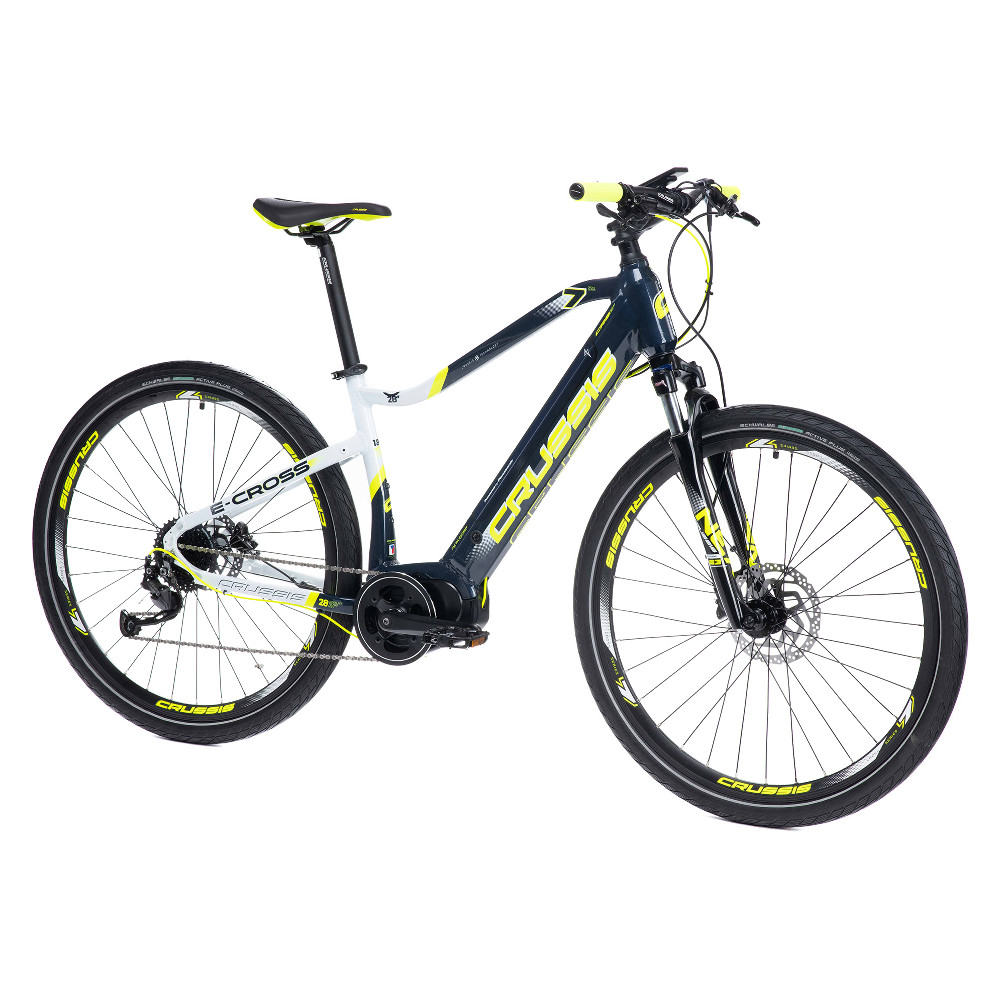

Cross E-Bike Crussis e-Cross 7.6-M – 2021

Reliable cross e-bike with high-capacity, 20Ah battery that offers a range of up to 170 km! Enjoy its hydraulic brakes, powerful drive and top-class features. more


Frame size:

2 015,60 €

incl. VAT

Share Watchdog

Your order includes

  • 2-year warranty

Recommended accessories

Description

Are you looking for a bike for a sporty ride and longer trips on moderate terrain? Then look no further! The Cross E-Bike Crussis e-Cross 7.6-M – 2021 is just what you are looking for! The center drive and fully-integrated, high-capacity battery make the bike perfectly balanced and easy to control. Depending on the trail profile, the 20Ah battery allows for a range of up to 170 km.

This e-bike features 28” wheels and comes in two frame sizes – 18” and 20”. The hydraulic disc brakes while the Suntour NEX HLO spring suspension fork provides maximum comfort. On the LCD display, you can choose of one the bike’s 5 assistance modes. You may also appreciate the USB port which allows you to charge your mobile devices.With the Cross E-Bike Crussis e-Cross 7.6-M – 2021, no bike trail will be a problem for you!


Adjustable Fork

The Cross E-Bike Crussis e-Cross 7.6-M – 2021 features a SUNTOUR NEX HLO DS 700c spring suspension fork with 63mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the handlebars.



High-Capacity Battery

The Panasonic 36V/20Ah (720Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (together with the center drive) well-balanced. The battery allows for a distance range of up to 170 km on a single charge (depending on the trail profile). Moreover, the battery features a BMS (Battery Management System) board, which prevents it from overheating, short-circuit and overcharging.



Ultra Powerful Drive

The Bafang Max Drive with an 80Nm torque features a torsional pedaling force sensor which makes sure that the more you pedal, the more the engine will assist you.

Apart from battery status and current assistance mode, the easy-to-read LCD color display also shows speed and distance covered. Moreover, the display also features a USB port, which allows you to charge your mobile devices (e.g. phone, navigation, lights).


Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.


E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.


Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

Alu 6061 (18", 20")

Motor

BAFANG MAX drive 250W / 500W*, center, 80 Nm

Battery

Samsung Li-ion 36 V/20 Ah (720 Wh), removable - can be recharged detached

Charger

4 Ah

Distance range

Up to 170 km

Rear derailleur

SHIMANO Alivio RD-M3100-SGS / SRAM X5**

Gear shifter

SHIMANO Alivio SL-M3100 / SRAM X5**

Number of speeds

1 x 9

Cassette

SHIMANO CS-HG200-9, 11-36 teeth / SRAM PG-920, 9 speeds, 11-35**

Fork

SUNTOUR NEX HLO DS 700c, 63 mm travel, lockout

Brakes

Hydraulic SHIMANO BR-MT200, rotor 180 mm/160 mm (front/rear) / SRAM Level**

Control panel

LCD panel, 5 assistance modes + walking assistance (color display)

Tires

SCHWALBE Energizer Active Plus 28*2.00

Valve

AV (car valve)

Rims

CRUSSIS 28", double-walled, lined, 19 mm

Hubs

CRUSSIS disc, wreath bearing, 32D

Headset

Semi 11/8

Stem

CRUSSIS Al, 105 mm

Handlebars

CRUSSIS Al, 700 mm

Grips

CRUSSIS 100% silicone

Pedals

WELLGO, alu w/ reflector

Seatpost

CRUSSIS w/ lock, 31.6 / 350 mm

Seat

Selle ROYAL

Weight

There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store.

Weight limit

120 kg

* The standard motor power is 250W. However, if necessary (e.g. during an uphill ride), it can be twice as much (500W) for a short interval.


** Due to the lack of components on the market, in the second phase of production (from mid-February 2021), the Shimano mounting was replaced by the SRAM mounting at a comparable performance level for the models  5.6 and 7.6 .



Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!


CRUSSIS e-bike chart size

Frame sizeHeight of user
14″ 135-155 cm
17″ 155-175 cm
18″ 160-180 cm
19″ 165-185 cm
20″ 170-190 cm
21″ 175-195 cm
22″ 180-200+ cm

Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.


Video


Product parameters

Motor Bafang MAX Drive, (central drive)
Battery 20 Ah/720 Wh, Samsung Li-Ion 36V, (max. range 170 km)
Wheel size 28
Number of speeds 9
Program types 5 programs
Range 170 km
Motor output 250 W
Display LCD, colour, Bafang
Frame material Aluminium
Brakes Hydraulic
Frame Alu 6061
Drive Central
Suspension fork yes
Fork SUNTOUR NEX HLO DS 700c, 63 mm
Rear Brake Shimano BR-MT200 Hydraulic Disc
Front Brake Shimano BR-MT200 Hydraulic Disc
Rear hub CRUSSIS disc, ball bearing, 32D
Front Hub CRUSSIS disc, ball bearing, 32D
Rear tire SCHWALBE Energizer Active Plus 28*2.00
Front Tire SCHWALBE Energizer Active Plus 28*2.00
Gear shifting SHIMANO Alivio SL-M3100
Gear shifting type lever
Rear Derailleur SHIMANO Alivio RD-M3100-SGS
Crank Set Bafang 38T
Cassette SHIMANO HG200 9s 11-36T
Chain KMC X9
Front Rim CRUSSIS 28", double-wall, sleeved, 19 mm
Rear rim CRUSSIS 28", double-wall, sleeved, 19 mm
Pedals WELLGO
Crankset 170 mm
Handlebar grip CRUSSIS Al, 700 mm
Grips CRUSSIS silicone
Handlebar stem CRUSSIS Al, 105 mm, adjustable
Saddle Selle Royal
Seat post CRUSSIS with a lock, 31.6 / 350 mm
Type of e-bike Cross
Drive Bafang
Weight limit (kg) 120 kg
Year 2021
