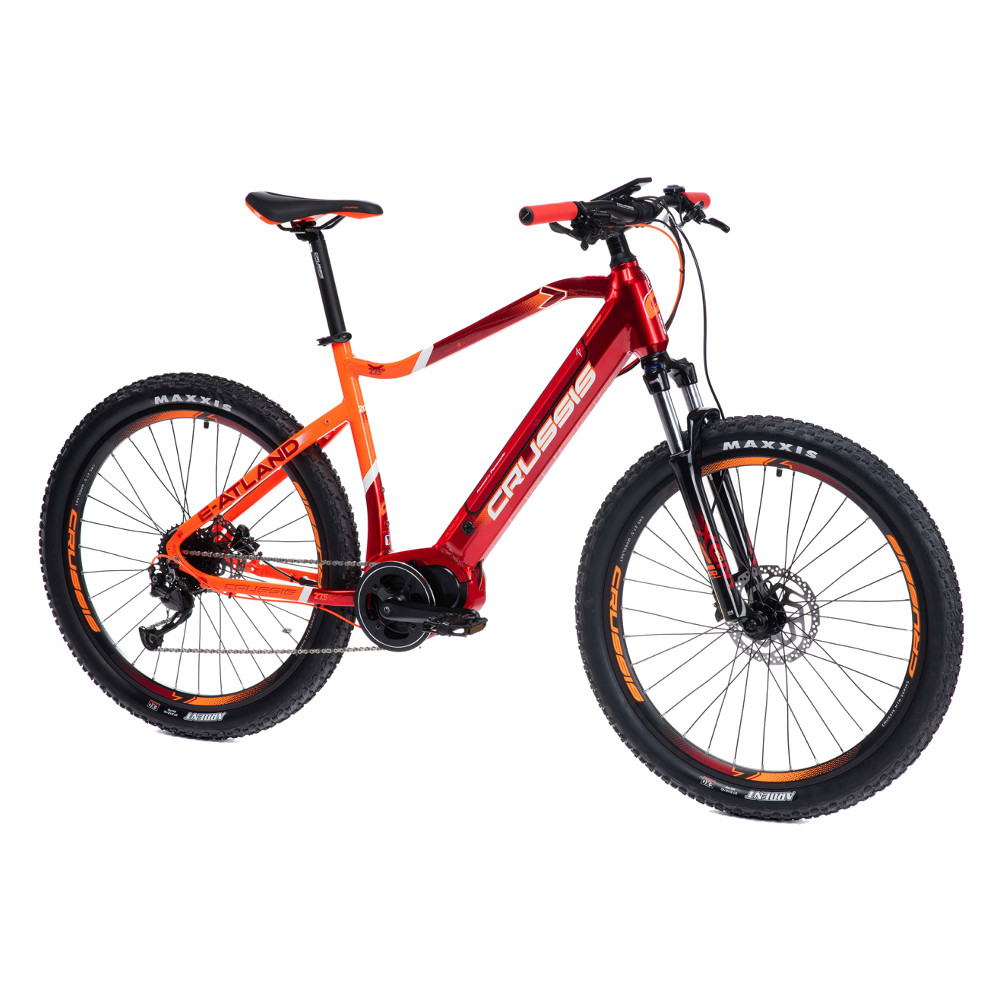

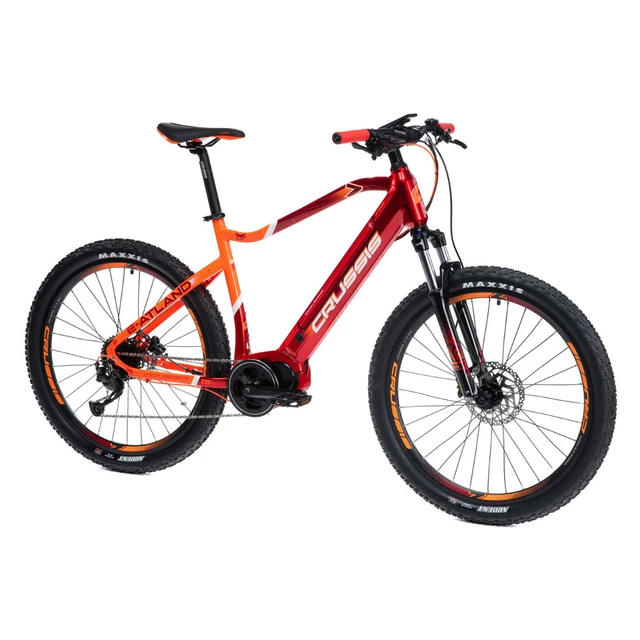

Mountain E-Bike Crussis e-Atland 7.6-L – 2021 SPECIAL OFFER

Top-class men’s MTB e-bike with 27.5” wheels and ultra-powerful 25Ah battery that offers an incredible distance range of up to 200 km! This bike is well balanced and features hydraulic brakes and adjustable fork. more


Frame size:

1 965,20 €

2 183,60 € incl. VAT

-10%

You will save 218,40 €

Share Watchdog

Your order includes

  • 2-year warranty

Recommended accessories

Description

Designed for terrain riding as well as roads and bike trails, the Mountain E-Bike Crussis e-Atland 7.6-L – 2021 is a powerful men’s e-bike that will take you to places you otherwise would not dare to go. The high-capacity, 25Ah battery allows for a range of up to 200 km (depending on the trail profile). The frame geometry makes the bike easy to control while the fully integrated battery and center drive make it perfectly balanced.

The high-quality Maxxis Ardent tires on the 27.5” wheels provide excellent adhesion on all surfaces. The hydraulic disc brakes and Suntour XCM HLO DS fork allow for a safe and comfortable ride. You can choose from 5 assistance modes on the LCD display, where there is also a USB port which allows you to charge your mobile device. The Mountain E-Bike Crussis e-Atland 7.6-L – 2021 is a pleasure to ride.


Adjustable Fork

The Mountain E-Bike Crussis e-Atland 7.6-L – 2021 features a SUNTOUR XCM HLO DS 27.5” spring suspension fork with 100mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked from the handlebars.



High-Capacity Battery

The Panasonic 36V/25Ah (900Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (together with the center drive) well-balanced. The battery allows for a distance range of up to 200 km on a single charge (depending on the trail profile). Moreover, the battery features a BMS (Battery Management System) board, which prevents it from overheating, short-circuit and overcharging.



Ultra Powerful Drive

The Bafang Max drive with an 80Nm torque features a torsional pedaling force sensor which makes sure that the more you pedal, the more the engine will assist you.

Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Moreover, the display also features a USB port, which allows you to charge your mobile devices (e.g. phone, navigation, lights).


Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.


E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.


Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

Alu 6061 (18“, 20“)

Motor

BAFANG MAX drive, center, 250W (max 500W), 80 Nm

Battery

SAMSUNG Li-Ion 36V / 900 Wh (25 Ah), removable - can be recharged detached

Charger

4 Ah

Distance range

Up to 200 km

Rear derailleur

SHIMANO Alivio RD-M3100-SGS / SRAM X5**

Gear shifter

SHIMANO Alivio SL-M3100 / SRAM X5**

Chain

KMC X9

Number of speeds

1 x 9

Cassette

SHIMANO CS-HG200-9, 11-36 teeth / SRAM PG-920, 9 speeds, 11-34**

Fork

SUNTOUR XCM HLO DS 27.5", 100 mm travel, lockout

Brakes

Hydraulic SHIMANO BR-MT200, rotor 180/160 mm (front/rear) / SRAM Level**

Control panel

LCD panel w/ USB port, 5 assistance modes (color display)

Tires

MAXXIS Ardent 27.5*2.40

Valve

AV (car valve)

Rims

CRUSSIS 27.5", double-walled, lined, 25 mm

Hubs

CRUSSIS disc, wreath bearing, 32D

Headset

Semi 11/8

Stem

CRUSSIS Al, 60 mm, fixed

Handlebars

CRUSSIS Al, 740 mm

Grips

CRUSSIS 100% silicone

Pedals

WELLGO, alu w/ reflector

Seatpost

CRUSSIS w/ lock, 31.6 / 350 mm

Seat

Selle ROYAL

Weight

There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store.

Weight limit

120 kg


** Due to the lack of components on the market, in the second phase of production (from mid-February 2021), the Shimano mounting was replaced by the SRAM mounting at a comparable performance level for the models  5.6 and 7.6 .



Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!


CRUSSIS e-bike chart size

Frame sizeHeight of user
14″ 135-155 cm
17″ 155-175 cm
18″ 160-180 cm
19″ 165-185 cm
20″ 170-190 cm
21″ 175-195 cm
22″ 180-200+ cm

Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.


Video


Product parameters

Motor Bafang MAX Drive, (central drive)
Battery 25 Ah/900 Ah, Samsung Li-Ion 36V, (max. range 200 km)
Wheel size 27.5" (for users over 155 cm)
Number of speeds 9
Full capacity charging time 9 h
Program types 5 programs
Range 200 km
Motor output 250 W
Display LCD, colour, Bafang
Frame Alu 6061
Frame material Aluminium
Brakes Hydraulic
Fork SUNTOUR XCM HLO DS 27.5", 100 mm
Drive Central
Suspension fork yes
Rear Brake Shimano BR-MT200 Hydraulic Disc
Front Brake Shimano BR-MT200 Hydraulic Disc
Rear hub CRUSSIS disc, ball bearing, 32D
Front Hub CRUSSIS disc, ball bearing, 32D
Rear tire MAXXIS Ardent 27.5 x 2.40
Front Tire MAXXIS Ardent 27.5 x 2.40
Gear shifting SHIMANO Alivio SL-M3100
Gear shifting type lever
Rear Derailleur SHIMANO Alivio RD-M3100-SGS
Crank Set Bafang 38T
Cassette SHIMANO HG200 9s 11-36T
Chain KMC X9
Front Rim CRUSSIS 27,5", double-wall, sleeved, 25mm
Rear rim CRUSSIS 27.5", double-wall, sleeved, 25mm
Pedals WELLGO
Crankset 170 mm
Handlebar grip CRUSSIS Al, 740 mm
Grips CRUSSIS silicone
Handlebar stem CRUSSIS Al, 60 mm, fixed
Saddle Selle Royal
Seat post CRUSSIS with a lock, 31.6 / 350 mm
Type of e-bike MTB
Drive Bafang
Weight limit (kg) 120 kg
Year 2021
