Full-suspension frame geometry, reliable lightweight Bafang drive, high-capacity battery, color display, Shimano components, air-suspension fork. more
Frame size:
Colour: Lime Black Pearl
Select a variant
2-year warranty

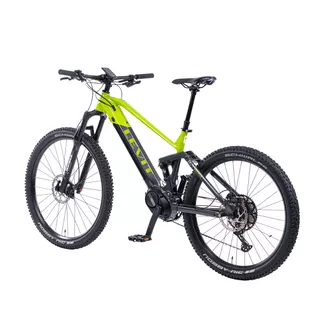

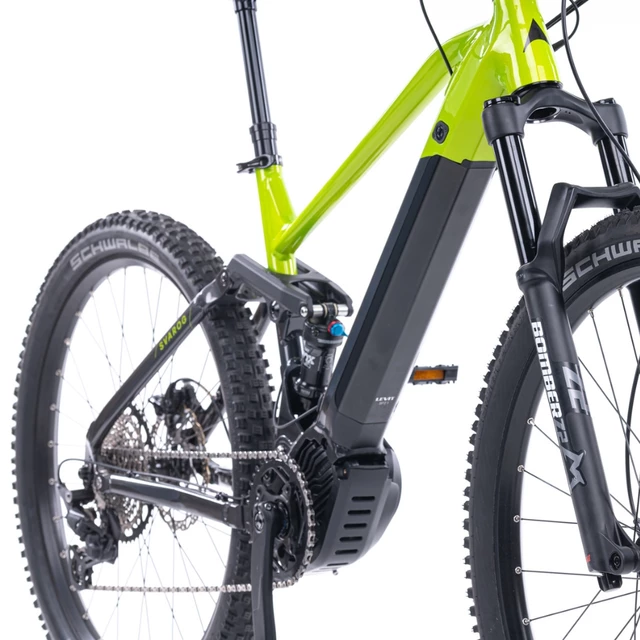

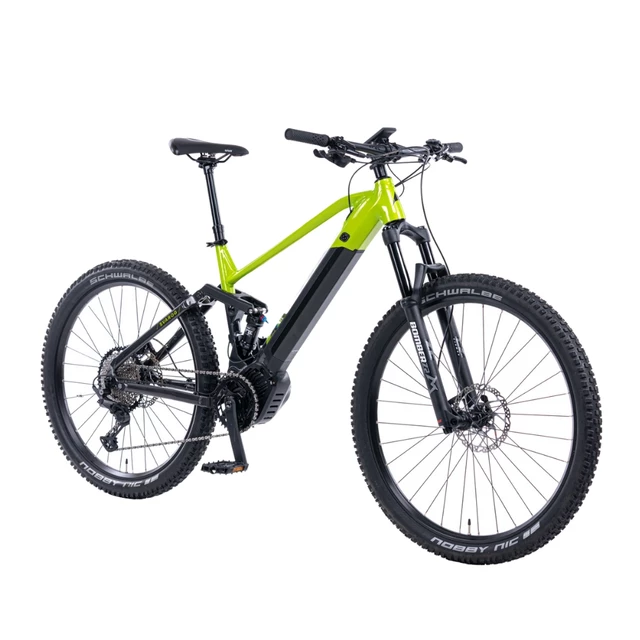

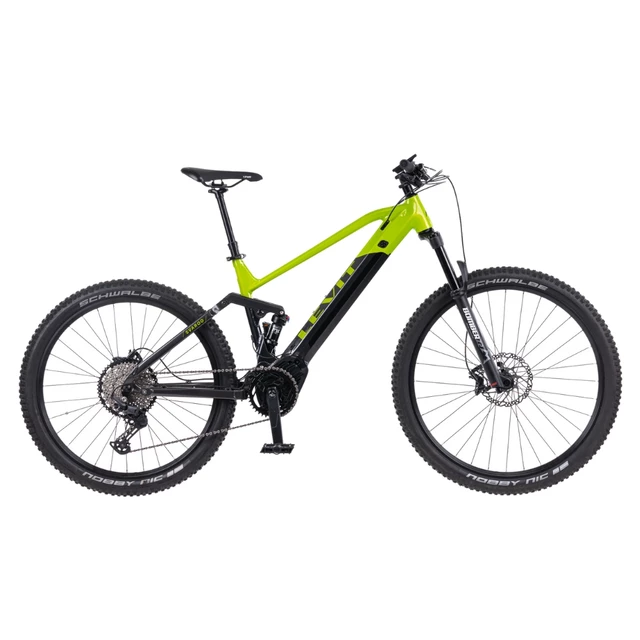

Are you looking for a companion that can withstand challenging mountain trails? Boasting large, 29- and 27.5-inch wheels, the Full-Suspension Mountain E-Bike Levit Svarog BF Overstep 630 can deal with any terrain. It’s the different size of wheels that ensures better traction and control, but, thanks to the enhanced shock absorption, also better comfort.

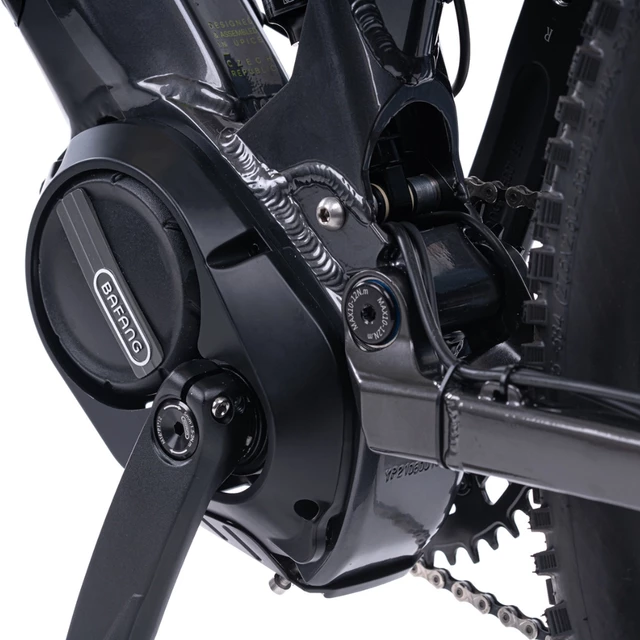

A drive designed specifically for mountain bikes that will not weigh you down? There is one! Weighing in at only 2.9 kg, the Bafang M510 drive with a rated power of 250 watts and a powerful torque of 95 Nm boasts an innovative design which not only offers a distance range of up to 150 km, but also improves the engine’s cadence and effectiveness, thus allowing you to ride on challenging trails with ease.
Providing comfort during your enduro and trail adventures will be a SR Suntour Zeron 35 Boost LOR air-suspension fork, which can adapt to challenging terrain. If you want to lock the fork out, you can do so using the control panel on the crown.

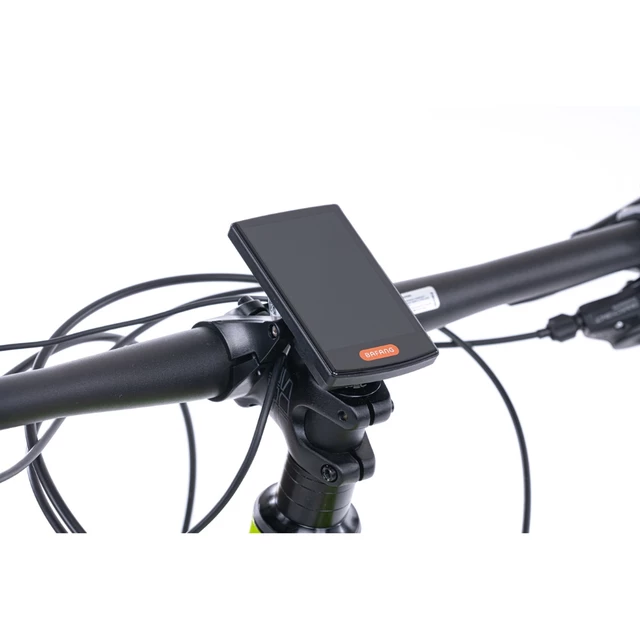

Made of a solid and durable material, the Bafang color display also features hardened glass, so you won’t have to worry about damaging it on challenging terrain. The display is extremely easy to use and offers a plethora of useful functions, the most important of which are battery status, speed and performance indicator. However, it also shows the current assistance mode or unit of speed. On the side of the display there’s a USB port, which allows you to recharge your phone during the ride.
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
Technical description:
Wheel size |
29"/27.5" |
Frame |
Alloy 6061 |
Frame size |
18.5 ", 20.5" - overstep |
Number of speeds |
1x10 |
Battery capacity |
630 Wh (17.5 Ah) |
Engine |
Bafang M510 |
Display |
Bafang C190 |
Fork |
SR Suntour Zeron 35 Boost LOR (air suspension, lockout from the crown) |
Fork travel |
130 mm |
Chainring |
Spec NW (170 mm, 38 threads) |
Rear derailleur |
Shimano Deore M5130 |

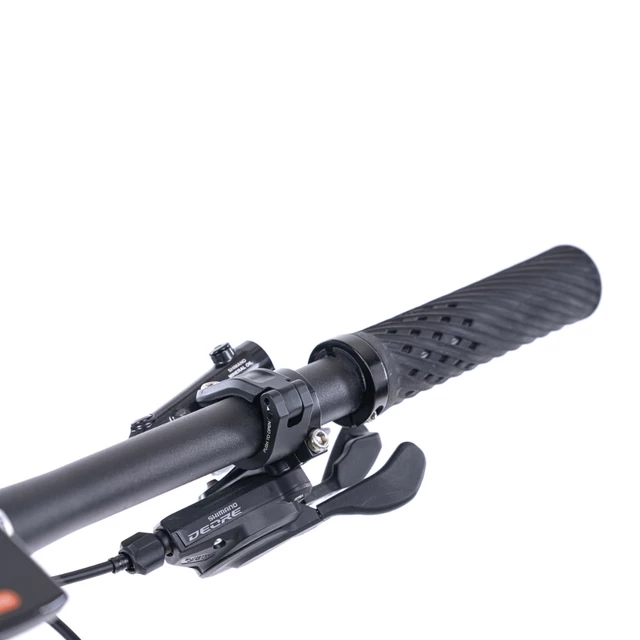

Gear shifter |
Shimano Deore M5130 |
Cassette |
Shimano LG600 (11 - 43 threads) |
Chain |
Shimano LG500 |

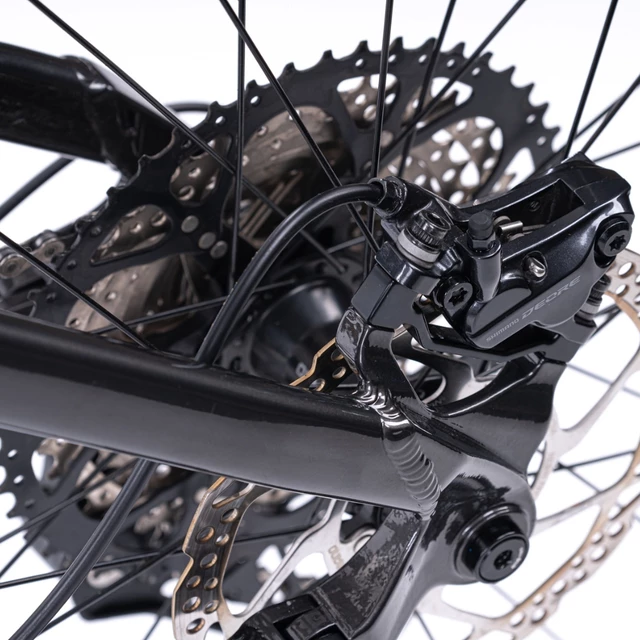

Brakes |
Shimano Deore M6120 (180 mm disc) |
Front hub |
Shimano MT410 Boost |
Rear hub |
Shimano MT400 Boost |
Rims |
Remerx 2030 |
Tires |
Schwalbe Nobby Nic 29 x 2.4“ (62 - 622), 27.5 x 2.6“ (65 - 584) |
Pedals |
Alloy |
Handle grips |
Herrmans Luna Lock-on |
Handlebars |
Spec Soil |
Stem |
Spec Soil 31.8 x 50 mm |
Headset |
Spec (semi-integrated, industrial bearings) |

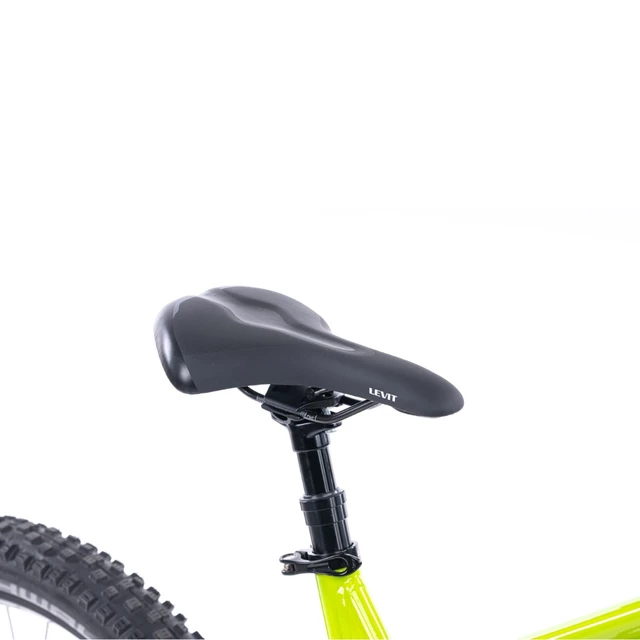

Seatpost |
Telescopic Kind shock 900i 150 mm |
Seat |
Selle Royal Voga |
Kickstand ready |
Yes (20 mm) |
Rear rack ready |
No |
Water bottle cage ready |
Yes |
Lights |
No |
Bell |
No |
Max load capacity |
140 kg (the combined weight of the rider, bike and load) |
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
Motor | Bafang M510 |
---|---|
Battery | Levit SP2.1 630 Wh (17.5 Ah) |
Wheel size | 29, 27.5" (for users over 155 cm) |
Number of speeds | 10 |
Program types | 5 programs |
Range | 150 km |
Motor output | 250 W |
Display | Bafang C190 |
Frame | Alloy 6061 |
Frame material | Aluminium |
Brakes | Hydraulic, Disc |
Suspension | full suspesion |
Suspension travel | 130 mm |
Fork | SR Suntour Zeron 35 Boost LOR (1130 mm, vzduchová se zamykáním korunky) |
Rear Shock | Manitou Radium expert |
Drive | Central |
Rear Brake | Shimano Deore BR-M6120 |
Front Brake | Shimano Deore BR-M6120 |
Rear hub | Shimano MT400 Boost |
Front Hub | Shimano MT410 Boost |
Rear tire | Schwalbe Nobby Nic 27,5 x 2,6“ (65 - 584) |
Front Tire | Schwalbe Nobby Nic 29 x 2,4“ (62 - 622) |
Gear shifting | Shimano Deore M5130 |
Gear shifting type | lever |
Rear Derailleur | Shimano Deore M5130 |
Crank Set | Spec NW (170mm, 38 z.) |
Cassette | Shimano LG600 (11 - 43 z.) |
Chain | Shimano CN-LG500 |
Front Rim | Remerx 2030 |
Rear rim | Remerx 2030 |
Pedals | Alloy |
Handlebar grip | Spec Soil |
Grips | Herrmans Luna Lock-on |
Handlebar stem | Spec Soil 31,8 x 50 mm |
Head Tube | Spec (semi-integrované, prům. ložiska) |
Saddle | Selle Royal |
Seat post | Teleskopická Kind shock 900i |
Type of e-bike | MTB |
Drive | Bafang |
Weight limit (kg) | 140 kg |
Year | 2024 |
