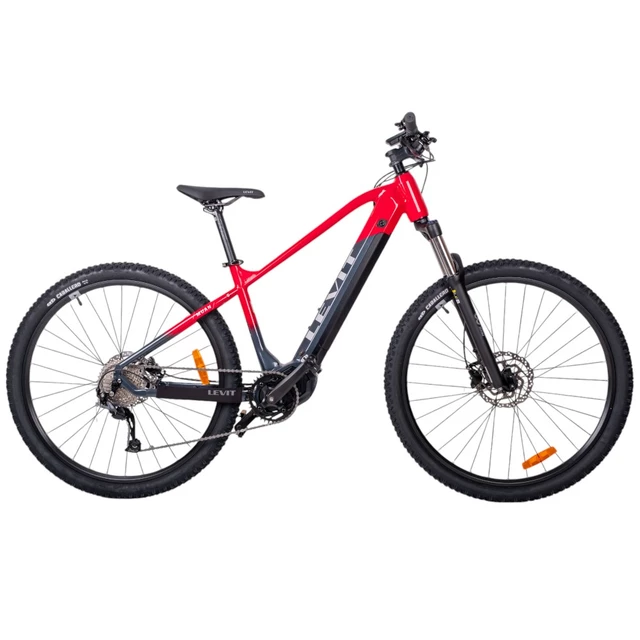

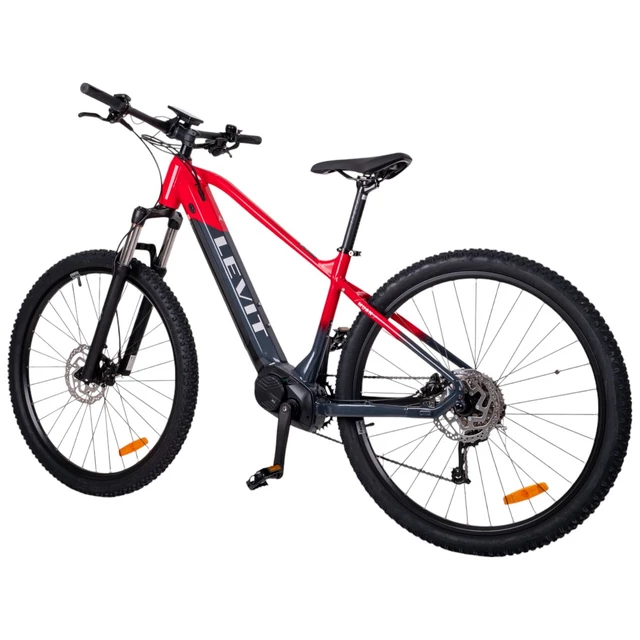

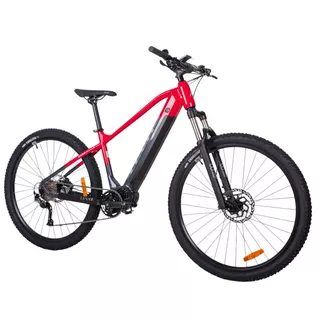

Mountain E-Bike Levit Muan BF3 Overstep 630 29” - Burgundy Grey Pearl SPECIAL OFFER

Reliable Bafang drive, high-capacity battery, color display, Shimano components, air-suspension fork. more


Frame size:

Colour:  Burgundy Grey Pearl

Select a variant

1 559,60 €

2 479,60 € incl. VAT

-37%

You will save 920 €

Share Watchdog

Your order includes

  • 2-year warranty

Description

Perfect for everyone, the Mountain E-Bike Levit Muan BF3 Overstep 630 29” is a great companion for your terrain riding adventures. The large, 29-inch wheels provide stability and speed, thus making your terrain rides much easier and comfortable. The reliable and powerful Bafang drive will take you wherever you wish to go. This e-bike will make every ride way more comfortable, allowing you to have fun even on challenging terrain.

The Mountain E-Bike Levit Muan BF3 Overstep 630 29” also features a high-capacity Levit battery, which provides support on challenging terrain. On the easy-to-read Bafang display, you can choose from the bike’s 5 assistance modes (including walking assistance), or follow the ride data such as the current speed, performance or distance covered. The USB port, which allows you to recharge your phone during the ride, is a nice touch.

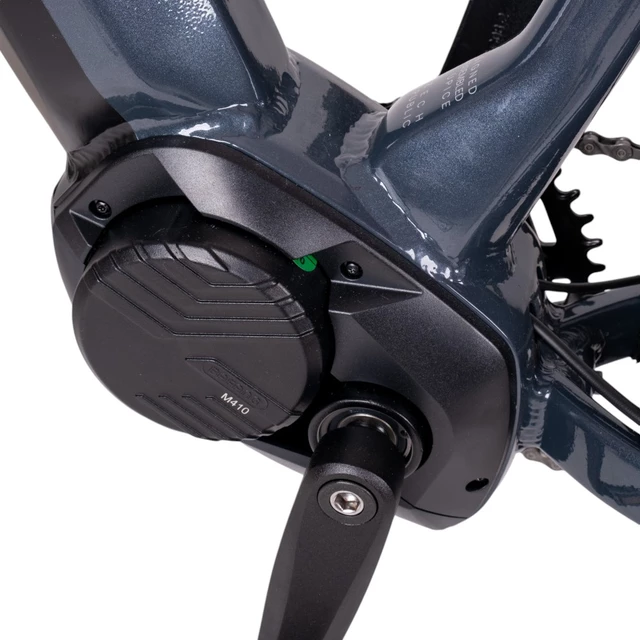

Top-class drive

In order to be able to really enjoy an e-bike ride, you need a top-shelf drive that won’t let you down. And that’s exactly what this bike offers. The Bafang M410 drive with a rated power of 250 watts and a powerful torque of 80 Nm runs quietly and provides a long distance range, making this bike a perfect companion for your rides. In combination with a high-capacity battery, it will give you a range of up to 150 km.

Air-suspension fork

The ZOOM 868S AIR Boost fork with 120-mm travel features air suspension and therefore is ready for any terrain. The oil damper ensures a smooth ride on an uneven terrain. And if you want to lock the fork out, you can do so using a lever on the handlebars.

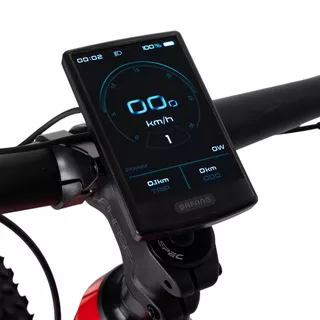

Easy-to-read display

Made of a solid and durable material, the Bafang color display also features hardened glass, so you won’t have to worry about damaging it on challenging terrain. The display is extremely easy to use and offers a plethora of useful functions, the most important of which are light control, battery status, speed and performance indicator. However, it also shows the current assistance mode or unit of speed. On the side of the display there’s a USB port, which allows you to recharge your phone during the ride.

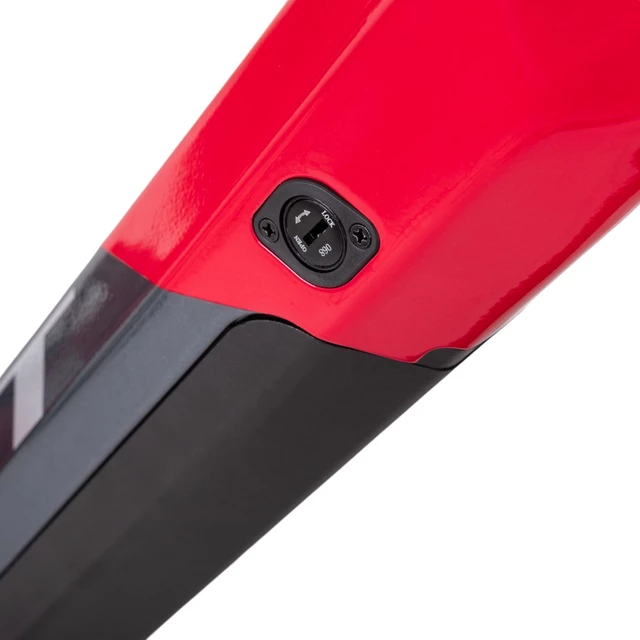

Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.

Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Wheel size

29"

Frame

Alloy 6061

Frame size

17", 19", 21", 23"

Number of speeds

1x9

Battery capacity

630 Wh (17.5 Ah)

Motor

Bafang M410

Display

Bafang C190

Fork

Zoom 868S AIR Boost (120 mm travel, air suspension, lockout from the crown)

Fork travel

120 mm

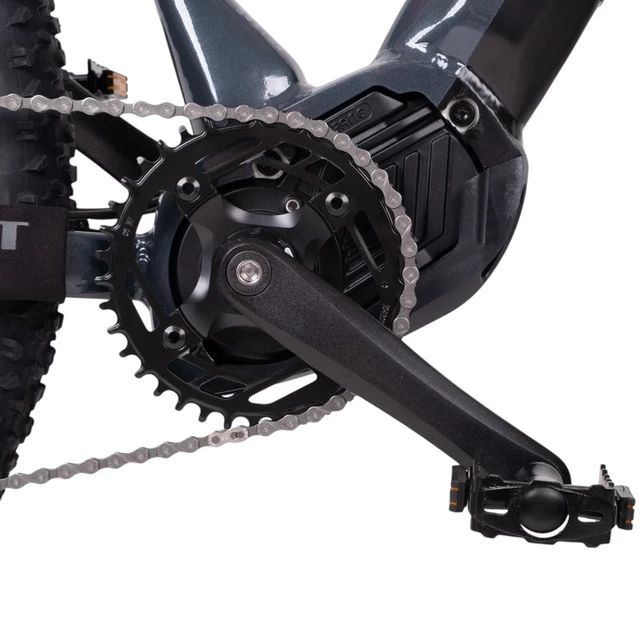

Chainring

Spec NW (170 mm, 38 threads)

Rear derailleur

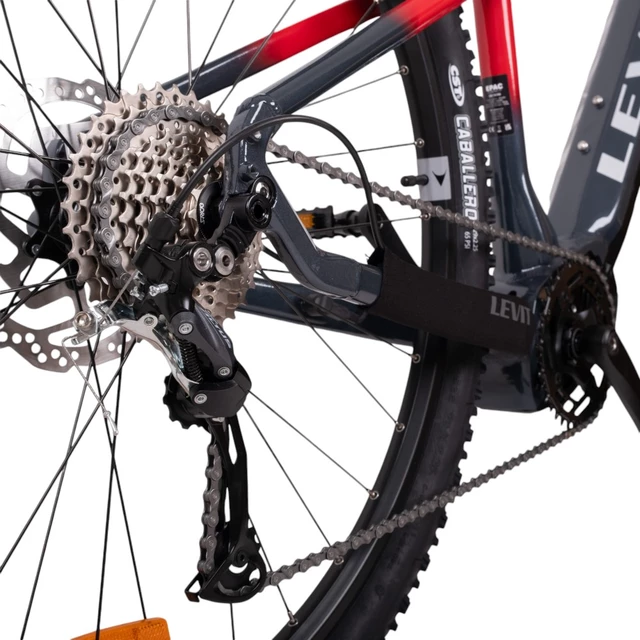

Shimano Altus M2000

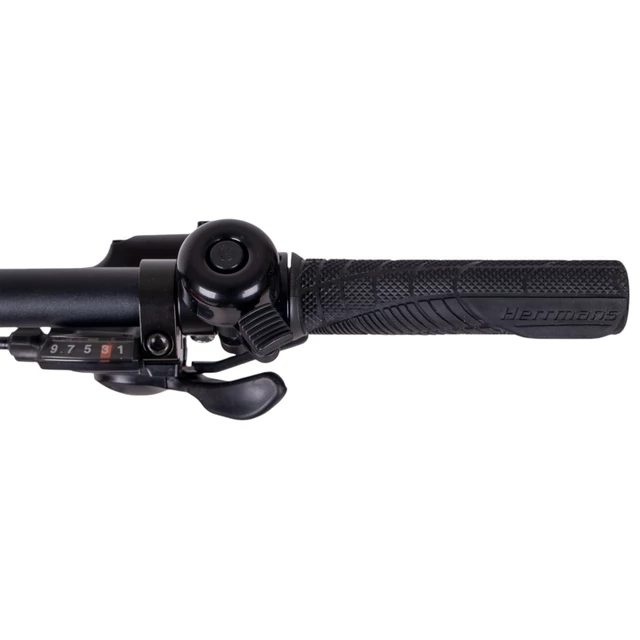

Gear shifter

Shimano Altus M2000

Cassette

S-Ride M300 (11-36 threads)

Chain

KMC X9

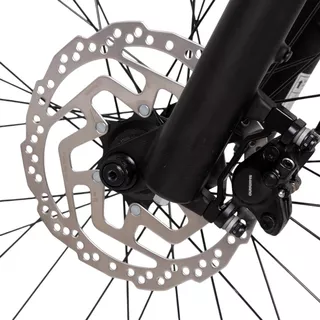

Brakes

Shimano MT200 (180 mm disc)

Front hub

Shimano MT410 Boost

Rear hub

Shimano MT400 Boost

Rims

Remerx Rocky Disc (622 x 22 mm)

Tires

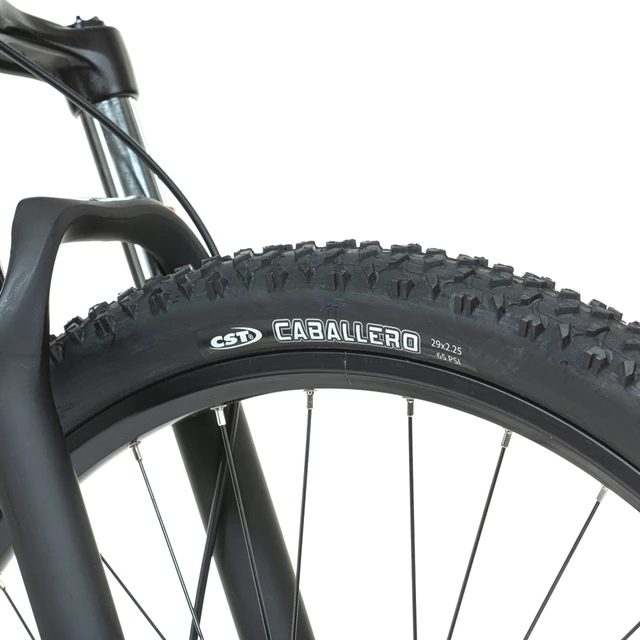

CST Gaballero 29 x 2.25" (57 - 622)

Pedals

Alloy

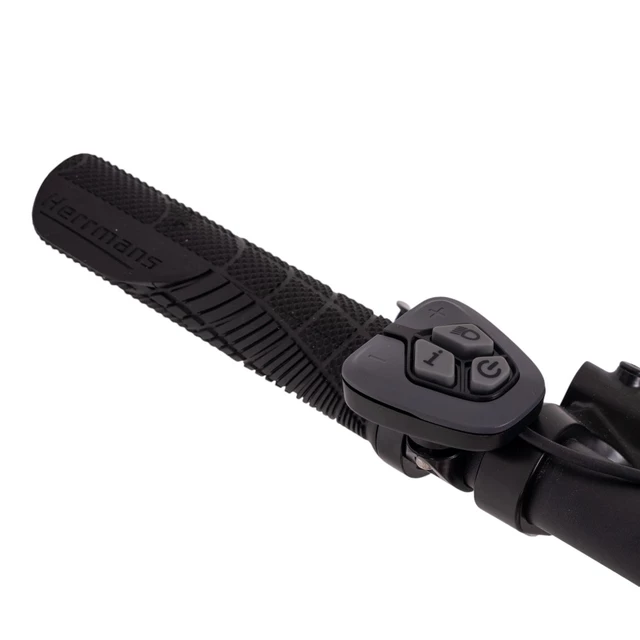

Handle grips

Herrmans Shark Lock-on

Handlebars

Spec Phase 31.8 x 720 mm (17"), 740 mm (19", 21")

Stem

Spec Phase 60 mm (17"), 80 mm (19", 21")

Headset

Spec (semi-integrated, industrial bearings)

Seatpost

Spec Phase 30.9 x 400 mm

Seat

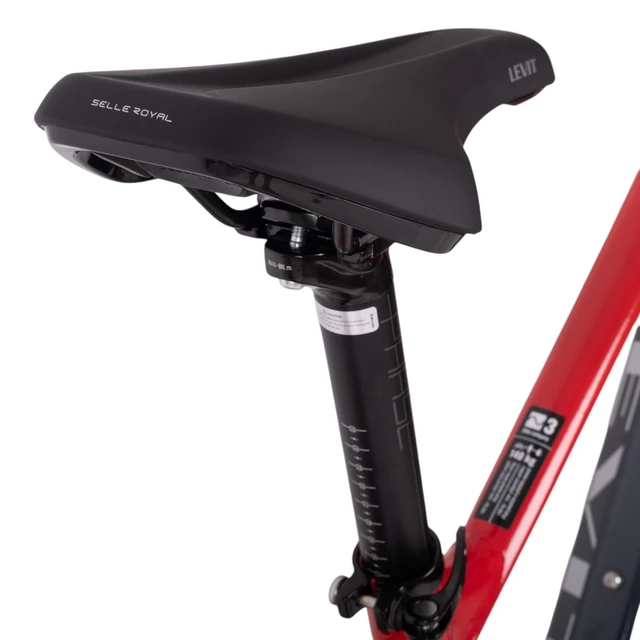

Selle Royal 1216 HRN

Kickstand ready

Holes with 18-mm spacing

Rear rack ready

Yes

Water bottle cage ready

Yes

Lights

No

Bell

Yes

Lights

No

Max load capacity

140 kg (the combined weight of the rider, bike and load)

Weight

There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store.


Note: The photos are illustrative, the bike is fitted with a Bafang motor and display and does not have shift sensor.


Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!

Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.



Product parameters

Battery Levit SP2.1 630 Wh (17.5 Ah)
Range 150 km
Motor Bafang M410
Drive Central
Program types 5 programs
Brakes Hydraulic
Motor output 250 W
Display Bafang C190
Suspension travel 120 mm
Frame Alloy 6061
Gear shifting type lever
Number of speeds 9
Suspension suspension fork
Frame material Aluminium
Wheel size 29
Fork Zoom 868S AIR Boost (120 mm)
Rear Brake Shimano MT200 (180 mm)
Front Brake Shimano MT200 (180 mm)
Type of e-bike MTB
Rear hub Shimano MT400 Boost
Front Hub Shimano MT410 Boost
Rear tire CST Gaballero 29 x 2,25“ (57 - 622)
Weight limit (kg) 140 kg
Front Tire CST Gaballero 29 x 2,25“ (57 - 622)
Gear shifting Shimano Altus M2000
Year 2024
Drive Bafang
Rear Derailleur SHIMANO Altus M2000
Crank Set Spec NW (170mm, 38 z.)
Cassette S-Ride M300 (11 - 36 z.)
Chain KMC X8
Front Rim Remerx Rocky Disc (622 x 22 mm)
Rear rim Remerx Rocky Disc (622 x 22 mm)
Pedals Alloy
Handlebar grip Spec Phase
Grips Herrmans Shark Lock-on
Handlebar stem Spec Phase 60 mm (16“, 17“, 18“), 80 mm (19“, 21“,23“)
Saddle Selle Royal 1216 HRN
Seat post Spec Phase 30,9 x 400 mm / 30,9 x 350 mm
