Junior Mountain E-Bike Crussis e-Atland 6.9-XS – 2024

Well-equipped all-terrain junior e-bike with a 14” frame and a powerful Panasonic drive! Enjoy its suspension fork, hydraulic disc brakes and top-class features. more


Frame size:  14" (135-155 cm)

E-shop: 3-5 dní

1 799,60 €

incl. VAT

Share Watchdog

Your order includes

  • Selected products (fitness trainers) over 165 EUR are covered by an extended warranty of 10 years. And that’s because we are confident in the quality of our products! Extended 10-year warranty also applies to all bicycles Kellys, 4EVER, Devron, DHS, Kreativ, as well as all e-bikes. You can rely on our products. The 10year warranty covers the trainer/bike frame only.

Recommended accessories

Description

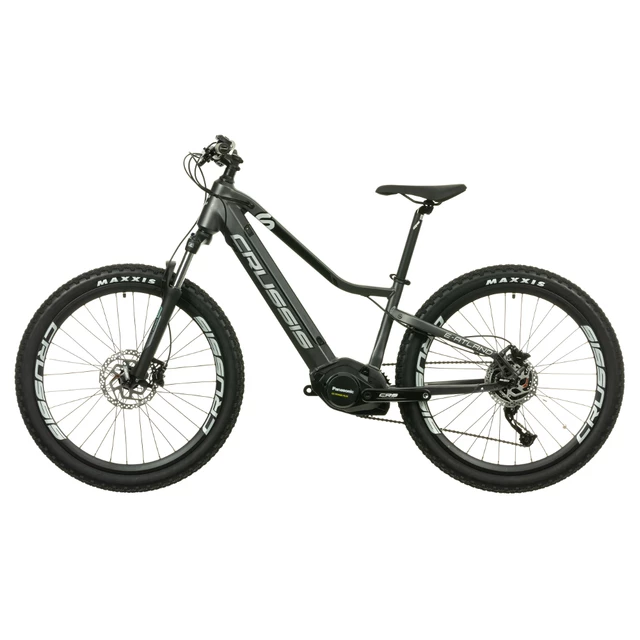

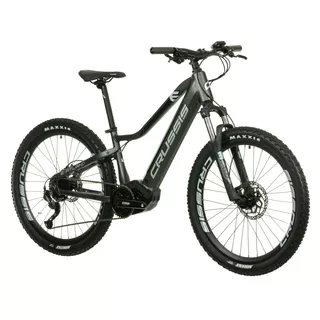

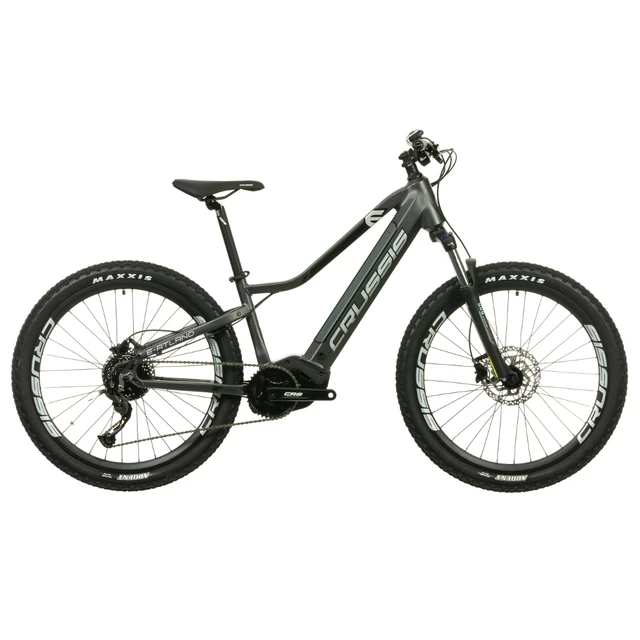

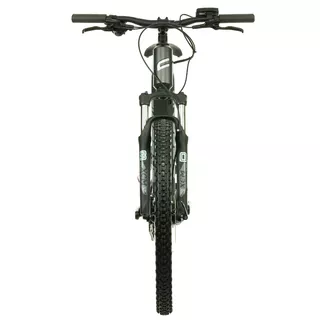

Finally, there’s a great junior e-bike! The Junior Mountain E-Bike Crussis e-Atland 6.9-XS – 2024 allows youngsters to accompany you on longer trips. The 14.5Ah battery and a reliable Panasonic GX Power Plus center drive allow for a range of up to 130 km (depending on the trail profile). The outstanding frame geometry makes the bike easy to control while the fully integrated battery and center drive make it perfectly balanced.

The high-quality Maxxis Ardent tires on the 26” wheels provide excellent adhesion on all surfaces. The hydraulic disc brakes and Suntour XCM HLO spring suspension fork allow for a safe and comfortable ride. You can choose from 5 assistance modes on the display, where there is also a USB port which allows you to charge your mobile device. The Junior Mountain E-Bike Crussis e-Atland 6.9-XS – 2024 is a pleasure to ride.

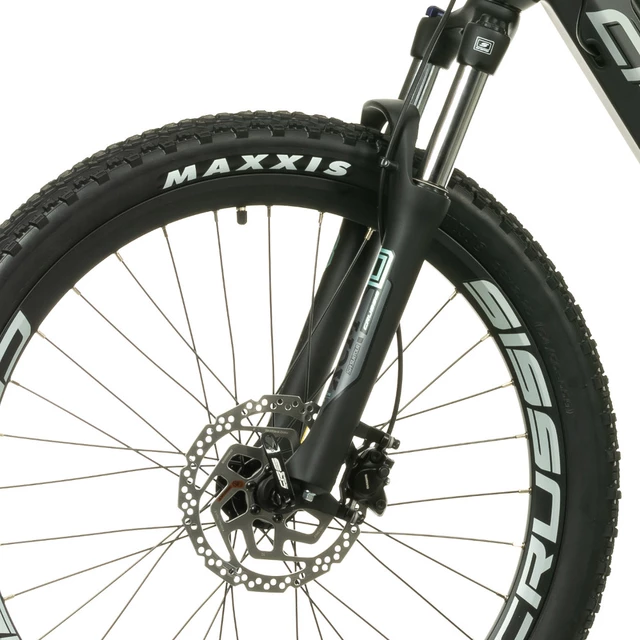

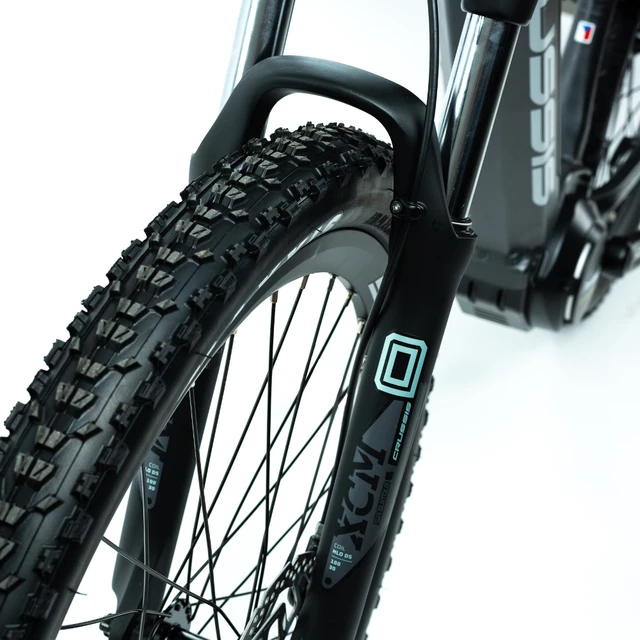

Adjustable Fork

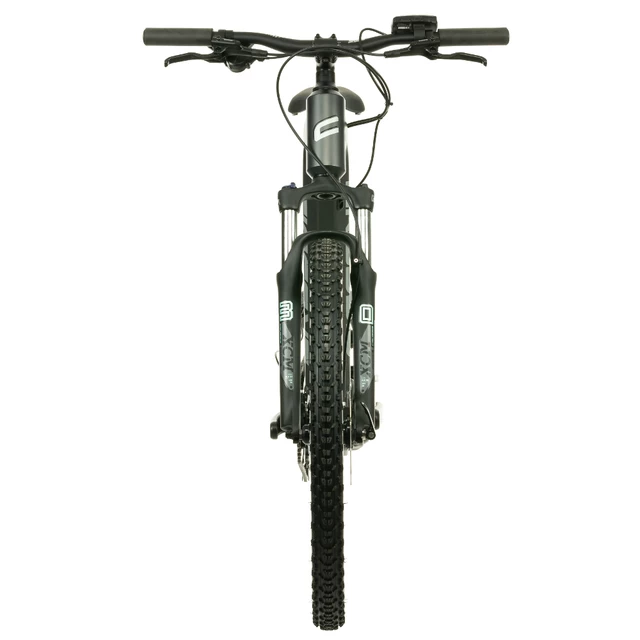

The Junior Mountain E-Bike Crussis e-Atland 6.9-XS – 2024 features a SUNTOUR XCM HLO DS 26” spring suspension fork with 100mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the handlebars.

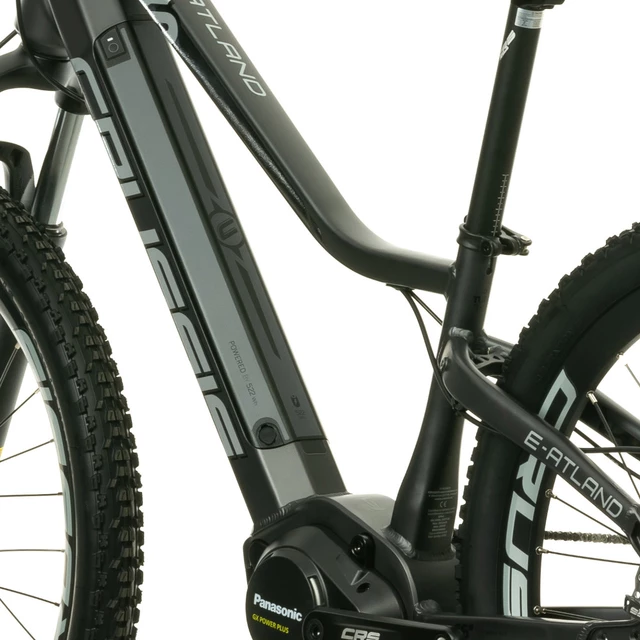

High-Quality Battery

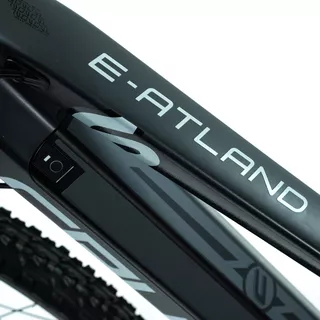

The Panasonic 36V/14.5Ah (522Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 130 km on a single charge (depending on the trail profile).

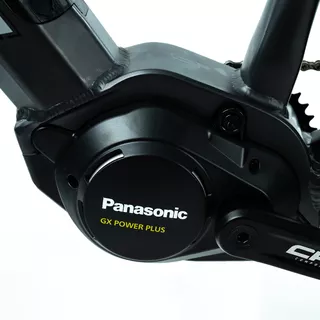

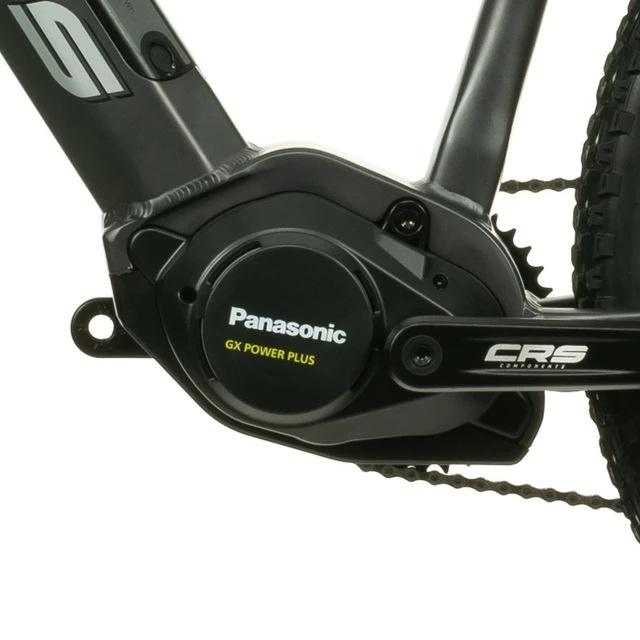

Ultra-Powerful PANASONIC Drive

The PANASONIC GX Power Plus is a reliable drive for riders who need more assistance, especially while riding on a challenging terrain. It’s ideal for sports and trekking bikes as it offers outstanding performance even on forest or gravel roads. The drive offers a torque of 75 Nm, features a torsional pedaling force sensor, and weighs only 3.2 kg.

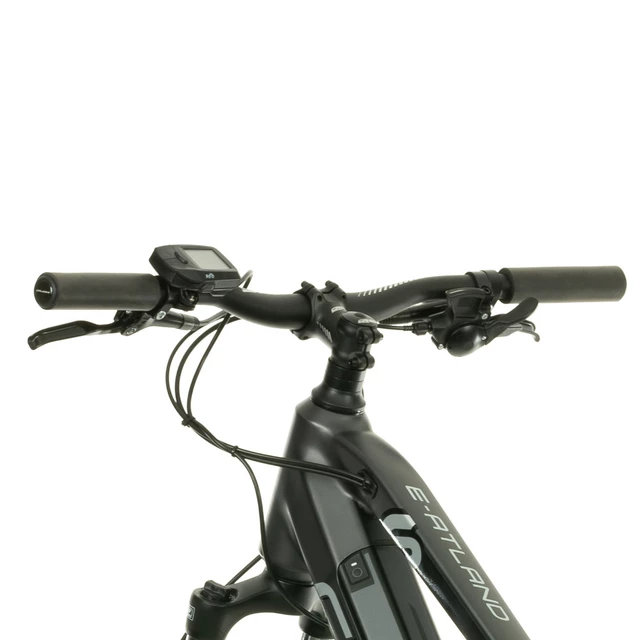

Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Apart from the three main assistance modes (HIGHSTANDARD and ECO), the bike also offers a dynamic AUTO mode, which adjusts the level of assistance to the initial torque of the rider. On the LCD screen, there’s also a USB port which allows you to charge your mobile device.


Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.


E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.


Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

Alu 6061 (14“)

Motor

PANASONIC GX Power Plus, center, 250W (max 450W), 75 Nm

Battery

Li-ion 36 V/14.5 Ah (522 Wh), removable – can be charged separately

Charger

2 Ah

Distance range

Up to 130 km

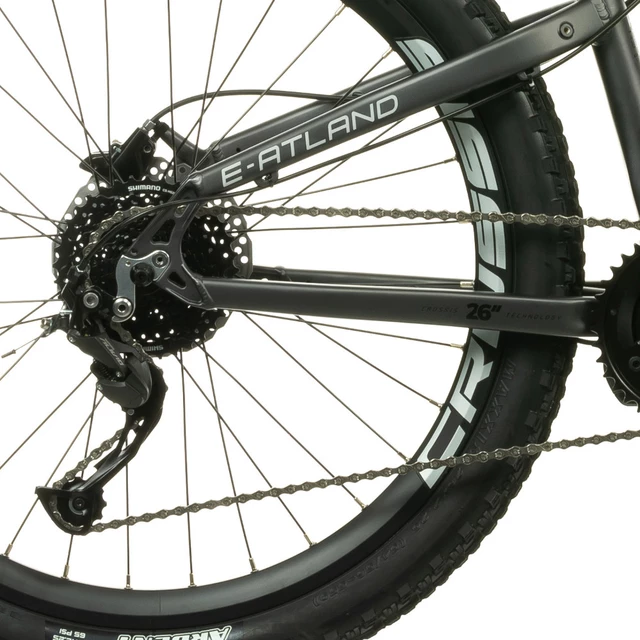

Rear derailleur

SHIMANO Alivio RD-M3100-SGS

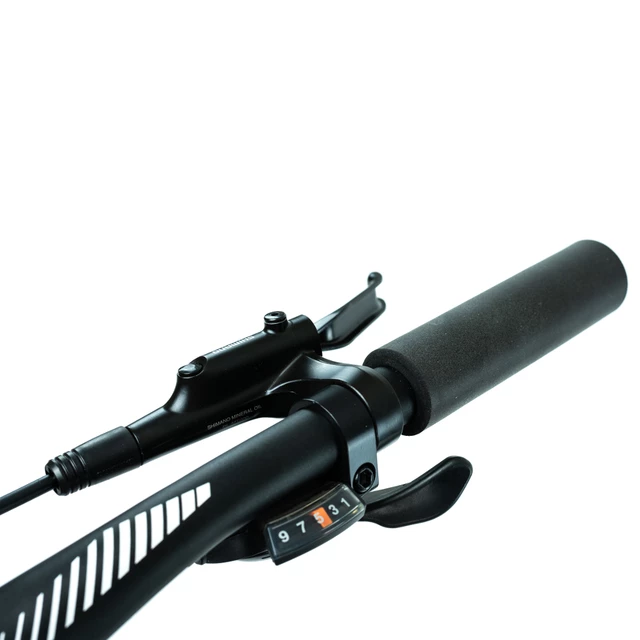

Gear shifter

SHIMANO Alivio SL-M3100

Chain

KMC X9

Number of speeds

1 x 9

Cassette

SHIMANO CS-HG200-9, 9 speeds, 11 - 36 teeth

Fork

SUNTOUR XCM HLO DS 26", 100 mm travel, lockout (fork)

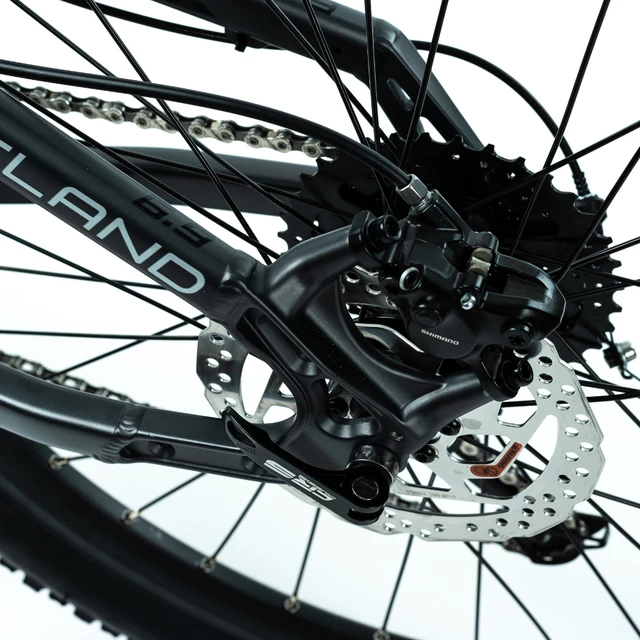

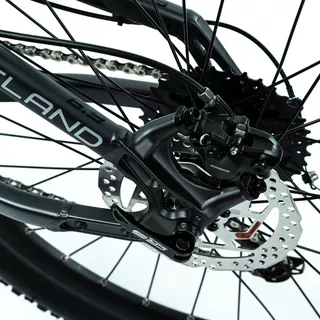

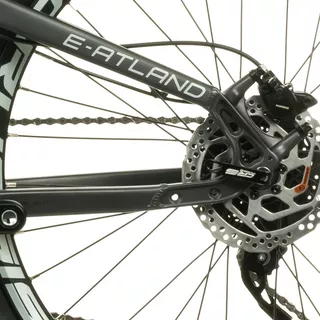

Brakes

Hydraulic SHIMANO BR-MT200, rotor 180/160 mm (front/rear)

Control panel

PANASONIC LCD panel w/ USB port (color display)

Tires

MAXXIS Ardent 26*2.25

Valve

AV

Rims

CRUSSIS 26", double-walled, lined, 25 mm

Hubs

CRUSSIS disc, wreath bearing, 32D

Headset

Semi 11/8

Stem

CRUSSIS Al, 60 mm, 7° angle

Handlebars

CRUSSIS Al, 640 mm

Grips

CRUSSIS 100% silicone

Pedals

WELLGO, plastic w/ reflector

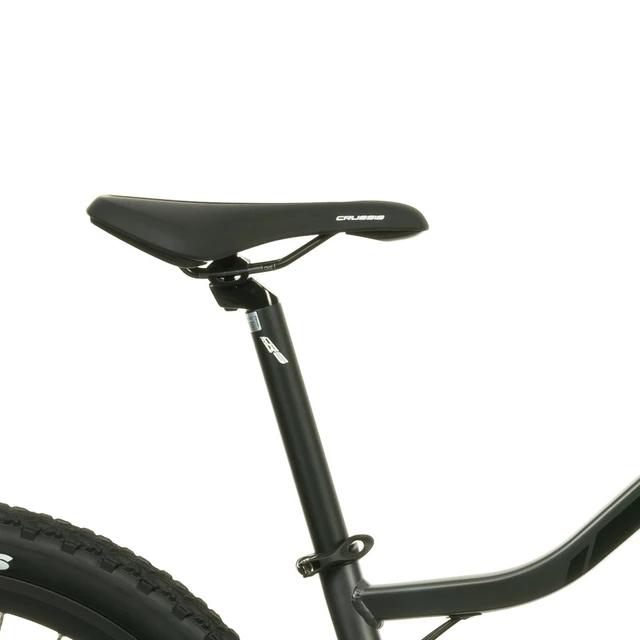

Seatpost

CRUSSIS w/ lock, 30.4 / 350 mm

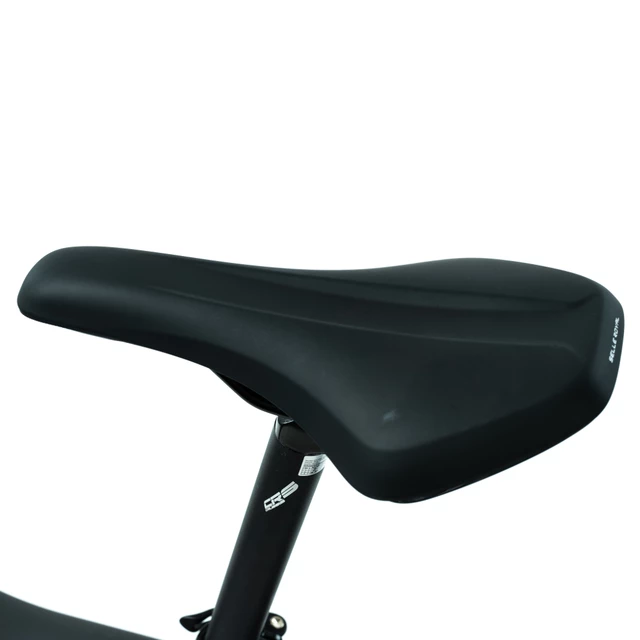

Seat

Selle ROYAL

Kickstand ready

Holes with 40-mm spacing on the rear frame

Rear rack ready

Yes

Weight

There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store.

Weight limit

120 kg



Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!


Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.



Product parameters

Motor (central drive), PANASONIC GX Power Plus
Battery 14.5 Ah/522 Wh, Li-ion 36V, (Maximum range 130 km)
Wheel size 26
Number of speeds 9
Program types 5 programs
Range 130 km
Motor output 250 W
Display PANASONIC LCD panel
Frame Al 6061
Drive Central
Brakes Hydraulic
Suspension fork yes
Suspension suspension fork
Suspension travel 100 mm
Fork SUNTOUR XCM HLO DS 26", 100 mm
Rear Brake Shimano BR-MT200 Hydraulic Disc
Front Brake Shimano BR-MT200 Hydraulic Disc
Rear hub CRUSSIS disc, ball bearing, 32D
Front Hub CRUSSIS disc, ball bearing, 32D
Rear tire MAXXIS Ardent 26 x 2.25
Front Tire MAXXIS Ardent 26 x 2.25
Gear shifting SHIMANO Alivio SL-M3100, SRAM X5 9-Speed Trigger
Gear shifting type lever
Rear Derailleur SHIMANO Alivio RD-M3100-SGS
Crank Set 38T
Cassette SHIMANO HG200 9s 11-36T
Chain KMC X9
Front Rim CRUSSIS 26", double-wall, sleeved, 25 mm
Rear rim CRUSSIS 26", double-wall, sleeved, 25 mm
Pedals WELLGO
Crankset 170 mm
Handlebar grip CRUSSIS Al, 640 mm
Grips CRUSSIS silicone
Handlebar stem CRUSSIS Al, 60 mm, 7°
Saddle Selle Royal
Seat post CRUSSIS with a lock, 30.4 / 350 mm
Type of e-bike MTB
Drive Panasonic
Frame size 14"
Weight limit (kg) 120 kg
Year 2024
