Mountain E-Bike Crussis ONE-Largo 10.9-M – 2024

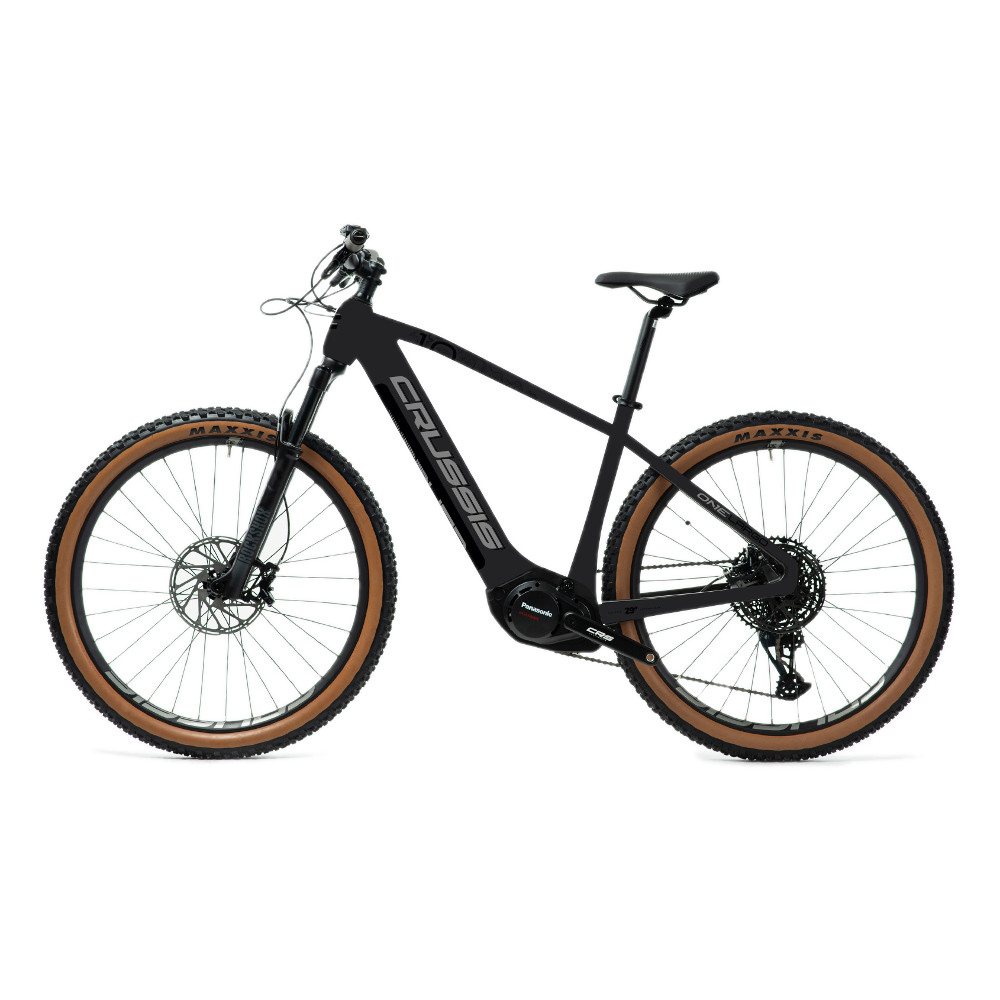

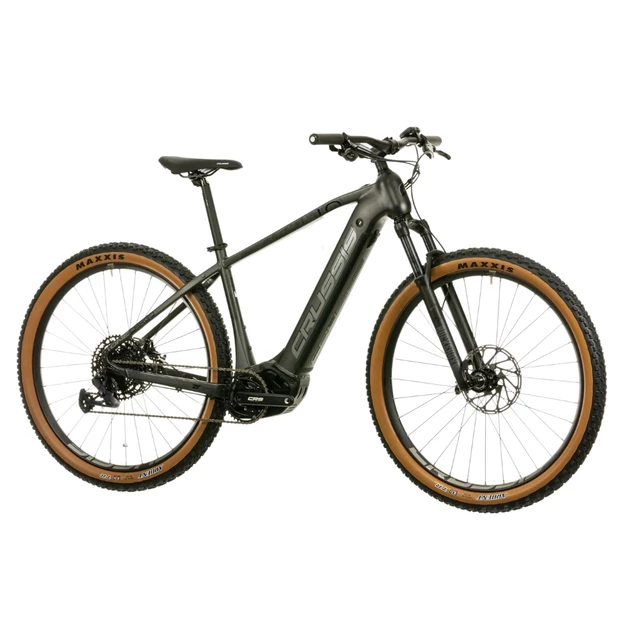

The Mountain E-Bike Crussis ONE-Largo 10.9-M – 2024 is a powerful, monochromatic e-bike with an extremely powerful battery ideal for those who prefer bikes with larger wheels. This model features an outstanding PANASONIC GX Ultimate drive that only weighs 2.95 kg and offers a high torque of 95 Nm while maintaining low battery consumption. The bike is powered by a fully-integrated, high-capacity, 20Ah LG Li-ion battery, which allows for a distance range of up to 170 km (depending on the terrain), and, along with the center drive, makes it perfectly balanced. This bike also boasts a 12-speed SRAM SX Eagle gear shifter.
Most mountain bikes come with the large, 29” wheels. And the Mountain E-Bike Crussis ONE-Largo 10.9-M – 2024 is no exception! Moreover, the high-quality Maxxis Ardent tires provide excellent adhesion on all surfaces. The hydraulic disc brakes and ROCKSHOX FS Recon Silver RL Solo Air suspension fork with 120mm travel allow for a safe and comfortable ride. The Mountain E-Bike Crussis ONE-Largo 10.9-M – 2024 is a great bike for an unbridled terrain ride.
Ultra-Powerful PANASONIC Drive

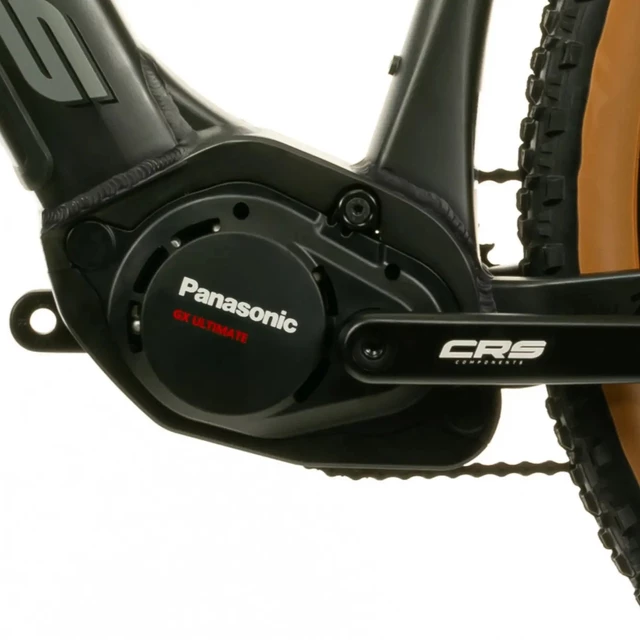

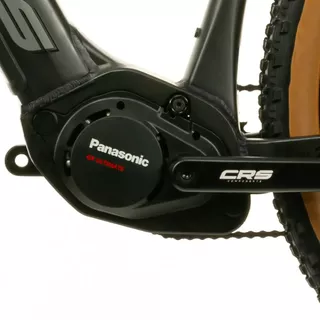

The PANASONIC GX Ultimate is a sturdy, extremely powerful drive that can deal even with the most challenging uphill rides. Ideal for mountain bikes, the drive offers a torque of 95 Nm, features a torsional pedaling force sensor, and weighs only 2.95 kg.

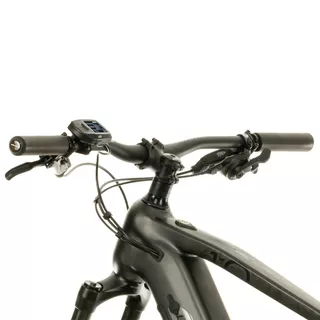

Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Apart from the three main assistance modes (HIGH, STANDARD and ECO), the bike also offers a dynamic AUTO mode, which adjusts the level of assistance to the initial torque of the rider. On the LCD screen, there’s also a USB port which allows you to charge your mobile device.
Air-Suspension Fork
The Mountain E-Bike Crussis ONE-Largo 10.9-M – 2024 features a ROCKSHOX FS Recon Silver RL Solo Air 29” air suspension fork with 120mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the crown.
Powerful and Reliable Battery

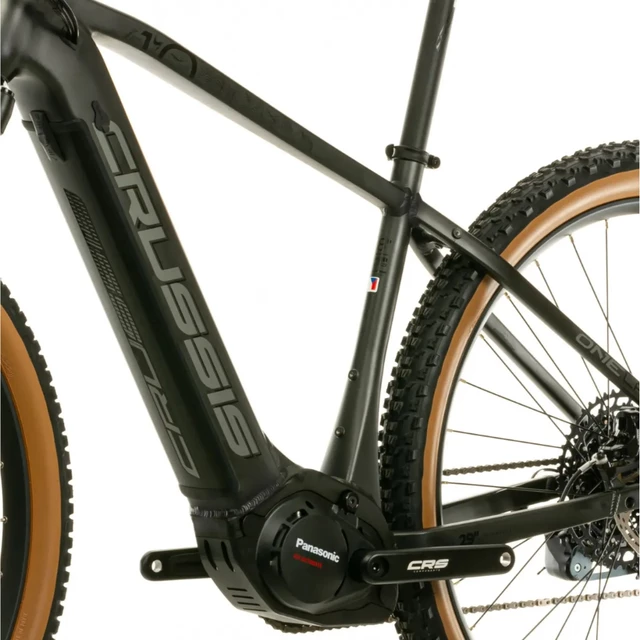

The LG Li-ion 36V/20Ah (720Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 170 km on a single charge (depending on the trail profile).
Top-Class Gear Shifter

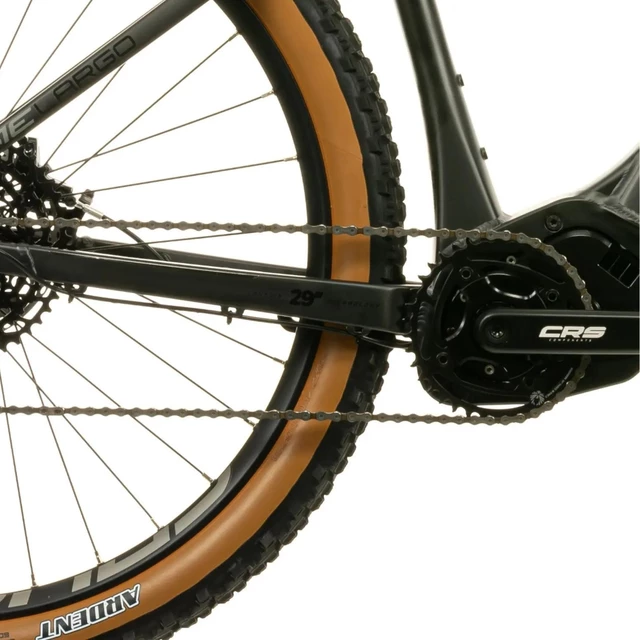

SRAM Eagle technology allows for smooth and accurate shifting of gears, which you can rely on in every situation. Eagle is a revolutionary MTB technology as it features an ideal, single-chainring drive, which is lightweight, durable, easy to use (intuitive operation) and offers a variety of programs for all kinds of terrain.
The PG-1210 SX cassette is the only Eagle cassette designed to meet the ever-increasing demands on mountain bikes, making it perfect for challenging terrain riding.
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.
Our tips:
- Don't know what bike type and size to choose? Find out more in our guide.
- Don't know how to choose an e-bike? Find out more in another of our guides.
- Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.
Technical description:
|

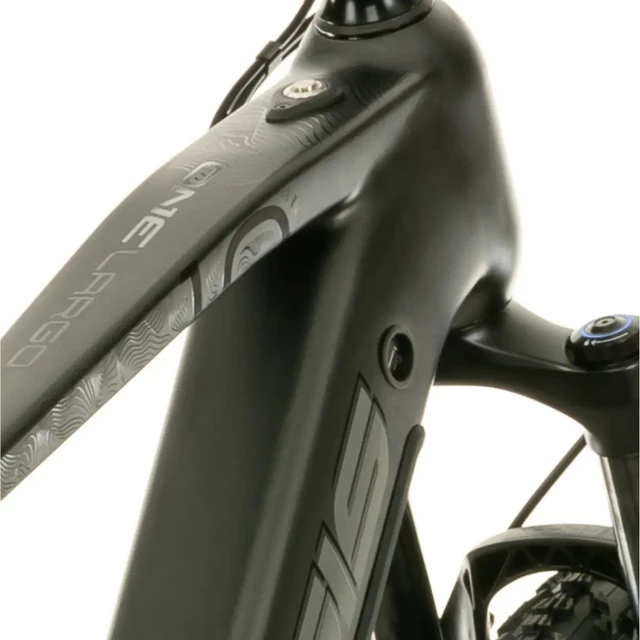

Frame |
Alu 6061 (18”, 20“, 22”) |
|
Motor |
PANASONIC GX Ultimate, 250W (MAX 600W) 95 Nm |
|
Battery |
LG Li-ion 36 V/720 Wh (20 Ah), removable – can be charged separately |
|
Charger |
4 Ah |
|
Distance range |
Up to 170 km |
|
Rear derailleur |
SRAM SX Eagle |
|
Gear shifter |
SRAM NX Eagle |
|
Number of speeds |
1 x 12 |
|
Cassette |
SRAM CS-PG1210 Eagle, 11-50z |
|
Chain |
SRAM Eagle SX 12s |
|
Fork |
ROCKSHOX FS Recon Silver RL Solo Air 29", 120 mm travel |
|
Brakes |
SRAM Guide T (200/180 mm) |
|
Control panel |
PANASONIC LCD panel w/ USB Micro-B jack and 5 assistance modes (color screen) |
|
Tires |
MAXXIS Ardent 29*2.40 |
|
Valve |
AV |
|
Rims |
CRUSSIS 29", double-walled, lined, 30 mm |
|
Hubs |
CRUSSIS disc, wreath bearing, 32D, fixed axle (15x100 mm / 12 x 142 mm) |
|
Headset |
Tapered 1.5” |
|
Stem |
CRUSSIS Al, 50 mm, 7° angle |
|
Handlebars |
CRUSSIS Al, 31.8 mm, 760 mm |
|
Grips |
CRUSSIS 100% silicone |
|
Pedals |
WELLGO, alu w/ reflector |
|
Seatpost |
CRUSSIS w/ lock, 30.4 / 350 mm or 400 mm |
|

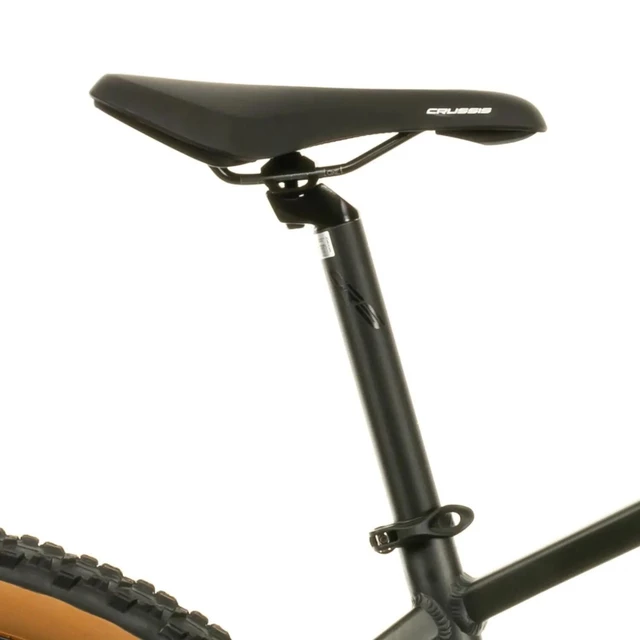

Seat |
Selle ROYAL |
|
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
|
Max load capacity |
120 kg |
CRUSSIS e-bike size chart 2022/2023
| Frame size | Rider height |
| 14″ | 135-155 cm |
| 15″ | 150-165 cm |
| 16″ | 155-170 cm |
| 17″ | 160-175 cm |
| 18″ | 165-180 cm |
| 19″ | 170-185 cm |
| 20″ | 175-190 cm |
| 21″ | 180-195 cm |
| 22″ | 185-200+ cm |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
