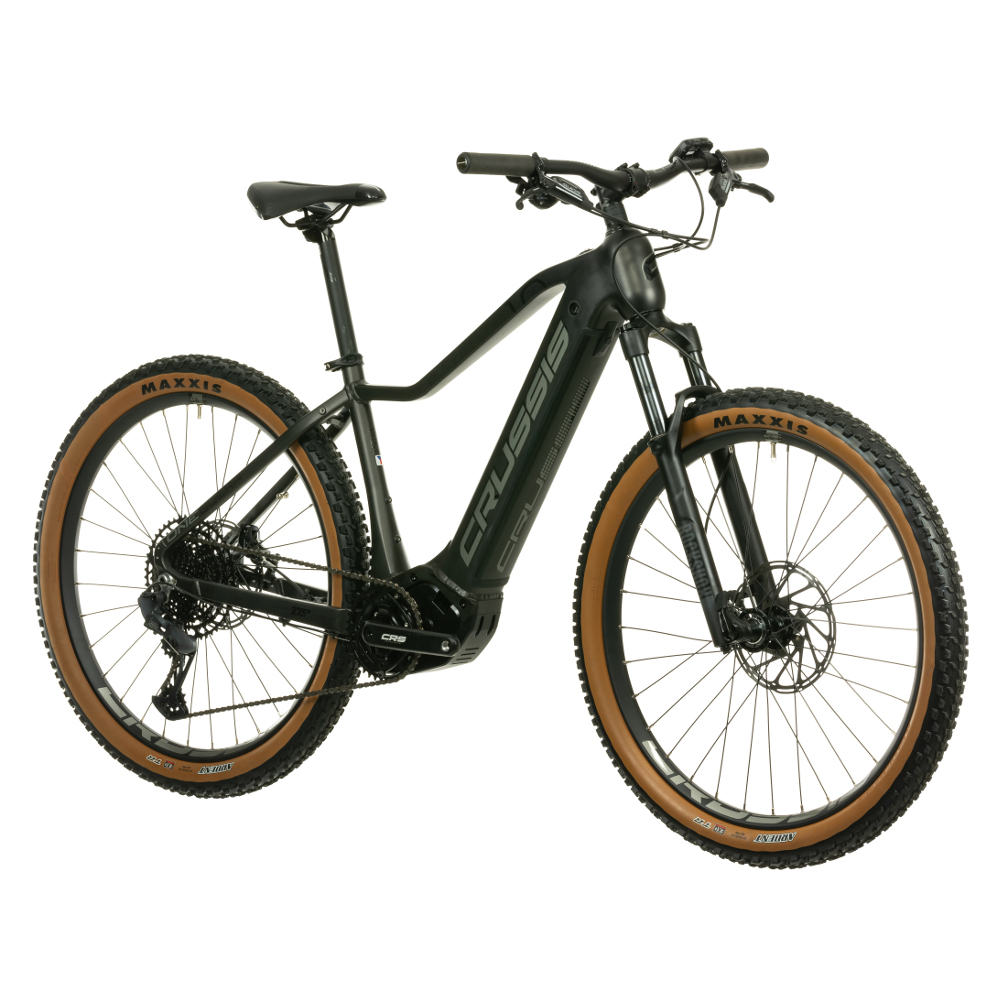

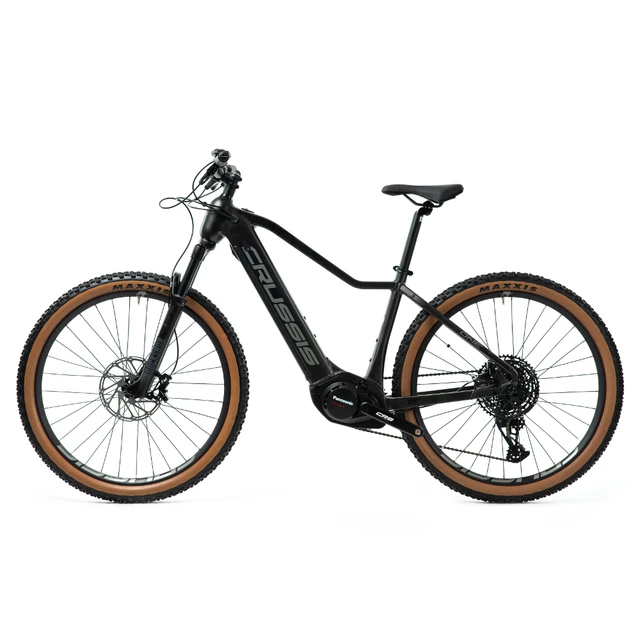

Mountain E-Bike Crussis ONE-Guera 10.9-M – 2024 SPECIAL OFFER

Monochromatic women’s mountain e-bike with an outstanding PANASONIC drive, 27.5” wheels and an ultra-powerful battery! This well-equipped bike features 12 speeds, hydraulic disc brakes and excellent suspension. more


Frame size:

Select a variant

2 659,60 €

2 799,60 € incl. VAT

-5%

You will save 140 €

Share Watchdog

Your order includes

  • Selected products (fitness trainers) over 165 EUR are covered by an extended warranty of 10 years. And that’s because we are confident in the quality of our products! Extended 10-year warranty also applies to all bicycles Kellys, 4EVER, Devron, DHS, Kreativ, as well as all e-bikes. You can rely on our products. The 10year warranty covers the trainer/bike frame only.

Description

Providing an uncompromising ride on every surface, the Mountain E-Bike Crussis ONE-Guera 10.9-M – 2024 is an ultra-powerful, monochromatic women’s e-bike with an extremely powerful battery. This model features an outstanding PANASONIC GX Ultimate drive that only weighs 2.95 kg and offers a high torque of 95 Nm while maintaining low battery consumption. The bike is powered by a fully-integrated, high-capacity, 20Ah LG Li-ion battery, which allows for a distance range of up to 170 km, and, along with the center drive, makes it perfectly balanced. This bike also boasts an outstanding geometry with a lowered frame tube and a 12-speed SRAM SX Eagle gear shifter.

The Mountain E-Bike Crussis ONE-Guera 10.9-M – 2024 features 27.5” wheels and high-quality Maxxis Ardent tires that provide excellent adhesion on all surfaces. The hydraulic disc brakes and ROCKSHOX FS Recon Silver RL Solo Air suspension fork with 120mm travel allow for a safe and comfortable ride. You can choose from 5 assistance modes on the color LCD screen, where there is also a USB port which allows you to charge your mobile device. The Mountain E-Bike Crussis ONE-Guera 10.9-M – 2024 is a great bike for an unbridled terrain ride.

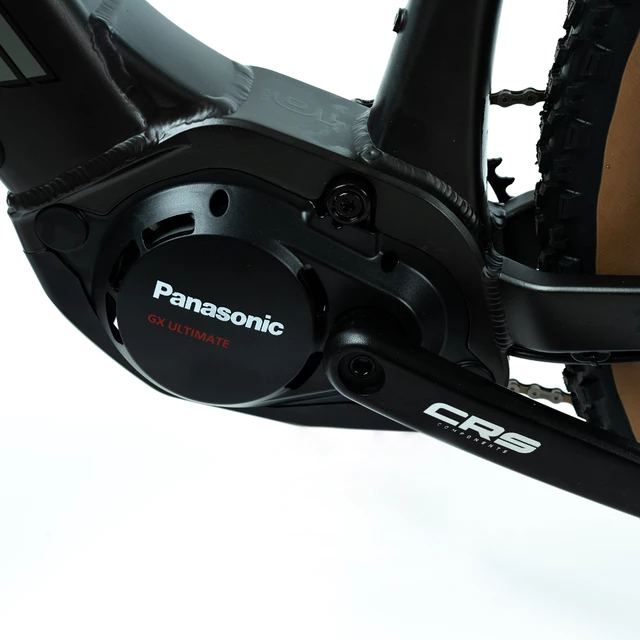

Ultra-Powerful PANASONIC Drive

The PANASONIC GX Ultimate is a sturdy, extremely powerful drive that can deal even with the most challenging uphill rides. Ideal for mountain bikes, the drive offers a torque of 95 Nm, features a torsional pedaling force sensor, and weighs only 2.95 kg.

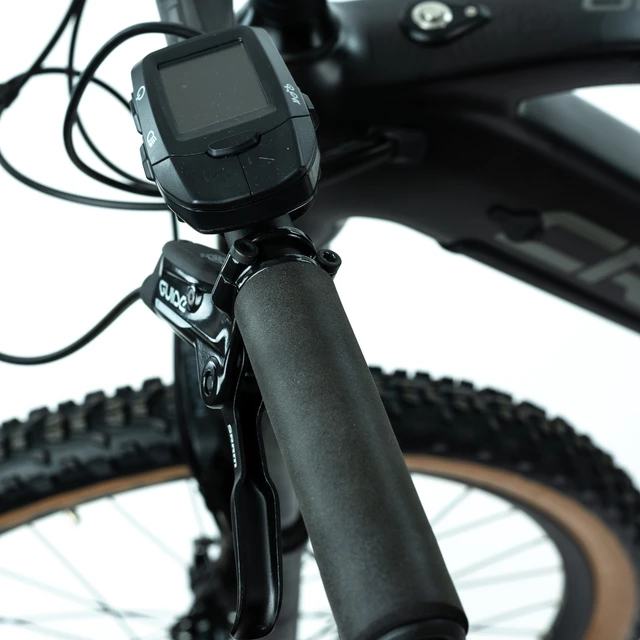

Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Apart from the three main assistance modes (HIGHSTANDARD and ECO), the bike also offers a dynamic AUTO mode, which adjusts the level of assistance to the initial torque of the rider. On the LCD screen, there’s also a USB port which allows you to charge your mobile device.

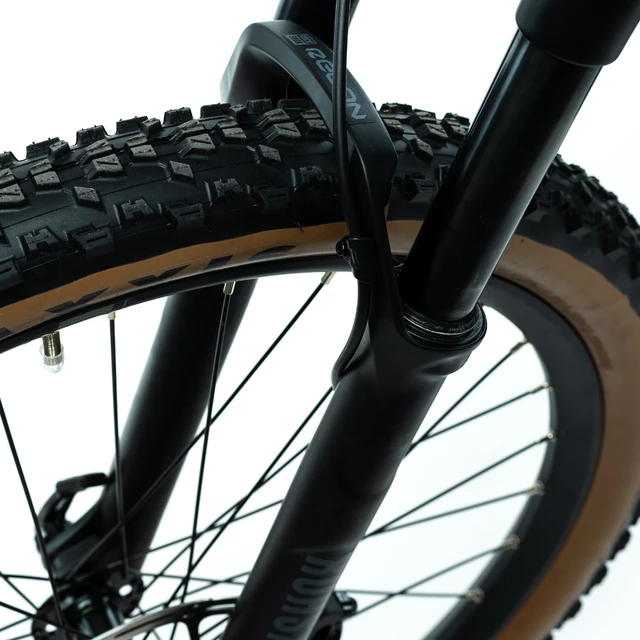

Air-Suspension Fork

The Mountain E-Bike Crussis ONE-Guera 10.9-M – 2024 features a ROCKSHOX FS Recon Silver RL Solo Air 27.5” air suspension fork with 120mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the crown.


Powerful and Reliable Battery

The LG Li-ion 36V/20Ah (720Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 170 km on a single charge (depending on the trail profile). Moreover, the battery features a BMS (Battery Management System) board, which prevents it from overheating, short-circuit and overcharging.


Top-Class Gear Shifter

SRAM Eagle technology allows for smooth and accurate shifting of gears, which you can rely on in every situation. Eagle is a revolutionary MTB technology as it features an ideal, single-chainring drive, which is lightweight, durable, easy to use (intuitive operation) and offers a variety of programs for all kinds of terrain.

The PG-1210 SX cassette is the only Eagle cassette designed to meet the ever-increasing demands on mountain bikes, making it perfect for challenging terrain riding.


Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.

E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.

Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

Alu 6061 (17”, 19“)

Motor

PANASONIC GX Ultimate, 250W (MAX 600W) 95 Nm

Battery

LG Li-ion 36 V/720 Wh (20 Ah), removable – can be charged separately

Charger

4 Ah

Distance range

Up to 170 km

Rear derailleur

SRAM SX Eagle

Gear shifter

SRAM NX Eagle

Number of speeds

1 x 12

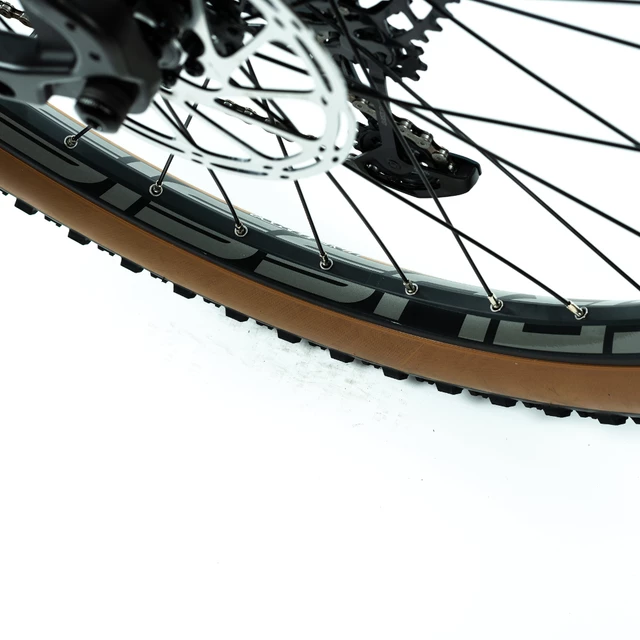

Cassette

SRAM CS-PG1210 Eagle, 11-50z

Chain

SRAM Eagle SX 12s

Fork

ROCKSHOX FS Recon Silver RL Solo Air 27.5", 120 mm travel

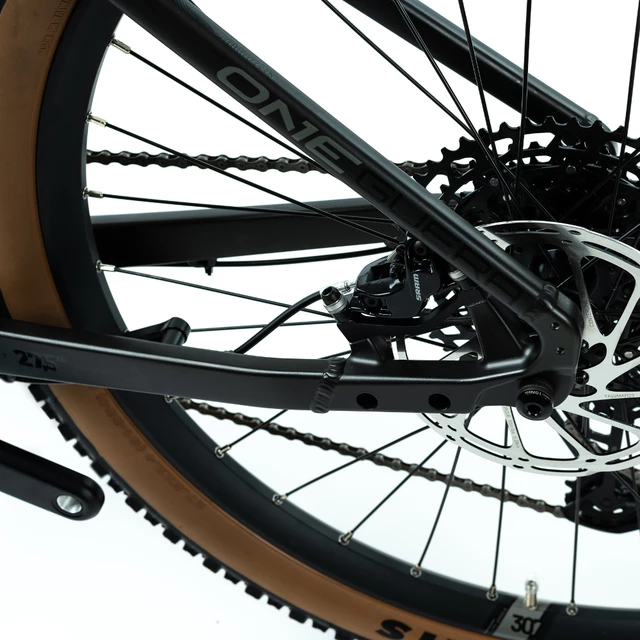

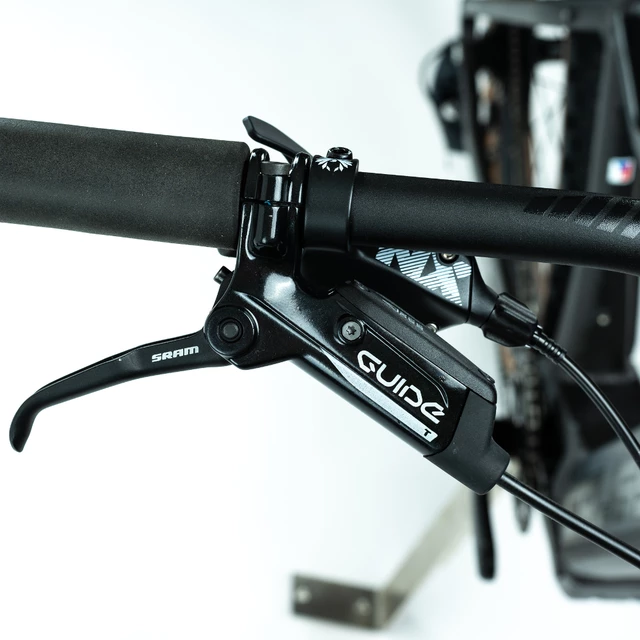

Brakes

SRAM Guide T (200/180 mm)

Control panel

PANASONIC LCD panel w/ USB Micro-B jack and 5 assistance modes (color screen)

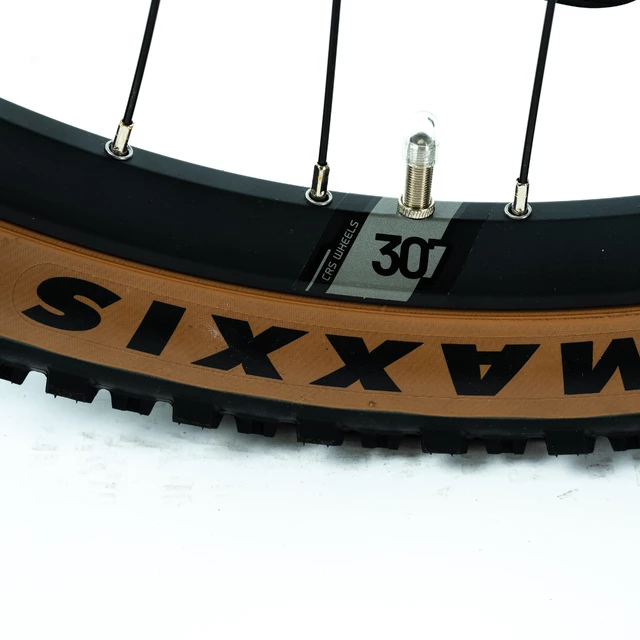

Tires

MAXXIS Ardent 27.5*2.40

Valve

AV

Rims

CRUSSIS 27.5", double-walled, lined, 30 mm

Hubs

CRUSSIS disc, wreath bearing, 32D, fixed axle (15x100 mm / 12 x 142 mm)

Headset

Tapered 1.5”

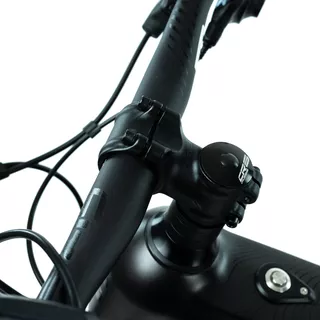

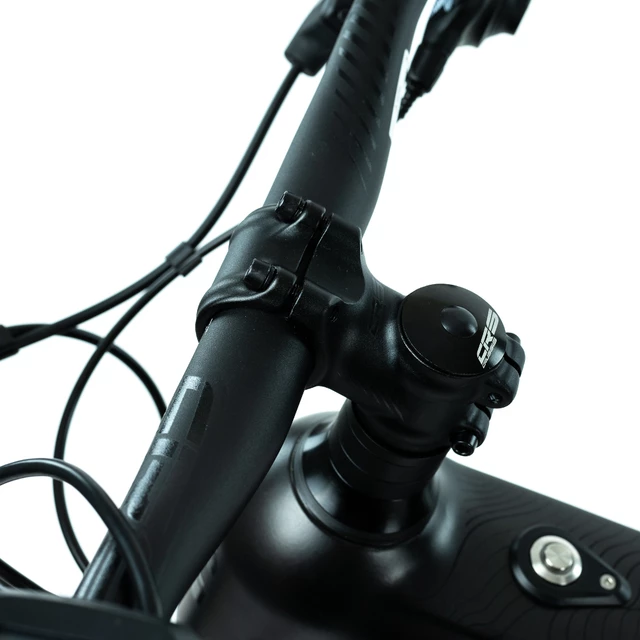

Stem

CRUSSIS Al, 50 mm, 7° angle

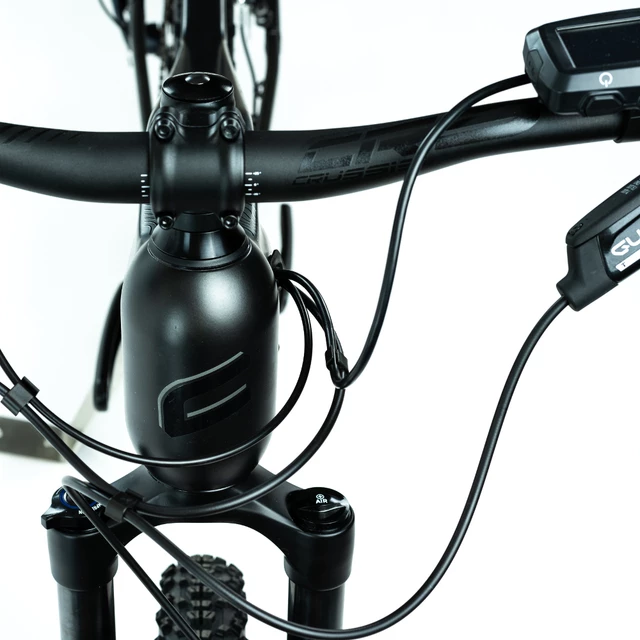

Handlebars

CRUSSIS Al, 31.8 mm, 720 mm

Grips

CRUSSIS 100% silicone

Pedals

WELLGO, alu w/ reflector

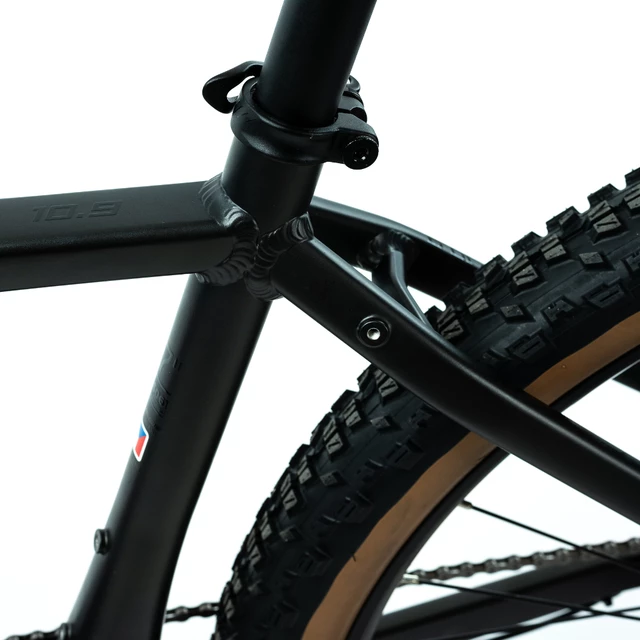

Seatpost

CRUSSIS w/ lock, 30.4 / 350 mm

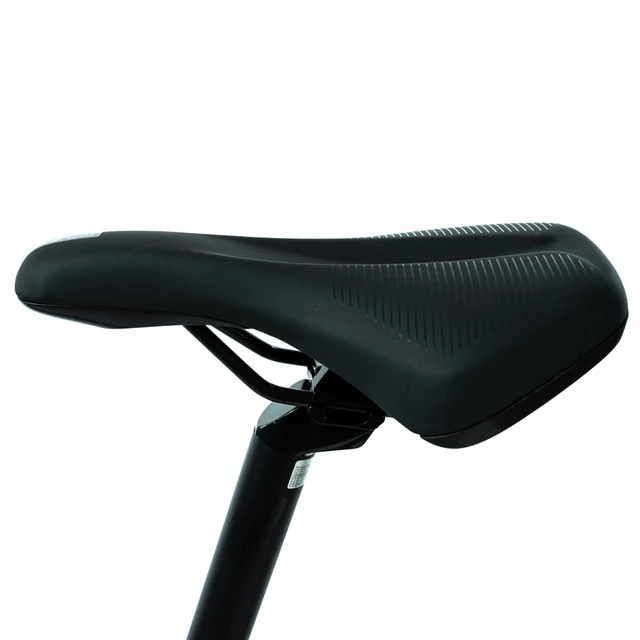

Seat

Selle ROYAL

Weight

There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store.

Max load capacity

120 kg


CRUSSIS e-bike size chart

Frame size Rider height
14″ 135-155 cm
15″ 150-165 cm
16″ 155-170 cm
17″ 160-175 cm
18″ 165-180 cm
19″ 170-185 cm
20″ 175-190 cm
21″ 180-195 cm
22″ 185-200+ cm


Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!

Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.



Product parameters

Battery (max. range 170 km), 20 Ah/720 Wh, LG Li-ion
Range 170 km
Motor (central drive), PANASONIC GX Ultimate
Drive Central
Program types 5 programs
Brakes Hydraulic
Motor output 250 W
Display PANASONIC LCD panel
Suspension travel 120 mm
Frame Al 6061
Gear shifting type lever
Number of speeds 12
Suspension suspension fork
Frame material Aluminium
Wheel size 27.5" (for users over 155 cm)
Fork ROCKSHOX FS Recon Silver RL R Solo Air 27.5", 120 mm
Rear Brake SRAM GUIDE T
Front Brake SRAM GUIDE T
Type of e-bike MTB
Rear hub CRUSSIS disc, industrial bearings, 32D, fixed axis 12x142mm
Front Hub CRUSSIS disc, industrial bearings, 32D, fixed axis 15x100mm
Rear tire MAXXIS Ardent 27.5 x 2.40
Weight limit (kg) 120 kg
Front Tire MAXXIS Ardent 27.5 x 2.40
Gear shifting SRAM NX Eagle Single Click
Year 2024
Rear Derailleur SRAM GX Eagle
Crank Set SRAM X-SYNC 2 38Z
Cassette SRAM CS-PG1210 Eagle, 11-50z
Chain SRAM Eagle SX 12s
Front Rim CRUSSIS 27,5", double-wall, sleeved, 30 mm
Rear rim CRUSSIS 27.5", double-wall, sleeved, 30 mm
Pedals WELLGO
Crankset CRUSSIS ISIS 170 mm
Handlebar grip CRUSSIS Al, 720 mm
Grips CRUSSIS silicone
Handlebar stem CRUSSIS Al, 50 mm, 7°
Head Tube Tappered 1.5"
Saddle Selle Royal
Seat post CRUSSIS with a lock, 30.4 / 350 mm
Drive Panasonic
