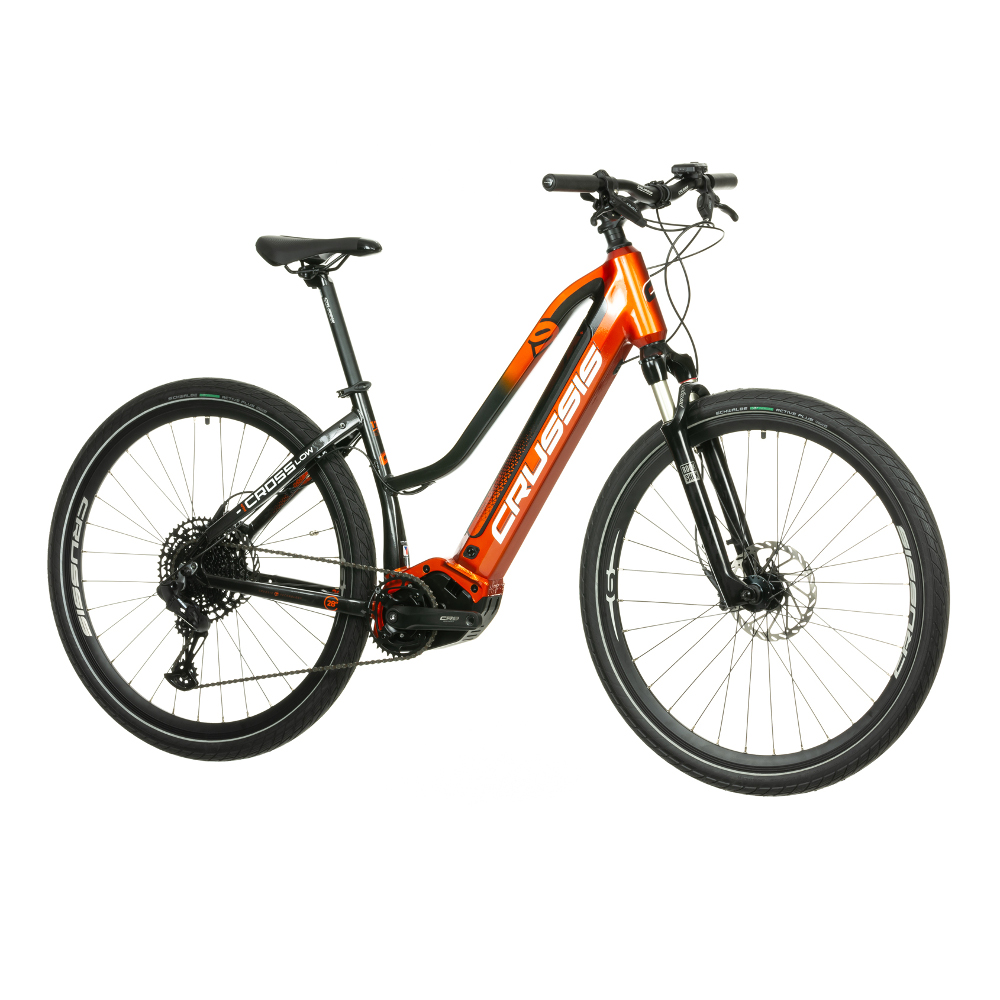

Women’s Cross E-Bike Crussis PAN-Cross Low 9.8-M – 2023 SPECIAL OFFER

Outstanding women’s cross e-bike with an ultra-powerful battery and an outstanding PANASONIC drive! This bike is well equipped and features hydraulic disc brakes and a suspension fork. more


Frame size:  19" (170-185 cm)

E-shop: In Stock -

Delivered within 3 days

2 239,60 €

2 839,60 € incl. VAT

-21%

You will save 600 €

Share Watchdog

Your order includes

  • 2-year warranty

Recommended accessories

Description

Suitable for paved roads, bike paths and moderate terrain, the Women’s Cross E-Bike Crussis PAN-Cross Low 9.8-M – 2023 is a well-equipped e-bike with an outstanding geometry with a lowered frame tube. It features an outstanding PANASONIC GX Ultimate drive that only weighs 2.95 kg and offers a high torque of 95 Nm while maintaining low battery consumption. This bike is powered by a fully-integrated, 20Ah Samsung battery, which allows for a distance range of up to 170 km, and, along with the center drive, makes it perfectly balanced. You can choose from 5 assistance modes on the color LCD display, where there is also a USB port which allows you to charge your mobile device.

The Women’s Cross E-Bike Crussis PAN-Cross Low 9.8-M – 2023 features 28” wheels and high-quality Schwalbe Energizer Active tires. You might also appreciate the 12-speed SRAM SX Eagle gear shifter. The hydraulic disc brakes and ROCKSHOX FS Paragon Gold air suspension fork with 65mm travel allow for a safe and comfortable ride on moderate terrain. A pleasure to ride, the Women’s Cross E-Bike Crussis PAN-Cross Low 9.8-M – 2023 is so good that nothing’s going to stop you.

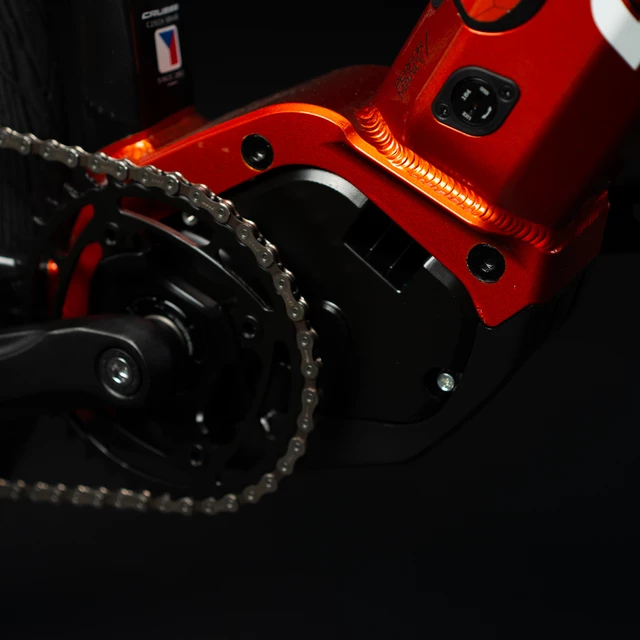

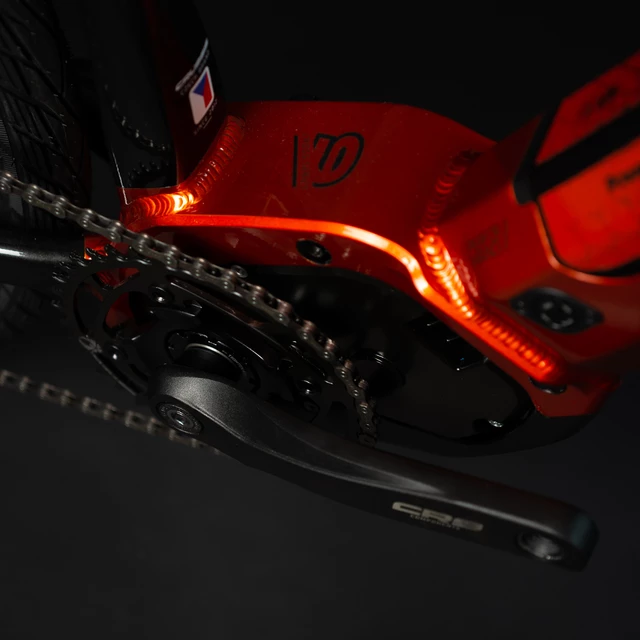

Ultra-Powerful PANASONIC Drive

The PANASONIC GX Ultimate is a sturdy, extremely powerful drive that can deal even with the most challenging uphill rides. Ideal for mountain bikes, he drive offers a torque of 95 Nm, features a torsional pedaling force sensor, and weighs only 2.95 kg.

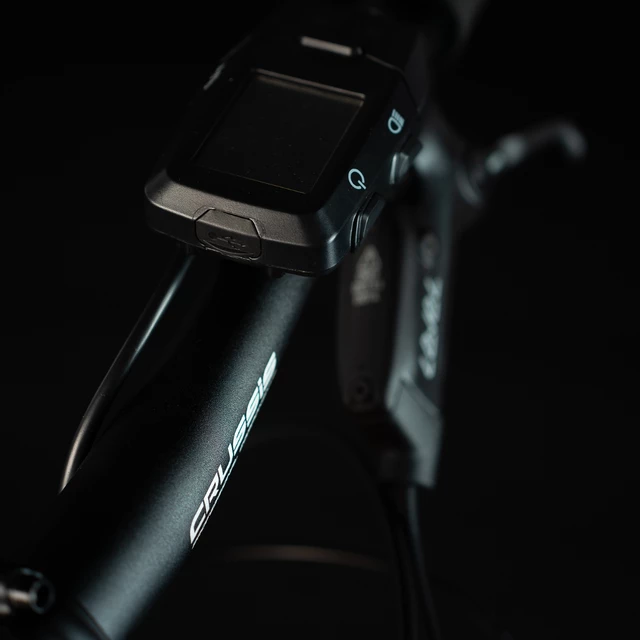

Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Apart from the three main assistance modes (HIGHSTANDARD and ECO), the bike also offers a dynamic AUTO mode, which adjusts the level of assistance to the initial torque of the rider. On the LCD screen, there’s also a USB port which allows you to charge your mobile device.

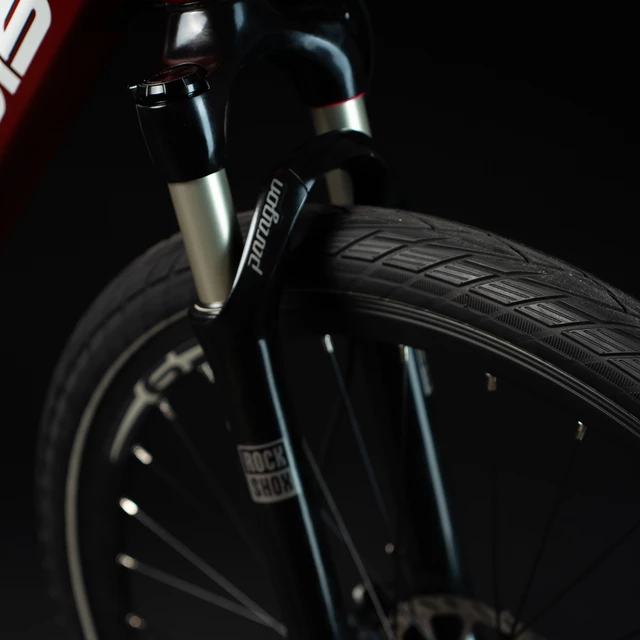

Air-Suspension Fork

The Women’s Cross E-Bike Crussis PAN-Cross Low 9.8-M – 2023 features a ROCKSHOX FS Paragon Gold RL R Solo Air 700c air suspension fork with 65mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the handlebars using the OneLoc Remote lever.


Powerful and Reliable Battery

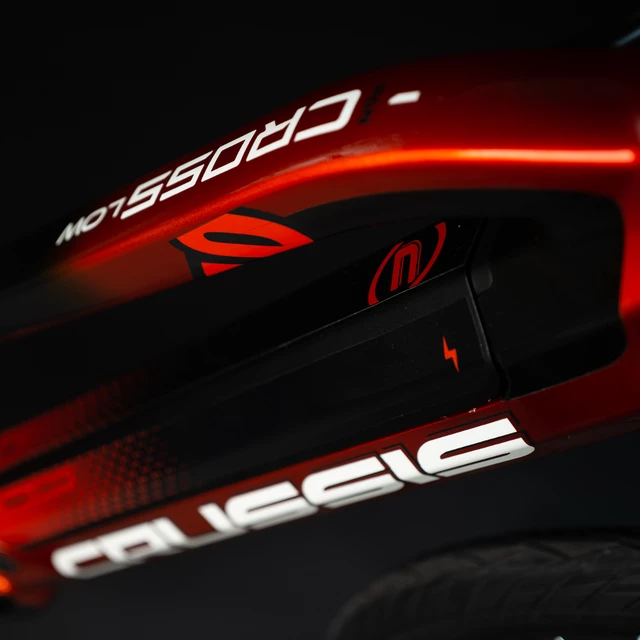

The Samsung 36V/20Ah (720Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 170 km on a single charge (depending on the trail profile). Moreover, the battery features a BMS (Battery Management System) board, which prevents it from overheating, short-circuit and overcharging.


Top-Class Gear Shifter

SRAM Eagle technology allows for smooth and accurate shifting of gears, which you can rely on in every situation. Eagle is a revolutionary MTB technology as it features an ideal, single-chainring drive, which is lightweight, durable, easy to use (intuitive operation) and offers a variety of programs for all kinds of terrain.

The PG-1210 SX cassette is the only Eagle cassette designed to meet the ever-increasing demands on mountain bikes, making it perfect for challenging terrain riding.


Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.


E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.


Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

Alu 6061 (17“, 19“)

Motor

PANASONIC GX Ultimate, center drive, 250W (max 500W), 95 Nm

Battery

Samsung Li-ion 36 V/20 Ah (720 Wh), removable – can be charged separately

Charger

4 A

Distance range

Up to 170 km

Rear derailleur

SRAM SX Eagle

Gear shifter

SRAM SX Eagle

Chain

SRAM Eagle SX 12s

Number of speeds

1 x 12

Cassette

SRAM CS-PG1210 Eagle

Fork

ROCKSHOX FS Paragon Gold RL R Solo Air 700c, 65 mm travel, lockout (handlebars)

Brakes

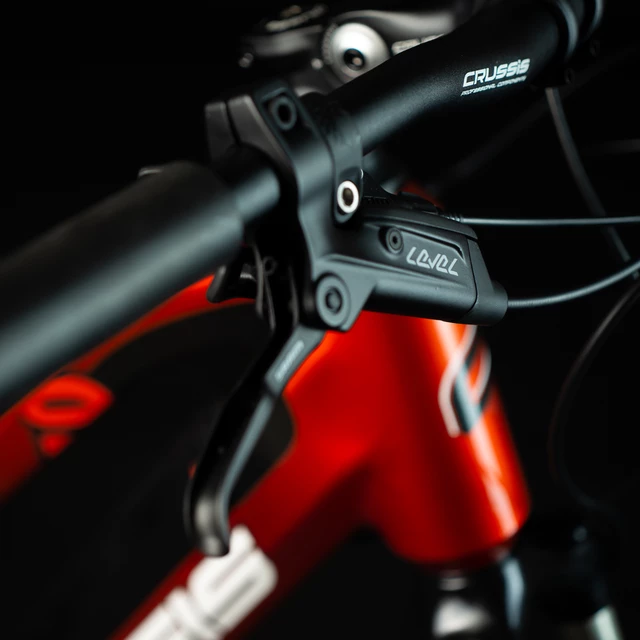

Hydraulic SRAM Level / SHIMANO BR-MT410, rotor 180/160 mm (front/rear)**

Control panel

Panasonic LCD (color display), USB Micro-B

Tires

SCHWALBE Energizer Active Plus 28*2.00

Valve

AV

Rims

CRUSSIS 28", double-walled, lined, 19 mm

Hubs

CRUSSIS disc, wreath bearing, 32D

Headset

Semi 11/8

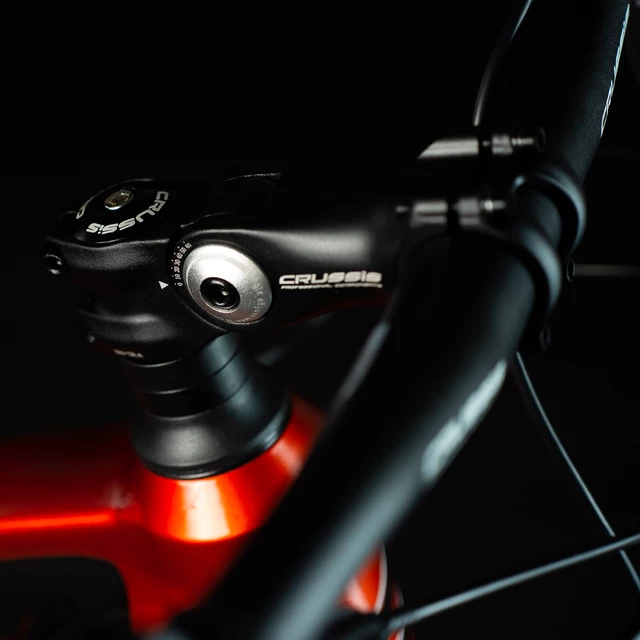

Stem

CRUSSIS Al, 105 mm, adjustable

Handlebars

CRUSSIS Al, 680 mm

Grips

CRUSSIS 100% silicone

Pedals

WELLGO, alu w/ reflector

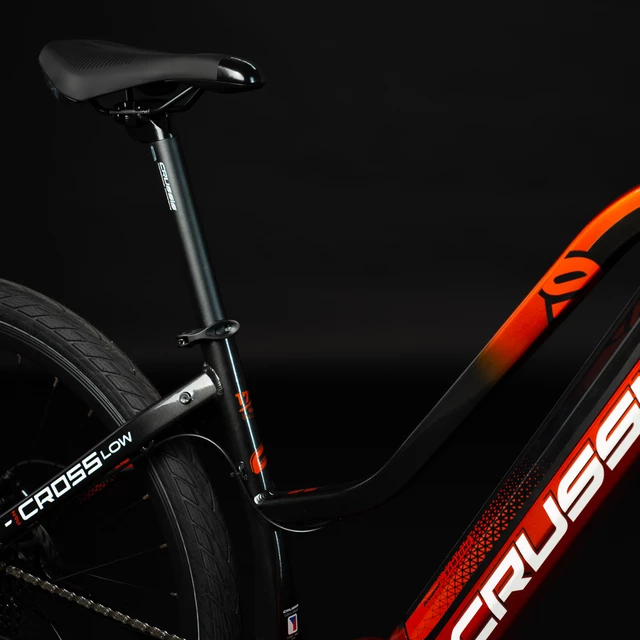

Seatpost

CRUSSIS w/ lock, 30.4 / 350 mm

Seat

Selle ROYAL

Weight

There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store.

Weight limit

120 kg


** For selected 2022 and 2023 models, Crussis uses two different types of mounting at the same performance level - SRAM and Shimano. For operational reasons, it is not possible to determine exactly which fitting brand the individual bike will be equipped with.


CRUSSIS e-bike size chart

Frame size Rider height
14″ 135-155 cm
15″ 150-165 cm
16″ 155-170 cm
17″ 160-175 cm
18″ 165-180 cm
19″ 170-185 cm
20″ 175-190 cm
21″ 180-195 cm
22″ 185-200+ cm


Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!


Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.



Product parameters

Motor (central drive), PANASONIC GX Ultimate
Battery 20 Ah/720 Wh, Samsung Li-Ion 36V, (max. range 170 km)
Wheel size 28
Number of speeds 12
Full capacity charging time 9 h
Program types 5 programs
Range 170 km
Motor output 250 W
Display PANASONIC LCD panel
Frame material Aluminium
Brakes Hydraulic
Frame Al 6061
Drive Central
Suspension suspension fork
Suspension travel 65 mm
Fork ROCKSHOX FS Paragon Gold RL Solo Air 700c, travel 65 mm
Rear Brake SRAM Level, SHIMANO Deore BR-MT410
Front Brake SRAM Level, SHIMANO Deore BR-MT410
Rear hub CRUSSIS disc, ball bearing, 32D
Front Hub CRUSSIS disc, ball bearing, 32D
Rear tire SCHWALBE Energizer Active Plus 28*2.00
Front Tire SCHWALBE Energizer Active Plus 28*2.00
Gear shifting SRAM SX Eagle
Gear shifting type lever
Rear Derailleur SRAM SX Eagle
Crank Set SRAM X-SYNC 2 38Z
Cassette SRAM CS-PG1210 Eagle, 11-50z
Chain SRAM Eagle SX 12s
Front Rim CRUSSIS 28", double-wall, sleeved, 19 mm
Rear rim CRUSSIS 28", double-wall, sleeved, 19 mm
Pedals WELLGO
Crankset 170 mm
Handlebar grip CRUSSIS Al, 680 mm
Grips CRUSSIS silicone
Handlebar stem CRUSSIS Al, 105 mm, adjustable
Saddle Selle Royal
Seat post CRUSSIS with a lock, 30.4 / 350 mm
Type of e-bike Cross
Drive Panasonic
Weight limit (kg) 120 kg
Year 2023
