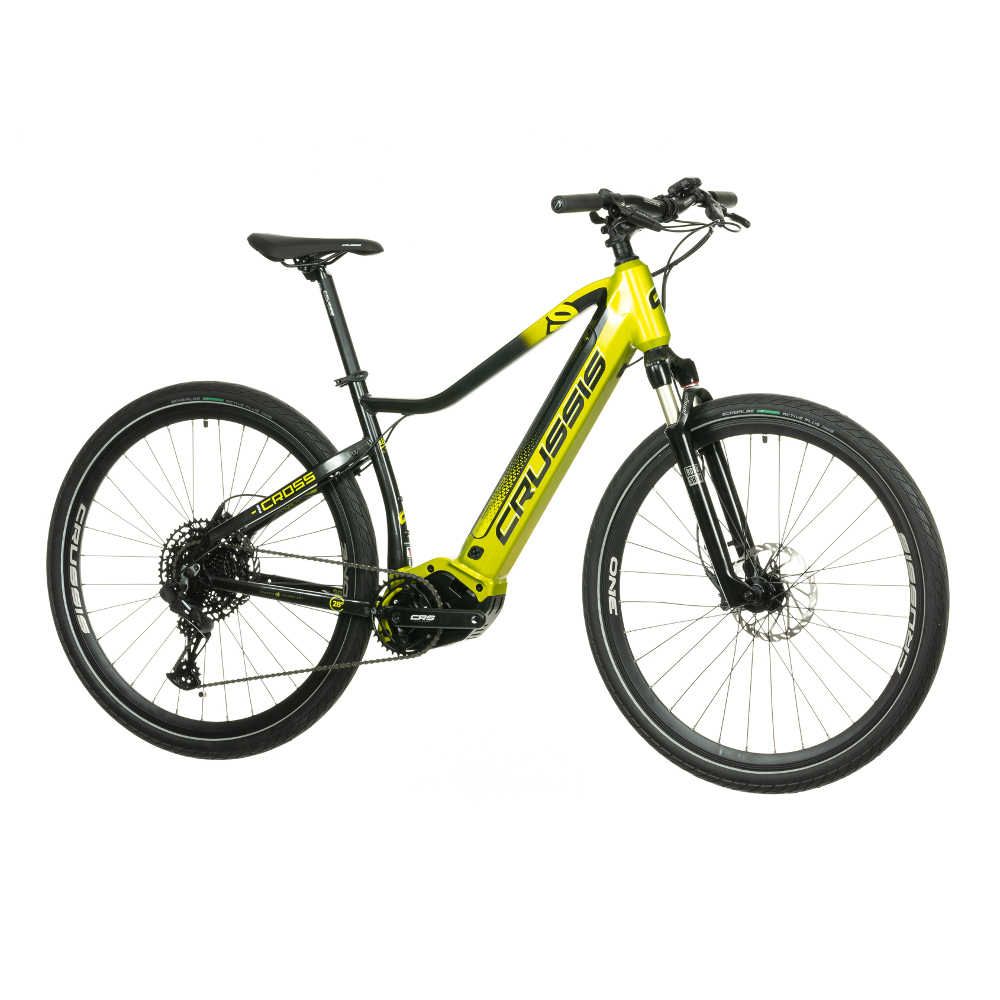

Outstanding cross e-bike with an ultra-powerful battery and an outstanding PANASONIC drive! This bike is well equipped and features hydraulic disc brakes and a suspension fork. more
2-year warranty
Suitable for paved roads, bike paths and moderate terrain, the Men’s Cross E-Bike Crussis PAN-Cross 9.8-M – 2023 is a well-equipped e-bike with an outstanding geometry. It features an outstanding PANASONIC GX Ultimate drive that only weighs 2.95 kg and offers a high torque of 95 Nm while maintaining low battery consumption. This bike is powered by a fully-integrated, 20Ah Samsung battery, which allows for a distance range of up to 170 km, and, along with the center drive, makes it perfectly balanced. You can choose from 5 assistance modes on the color LCD display, where there is also a USB port which allows you to charge your mobile device.
The Men’s Cross E-Bike Crussis PAN-Cross 9.8-M – 2023 features 28” wheels and high-quality Schwalbe Energizer Active tires. You might also appreciate the 12-speed SRAM SX Eagle gear shifter. The hydraulic disc brakes and ROCKSHOX FS Paragon Gold air suspension fork with 65mm travel allow for a safe and comfortable ride on moderate terrain. A pleasure to ride, the Men’s Cross E-Bike Crussis PAN-Cross 9.8-M – 2023 is so good that nothing’s going to stop you.

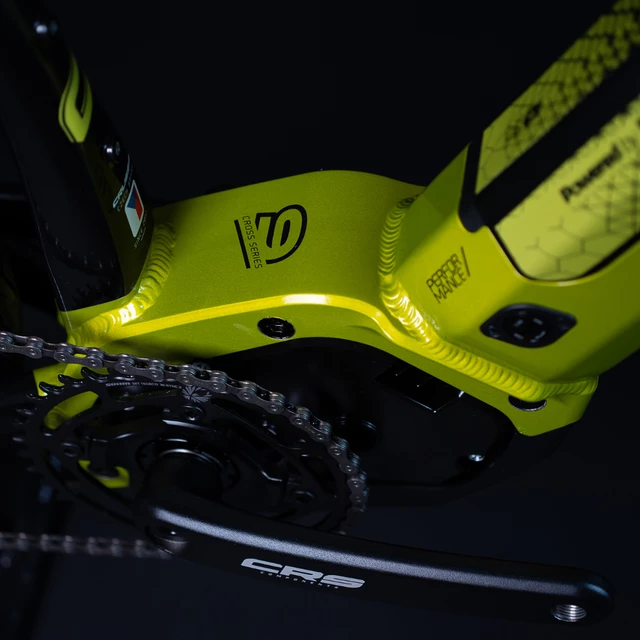

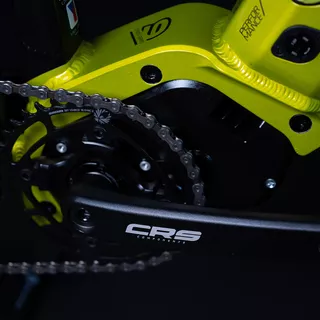

The PANASONIC GX Ultimate is a sturdy, extremely powerful drive that can deal even with the most challenging uphill rides. Ideal for mountain bikes, he drive offers a torque of 95 Nm, features a torsional pedaling force sensor, and weighs only 2.95 kg.

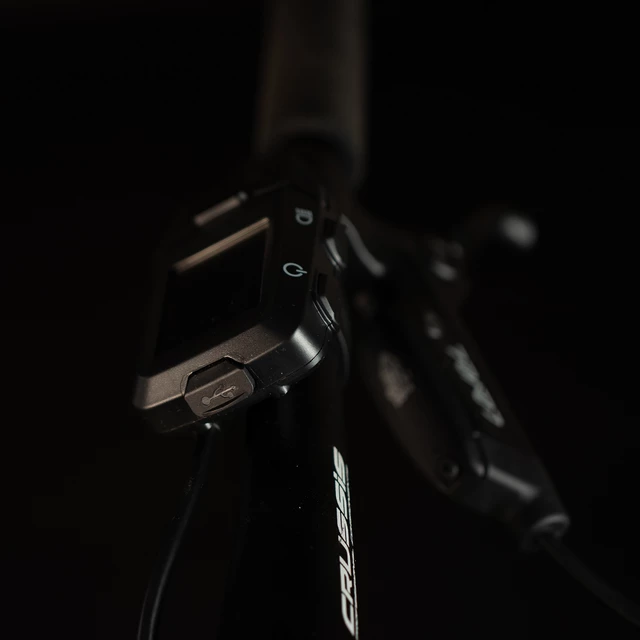

Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Apart from the three main assistance modes (HIGH, STANDARD and ECO), the bike also offers a dynamic AUTO mode, which adjusts the level of assistance to the initial torque of the rider. On the LCD screen, there’s also a USB port which allows you to charge your mobile device.

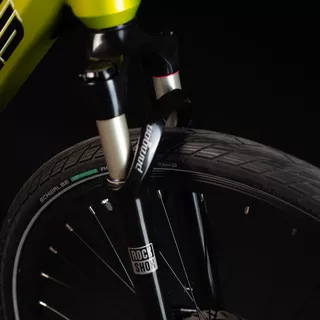

The Men’s Cross E-Bike Crussis PAN-Cross 9.8-M – 2023 features a ROCKSHOX FS Paragon Gold RL R Solo Air 700c air suspension fork with 65mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the handlebars using the OneLoc Remote lever.

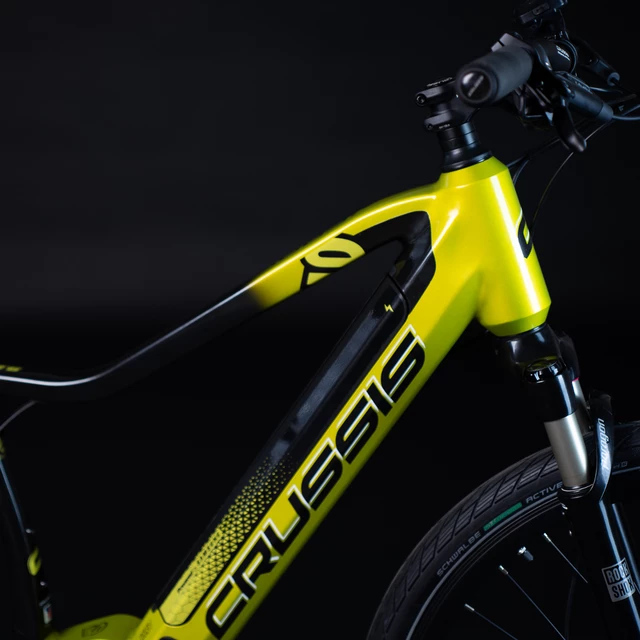

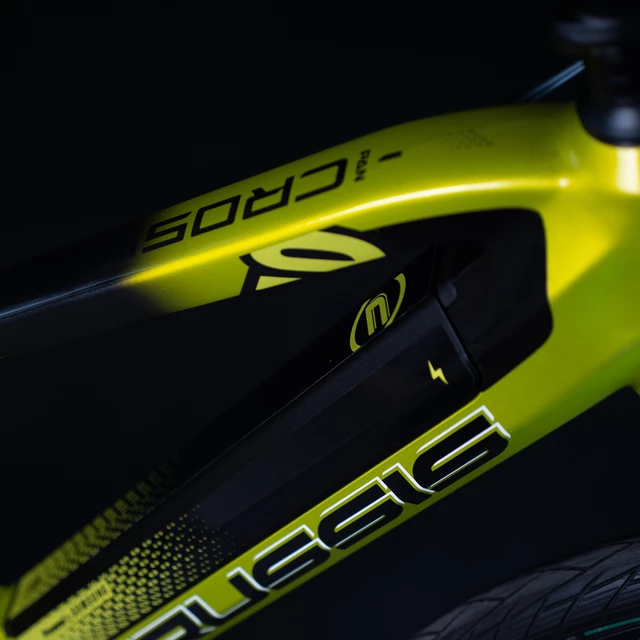

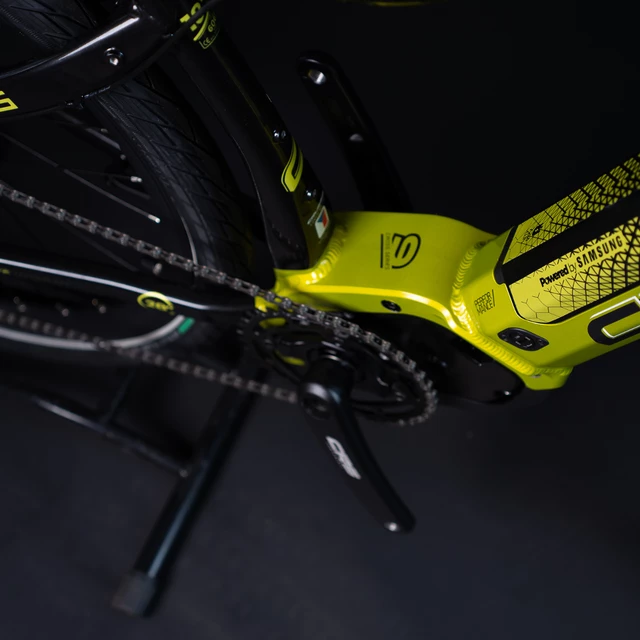

The Samsung 36V/20Ah (720Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 170 km on a single charge (depending on the trail profile). Moreover, the battery features a BMS (Battery Management System) board, which prevents it from overheating, short-circuit and overcharging.
SRAM Eagle technology allows for smooth and accurate shifting of gears, which you can rely on in every situation. Eagle is a revolutionary MTB technology as it features an ideal, single-chainring drive, which is lightweight, durable, easy to use (intuitive operation) and offers a variety of programs for all kinds of terrain.
The PG-1210 SX cassette is the only Eagle cassette designed to meet the ever-increasing demands on mountain bikes, making it perfect for challenging terrain riding.
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.
Our tips:Technical description:
Frame |
Alu 6061 (18“, 20“) |
Motor |
PANASONIC GX Ultimate, center drive, 250W (max 500W), 95 Nm |
Battery |
Samsung Li-ion 36 V/20 Ah (720 Wh), removable – can be charged separately |
Charger |
4 A |
Distance range |
Up to 170 km |
Rear derailleur |
SRAM SX Eagle |
Gear shifter |
SRAM SX Eagle |
Chain |
SRAM Eagle SX 12s |
Number of speeds |
1 x 12 |
Cassette |
SRAM CS-PG1210 Eagle, 11-50z |
Fork |
ROCKSHOX FS Paragon Gold RL R Solo Air 700c, 65 mm travel, lockout (handlebars) |
Brakes |

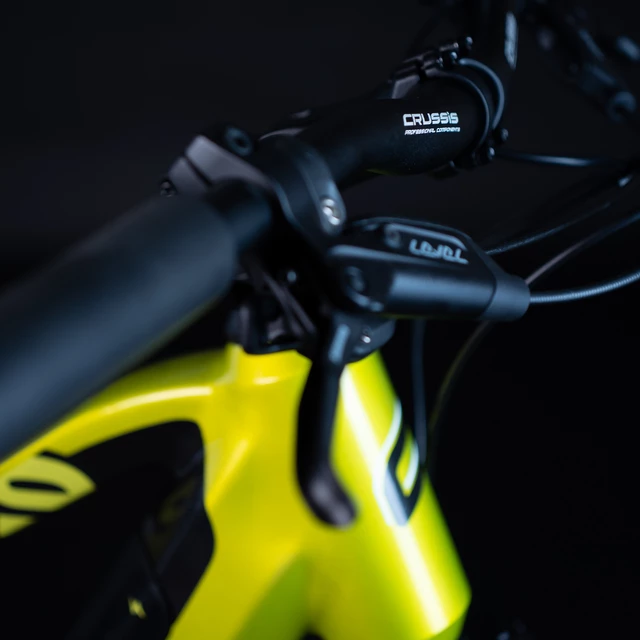

Hydraulic SRAM Level / SHIMANO BR-MT410, rotor 180/160 mm (front/rear)** |
Control panel |
Panasonic LCD (color display), USB Micro-B |
Tires |
SCHWALBE Energizer Active Plus 28*2.00 |
Valve |
AV |
Rims |
CRUSSIS 28", double-walled, lined, 19 mm |
Hubs |
CRUSSIS disc, wreath bearing, 32D |
Headset |
Semi 11/8 |
Stem |

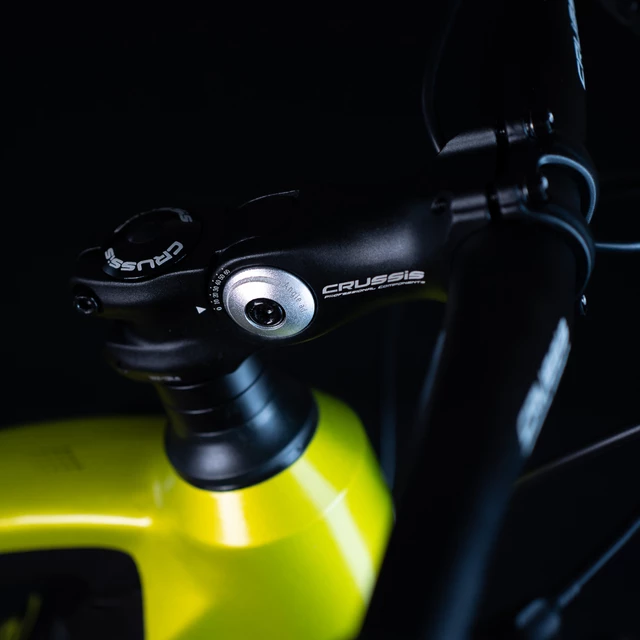

CRUSSIS Al, 105 mm, adjustable |
Handlebars |
CRUSSIS Al, 700 mm |
Grips |
CRUSSIS 100% silicone |
Pedals |
WELLGO, alu w/ reflector |
Seatpost |
CRUSSIS w/ lock, 30.4 / 350 mm |
Seat |
Selle ROYAL |
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
Weight limit |
120 kg |
** For selected 2022 and 2023 models, Crussis uses two different types of mounting at the same performance level - SRAM and Shimano. For operational reasons, it is not possible to determine exactly which fitting brand the individual bike will be equipped with.
CRUSSIS e-bike size chart
Frame size | Rider height |
14″ | 135-155 cm |
15″ | 150-165 cm |
16″ | 155-170 cm |
17″ | 160-175 cm |
18″ | 165-180 cm |
19″ | 170-185 cm |
20″ | 175-190 cm |
21″ | 180-195 cm |
22″ | 185-200+ cm |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
Motor | (central drive), PANASONIC GX Ultimate |
---|---|
Battery | 20 Ah/720 Wh, Samsung Li-Ion 36V, (max. range 170 km) |
Wheel size | 28 |
Number of speeds | 12 |
Full capacity charging time | 5 h |
Program types | 5 programs |
Range | 170 km |
Motor output | 250 W |
Display | PANASONIC LCD panel |
Frame material | Aluminium |
Brakes | Hydraulic |
Frame | Al 6061 |
Drive | Central |
Suspension | suspension fork |
Suspension travel | 65 mm |
Fork | ROCKSHOX FS Paragon Gold RL Solo Air 700c, travel 65 mm |
Rear Brake | SRAM Level, SHIMANO Deore BR-MT410 |
Front Brake | SRAM Level, SHIMANO Deore BR-MT410 |
Rear hub | CRUSSIS disc, ball bearing, 32D |
Front Hub | CRUSSIS disc, ball bearing, 32D |
Rear tire | SCHWALBE Energizer Active Plus 28*2.00 |
Front Tire | SCHWALBE Energizer Active Plus 28*2.00 |
Gear shifting | SRAM SX Eagle |
Gear shifting type | lever |
Rear Derailleur | SRAM SX Eagle |
Crank Set | SRAM X-SYNC 2 38Z |
Cassette | SRAM CS-PG1210 Eagle, 11-50z |
Chain | SRAM Eagle SX 12s |
Front Rim | CRUSSIS 28", double-wall, sleeved, 19 mm |
Rear rim | CRUSSIS 28", double-wall, sleeved, 19 mm |
Pedals | WELLGO |
Crankset | 170 mm |
Handlebar grip | CRUSSIS Al, 700 mm |
Grips | CRUSSIS silicone |
Handlebar stem | CRUSSIS Al, 105 mm, adjustable |
Saddle | Selle Royal |
Seat post | CRUSSIS with a lock, 30.4 / 350 mm |
Type of e-bike | Cross |
Drive | Panasonic |
Weight limit (kg) | 120 kg |
Year | 2023 |
