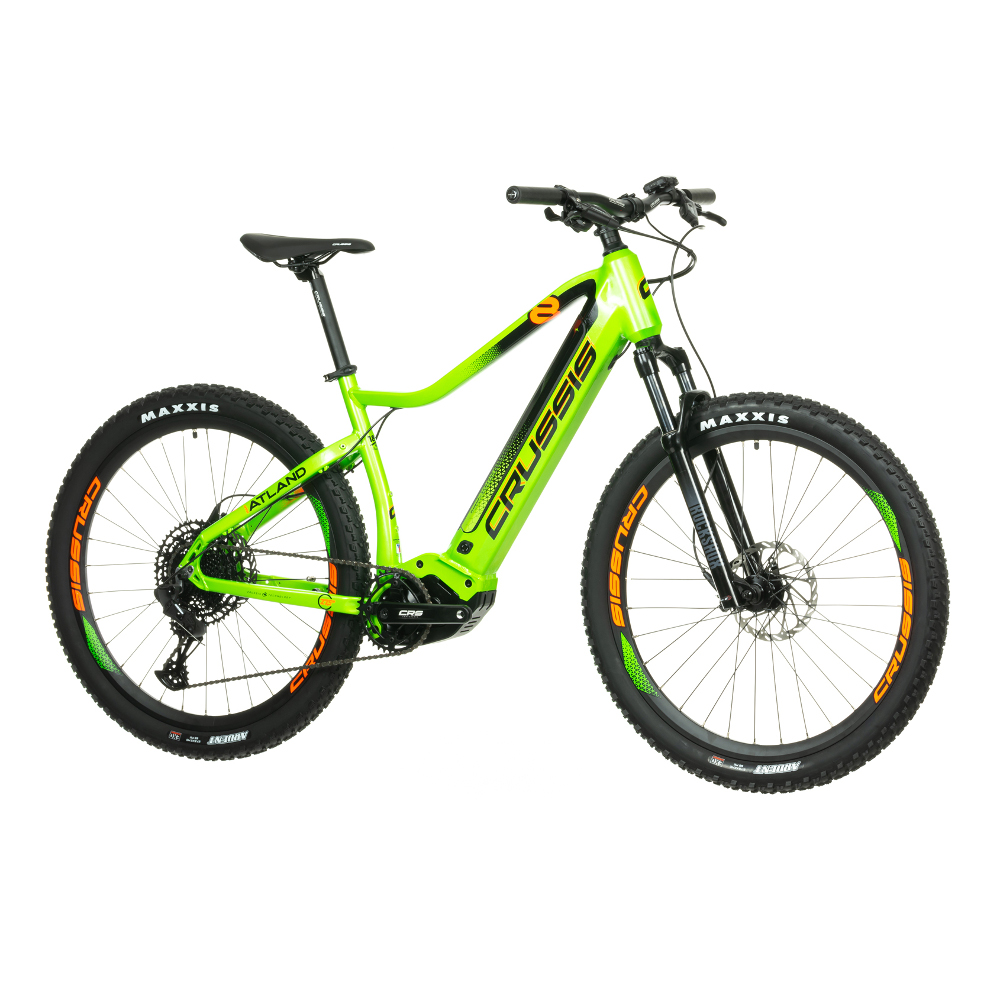

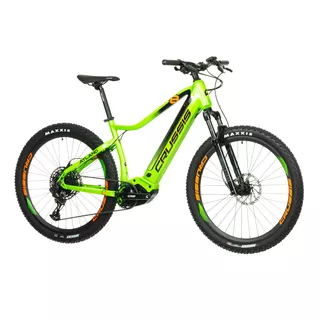

Mountain E-Bike Crussis PAN-Atland 8.8-M – 2023 SPECIAL OFFER

Powerful mountain e-bike with an outstanding PANASONIC drive, 27.5” wheels and an ultra-powerful battery! This well-equipped bike is well balanced and features a 12-speed SRAM derailleur set, top-shelf brakes and an air-suspension fork. more


Frame size:

2 303,60 €

2 559,60 € incl. VAT

-10%

You will save 256 €

Share Watchdog

Your order includes

  • 2-year warranty

Recommended accessories

Description

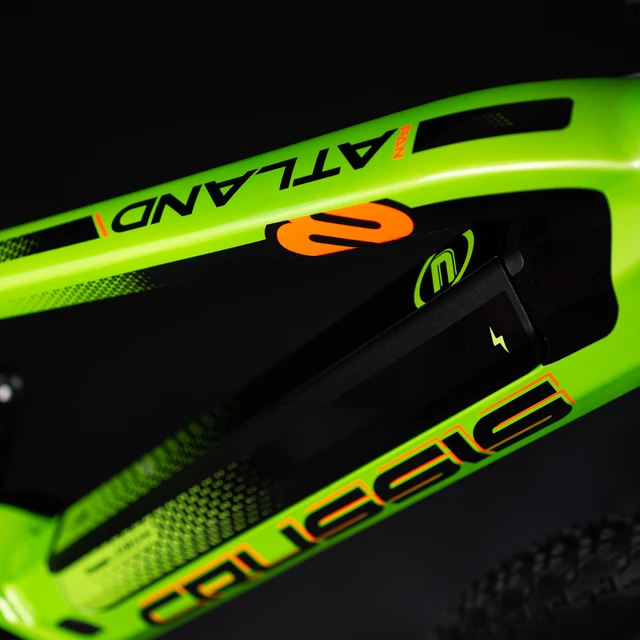

The Mountain E-Bike Crussis PAN-Atland 8.8-M – 2023 is a fully equipped mountain e-bike that will help you deal with any terrain. It features an outstanding Panasonic GX Power Plus drive that will come in handy on challenging trails. This bike is powered by a fully-integrated, 20Ah Samsung battery, which allows for a distance range of up to 170 km, and, along with the center drive, makes it perfectly balanced. On the color LCD screen, you can choose the level of assistance, including an auto mode which adjusts the level of assistance to the initial torque of the rider.

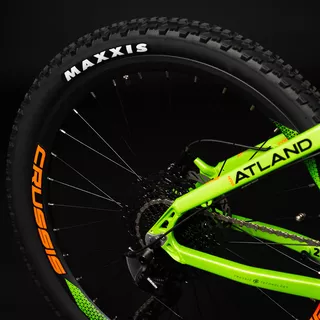

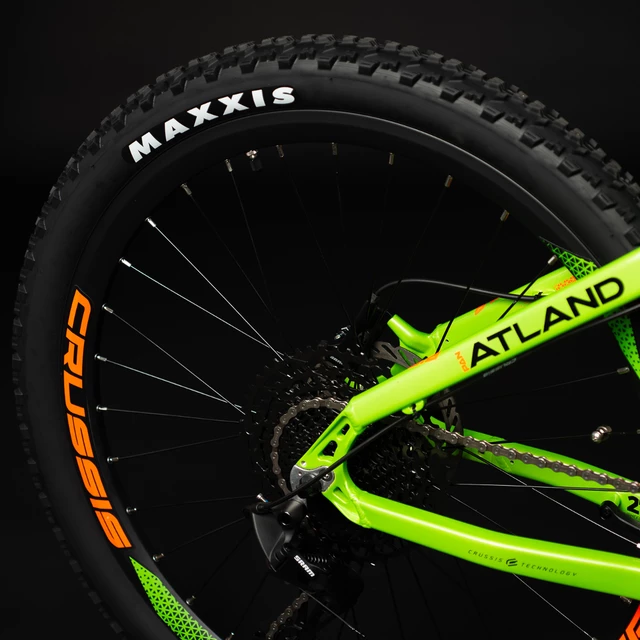

The Mountain E-Bike Crussis PAN-Atland 8.8-M – 2023 features 27.5” wheels and high-quality Maxxis Ardent tires that provide excellent adhesion on all surfaces. This bike also boasts a 12-speed SRAM SX Eagle gear shifter and a ROCKSHOX FS Judy Silver Air suspension fork. Just like any other women’s bike, this one too boasts an outstanding geometry with a lowered frame tube. The Mountain E-Bike Crussis PAN-Atland 8.8-M – 2023 is a great bike for an unbridled terrain ride.

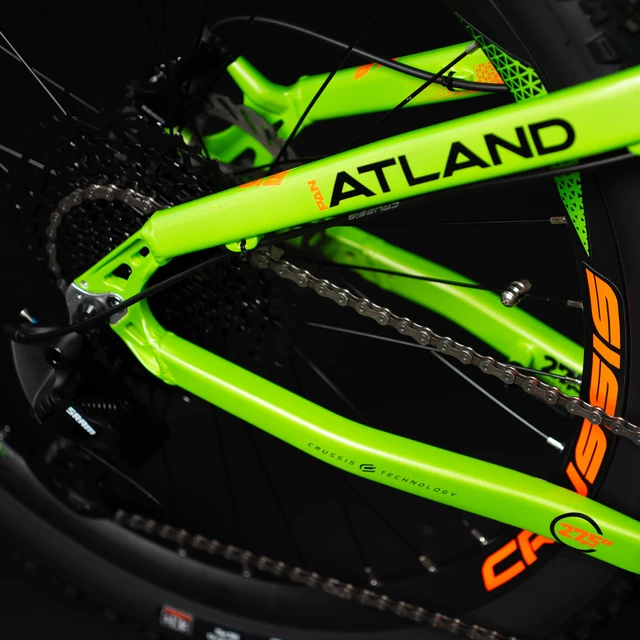

Top-Class Gear Shifter

SRAM Eagle technology allows for smooth and accurate shifting of gears, which you can rely on in every situation. Eagle is a revolutionary MTB technology as it features an ideal, single-chainring drive, which is lightweight, durable, easy to use (intuitive operation) and offers a variety of programs for all kinds of terrain.

The PG-1210 SX cassette is the only Eagle cassette designed to meet the ever-increasing demands on mountain bikes, making it perfect for challenging terrain riding.

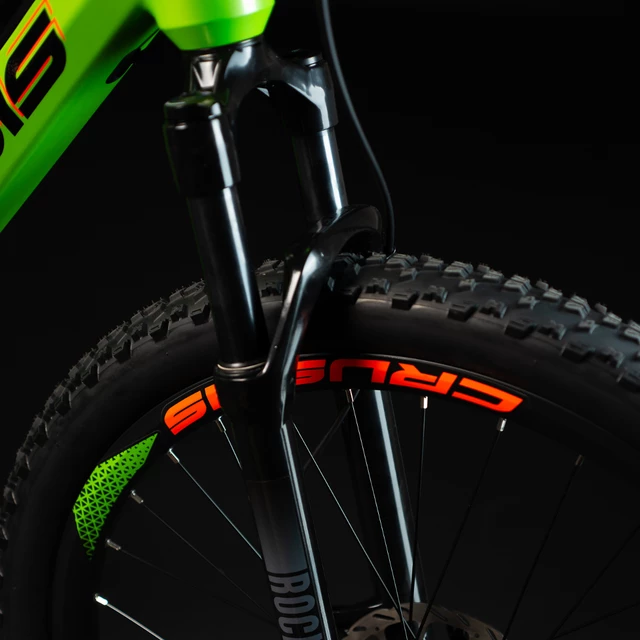

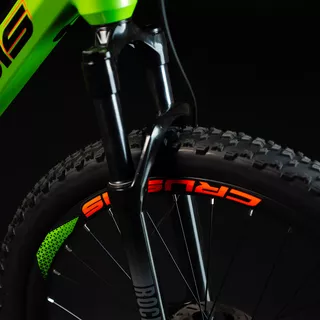

Air-Suspension Fork

The Mountain E-Bike Crussis PAN-Atland 8.8-M – 2023 features a ROCKSHOX FS Judy Silver TK R Solo Air 27.5” air suspension fork with 100mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the crown.

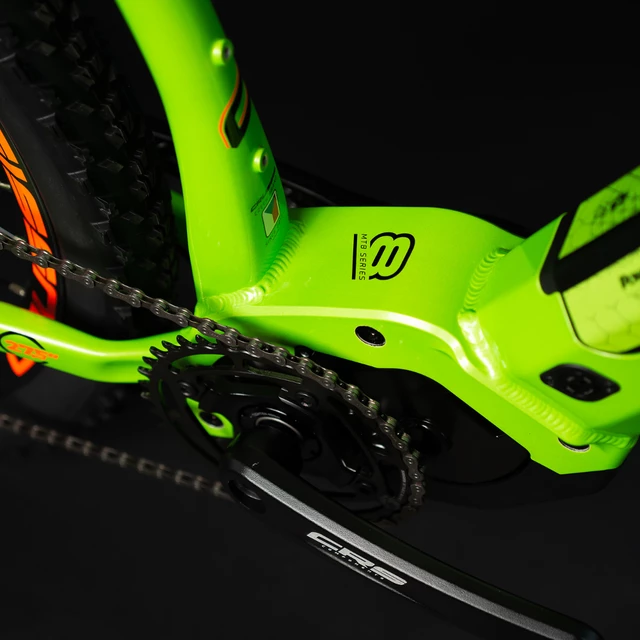

Powerful PANASONIC Drive

The PANASONIC GX Power Plus is a reliable drive for riders who need more assistance, especially while riding on a challenging terrain. It’s ideal for sports and trekking bikes as it offers outstanding performance even on forest or gravel roads. The drive offers a torque of 75 Nm, features a torsional pedaling force sensor, and weighs only 3.2 kg.

Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Apart from the three main assistance modes (HIGHSTANDARD and ECO), the bike also offers a dynamic AUTO mode, which adjusts the level of assistance to the initial torque of the rider. On the LCD screen, there’s also a USB port which allows you to charge your mobile device.


Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.

E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.

Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

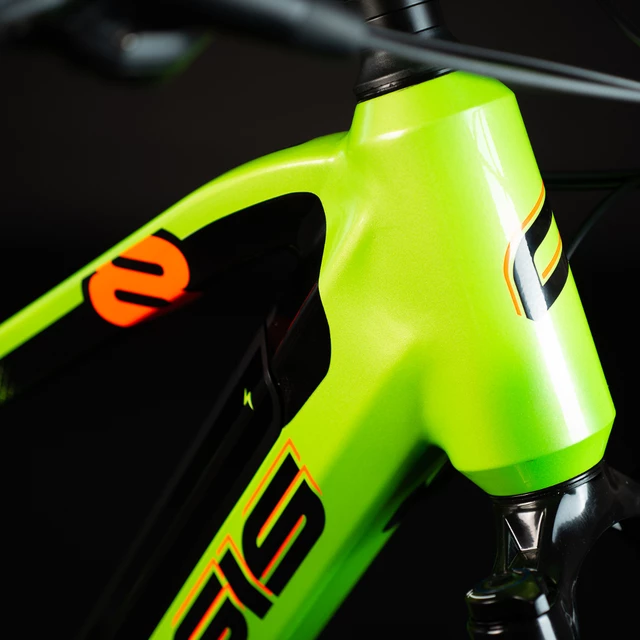

Frame

Alu 6061 (18“, 20“)

Motor

PANASONIC GX Power Plus, 250W (MAX 500W), 75 Nm

Battery

Samsung Li-ion 36 V/720 Wh (20 Ah), removable – can be charged separately

Charger

4 Ah

Distance range

Up to 170 km

Rear derailleur

SRAM SX Eagle

Gear shifter

SRAM SX Eagle

Number of speeds

1 x 12

Cassette

SRAM CS-PG1210 Eagle, 11-50z

Chain

SRAM Eagle SX 12s

Fork

ROCKSHOX FS Judy Silver TK Solo Air 27.5", 100 mm travel

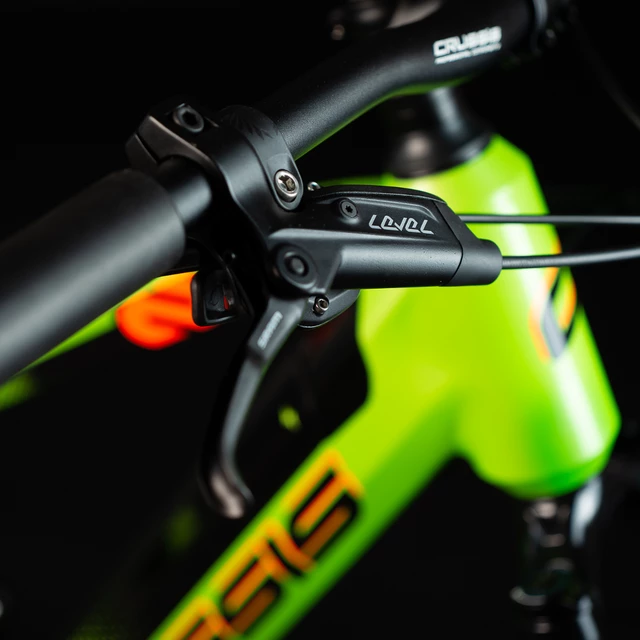

Brakes

Hydraulic SRAM Level / SHIMANO Deore BR-M410, rotor 180 mm (front), 160 mm (rear)**

Control panel

Panasonic LCD panel w/ color screen, USB Micro-B

Tires

MAXXIS Ardent 27.5*2.40

Valve

AV

Rims

CRUSSIS 27.5", double-walled, lined, 25 mm

Hubs

CRUSSIS disc, wreath bearing, 32D

Headset

Semi 11/8

Stem

CRUSSIS Al, 60 mm, fixed

Handlebars

CRUSSIS Al, 760 mm

Grips

CRUSSIS 100% silicone

Pedals

WELLGO, alu w/ reflector

Seatpost

CRUSSIS w/ lock, 30.4 / 350 mm

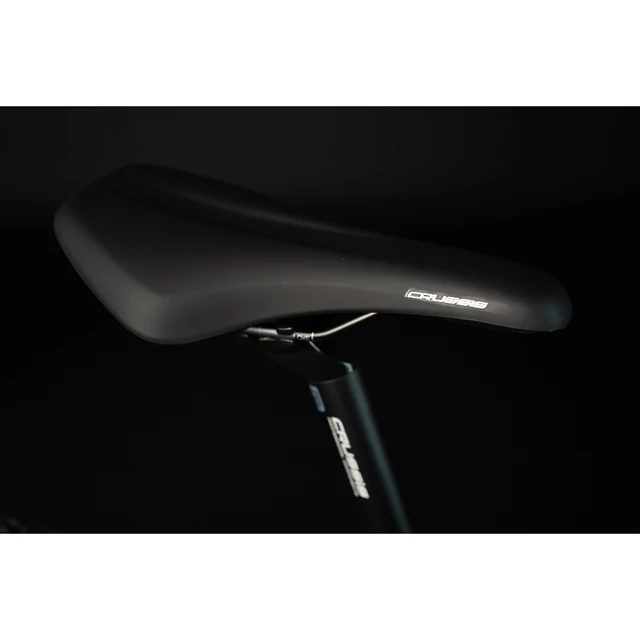

Seat

Selle ROYAL

Weight

There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store.

Weight limit

120 kg


** For selected 2022 and 2023 models, Crussis uses two different types of mounting at the same performance level - SRAM and Shimano. For operational reasons, it is not possible to determine exactly which fitting brand the individual bike will be equipped with.

CRUSSIS e-bike size chart

Frame size Rider height
14″ 135-155 cm
15″ 150-165 cm
16″ 155-170 cm
17″ 160-175 cm
18″ 165-180 cm
19″ 170-185 cm
20″ 175-190 cm
21″ 180-195 cm
22″ 185-200+ cm


Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!

Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.


Video


Product parameters

Battery 20 Ah/720 Wh, Samsung Li-Ion 36V, (max. range 170 km)
Range 170 km
Full capacity charging time 5 h
Motor (central drive), PANASONIC GX Power Plus
Drive Central
Program types 5 programs
Brakes Hydraulic
Motor output 250 W
Display PANASONIC LCD panel
Suspension travel 100 mm
Frame Al 6061
Gear shifting type lever
Number of speeds 12
Suspension suspension fork
Frame material Aluminium
Wheel size 27.5" (for users over 155 cm)
Fork ROCKSHOX FS Judy Silver TK Solo Air 27,5", 100 mm
Rear Brake SHIMANO Deore BR-MT410, SRAM Level
Front Brake SHIMANO Deore BR-MT410, SRAM Level
Type of e-bike MTB
Rear hub CRUSSIS disc, ball bearing, 32D
Front Hub CRUSSIS disc, ball bearing, 32D
Rear tire MAXXIS Ardent 27.5 x 2.40
Weight limit (kg) 120 kg
Front Tire MAXXIS Ardent 27.5 x 2.40
Gear shifting SRAM SX Eagle
Year 2023
Rear Derailleur SRAM SX Eagle
Crank Set SRAM X-SYNC 2 38Z
Cassette SRAM CS-PG1210 Eagle, 11-50z
Chain SRAM Eagle SX 12s
Front Rim CRUSSIS 27,5", double-wall, sleeved, 25mm
Rear rim CRUSSIS 27.5", double-wall, sleeved, 25mm
Pedals WELLGO
Crankset CRUSSIS ISIS 170 mm
Handlebar grip CRUSSIS Al, 760 mm
Grips CRUSSIS silicone
Handlebar stem CRUSSIS Al, 60 mm, fixed
Saddle Selle Royal
Seat post CRUSSIS with a lock, 30.4 / 350 mm
Drive Panasonic
