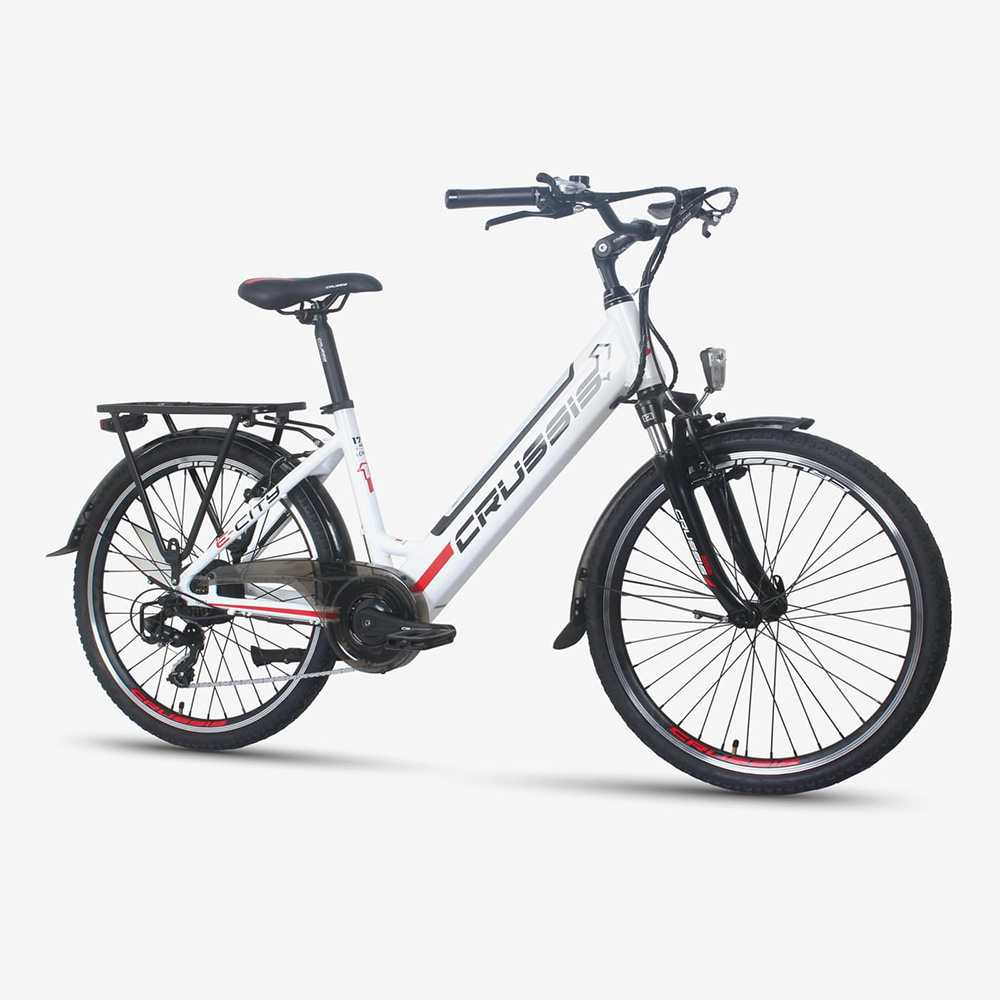

Urban E-Bike Crussis e-City 1.17-S – 2023 SPECIAL OFFER

Outstanding urban bike with larger wheels and fully integrated high-capacity battery, a kickstand, fenders and a rear rack. Frame designed for frequent get-on/off. more


Frame size:

1 231,60 €

1 539,60 € incl. VAT

-20%

You will save 308 €

Share Watchdog

Your order includes

  • 2-year warranty

Recommended accessories

Description

Are you looking for a reliable bike for riding to work, in-town riding or easy trips? Then the Urban E-Bike Crussis e-City 1.17-S – 2023 is the way to go! The aluminum frame was designed to make getting on/off the bike as easy as possible, making it suitable for seniors and/or persons with limited mobility.

The fully-integrated, 17.5Ah, high-capacity battery can last up to 140 km, which is more than enough in city traffic. The drive is placed in the rear hub. You can adjust the assistance on the LED panel on the handlebars. Just like all the e-City bikes, the e-City 1.17-S, too, has 26” wheels. And since it’s an urban bike, it comes fully equipped, featuring lights, fenders and a rear rack!


Invisible Battery

The Samsung Li-Ion 36V/17.5Ah (630Wh) battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (together with the center drive) well-balanced. The battery allows for a distance range of up to 140 km on a single charge (depending on the trail profile). Moreover, the battery features a BMS (Battery Management System) board, which prevents it from overheating, short-circuit and overcharging.


Easy Get-On/Off

An aluminum frame with a lower tube allows for easy and safe get on/off, which will come in handy not only in city traffic.

Suitable for both men and women, the frame comes in two sizes (17” and 19”).


Equipped for City Traffic

If you’re looking for a reliable bike for riding to work or in-town riding in any weather, Crussis urban e-bikes are the way to go. Since they come with fenders (front and rear), neither a light spring rain nor a summer storm will be a problem. You might also appreciate the front and rear lights and the rear rack, to which you can attach all kinds of bags as well as a basket. Traveling has never been easier.


Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.


E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.


Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

Alu 6061 (17“, 19")

Drive

Bafang 250 W / 500 W, 32 Nm, in rear hub

Battery

Samsung Li-Ion 36V / 630 Wh (17.5 Ah), removable – can be charged separately

Charger

2 Ah

Distance range

Up to 140 km

Rear derailleur

SHIMANO Tourney RD-TY300

Gear shifter

Shimano Tourney SL-TX50-7R

Number of speeds

1 x 7

Cassette

SHIMANO MF-TZ500-7

Chain

KMC Z7

Fork

SR-SUNTOUR CR85-V 26", NO LOCK, 50 mm travel

Brakes

TEKTRO V-Brake

Control

LED panel, 5 assistance modes

Tires

KENDA 26*1.75 (559-47), black

Valve

AV

Rims

CRUSSIS 26", double-walled, lined, 36D

Hubs

CRUSSIS, wreath bearing, 32D, BAFANG w/ motor

Headset

Semi 11/8

Stem

CRUSSIS Al, 90 mm, adjustable

Handlebars

CRUSSIS Al 25.4 mm, 620 mm width

Grips

CRUSSIS ergonomic w/ sleeve

Seatpost

CRUSSIS w/ lock, 31.6, 350 mm

Accessories

Lights, kickstand, fenders, rear rack

Weight

There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store.

Weight limit

120 kg


CRUSSIS e-bike size chart 2022/2023

Frame size Rider height
14″ 135-155 cm
15″ 150-165 cm
16″ 155-170 cm
17″ 160-175 cm
18″ 165-180 cm
19″ 170-185 cm
20″ 175-190 cm
21″ 180-195 cm
22″ 185-200+ cm


Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!


Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.


Video


Product parameters

Motor (rear drive), Bafang
Battery Samsung Integrated 17,5 Ah / 630Wh, (max. range 140 km)
Wheel size 26
Number of speeds 7
Program types 5 programs
Motor output 250 W
Range 140 km
Display LED
Frame Alu 6061
Frame material Aluminium
Brakes V-brake
Drive Rear wheel
Suspension suspension fork
Suspension travel 50 mm
Fork SR-SUNTOUR CR85-V 26", NO LOCK
Rear Brake Tektro V-brake
Front Brake Tektro V-brake
Rear hub BAFANG with drive
Front Hub CRUSSIS, ball bearing, 36D
Rear tire Kenda 26*1.75
Front Tire Kenda 26*1.75
Gear shifting SHIMANO Tourney SL-TX50-7R
Gear shifting type lever
Rear Derailleur Shimano Tourney RD-TY300
Crank Set CRUSSIS 42/32/22T
Cassette SHIMANO MF-TZ500
Chain KMC Z7
Front Rim CRUSSIS 26", double-wall, sleeved, 19 mm
Rear rim CRUSSIS 26", double-wall, sleeved, 19mm
Pedals WELLGO
Crankset 170 mm
Handlebar grip CRUSSIS Al, 620 mm
Grips CRUSSIS ergonomic with a collar
Handlebar stem CRUSSIS Al, 90 mm, adjustable
Seat post CRUSSIS with a lock, 31.6 / 350 mm
Mudguards Yes
Type of e-bike Urban
Drive Bafang
Weight limit (kg) 120 kg
Year 2023
