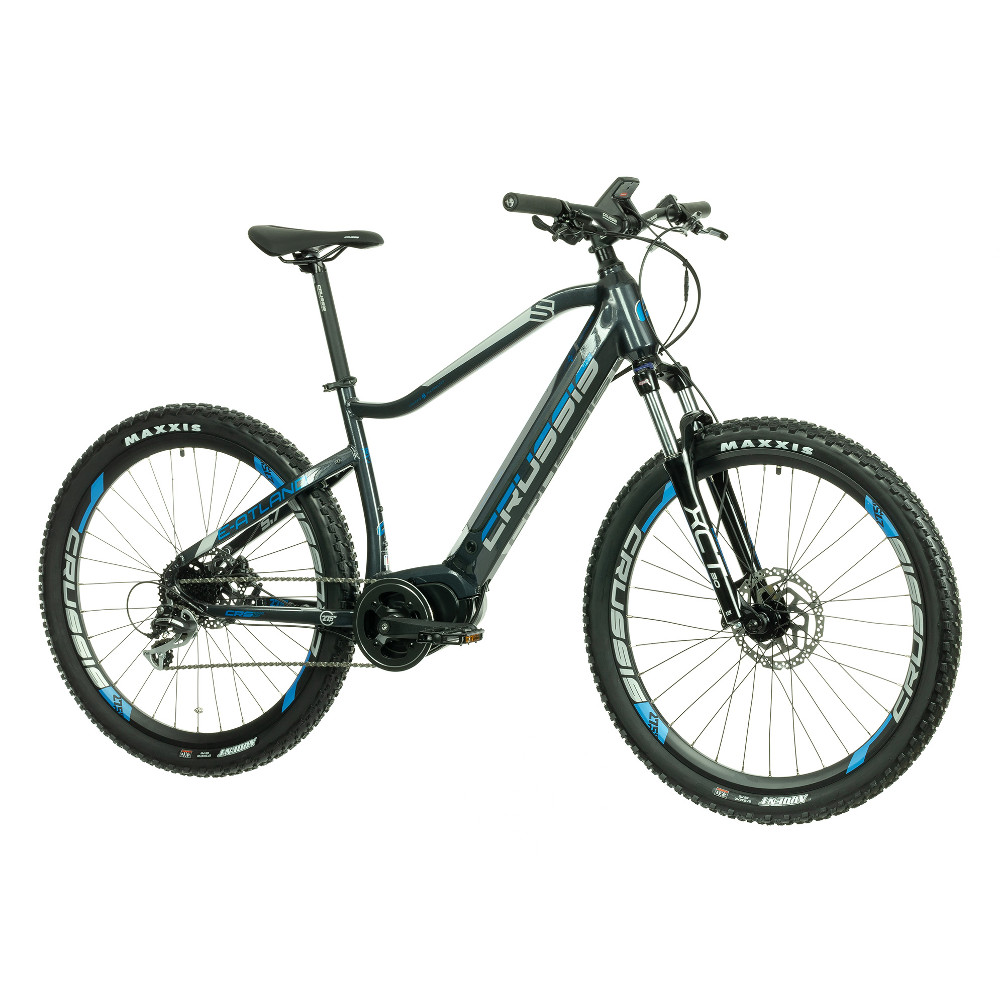

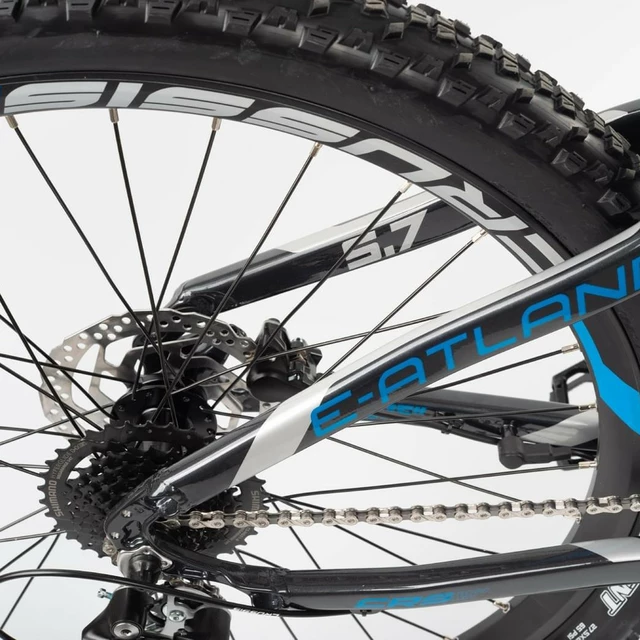

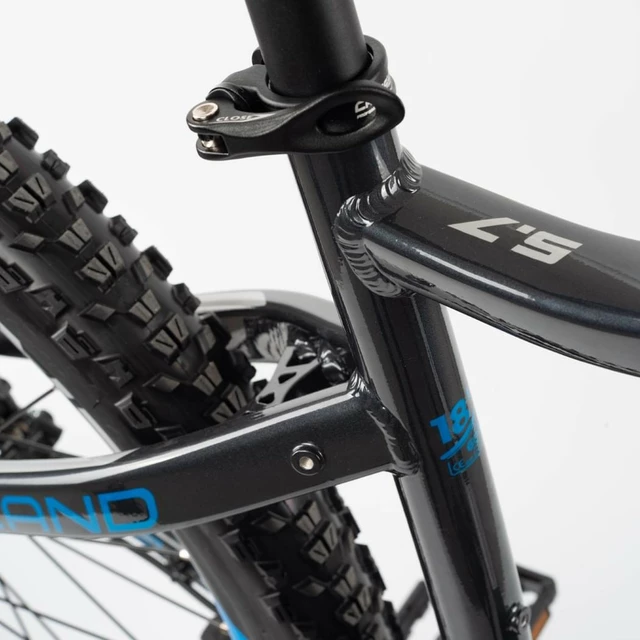

Mountain E-Bike Crussis e-Atland 5.7 – 2022 SPECIAL OFFER

Stylish and reliable e-bike with 27.5” wheels and a center drive for a comfortable, paved-road and terrain ride! This bike is well balanced and features hydraulic disc brakes and a suspension fork. more


Frame size:

1 235,60 €

1 719,60 € incl. VAT

-28%

You will save 484 €

Share Watchdog

Your order includes

  • 2-year warranty

Description

The Mountain E-Bike Crussis e-Atland 5.7 – 2022 is a reliable e-bike ideal for terrain as well as paved-road riding. The BAFANG MAX center drive and fully-integrated, 13Ah battery make the bike perfectly balanced, ensuring a comfortable ride on any surface. Depending on the trail profile, the high-capacity battery allows for a distance range of up to 115 km, allowing you to enjoy the ride.

The Mountain E-Bike Crussis e-Atland 5.7 – 2022 features 27.5” wheels and high-quality Maxxis Ardent tires that provide excellent adhesion on all surfaces! The hydraulic disc brakes and Suntour XCT30 HLO DS 27.5” suspension fork with 100mm travel provide safety. You can choose from 5 assistance modes (including walking assistance) on the black-and-white LCD display. The Mountain E-Bike Crussis e-Atland 5.7 – 2022 will make each ride an unforgettable event.





Powerful Drive

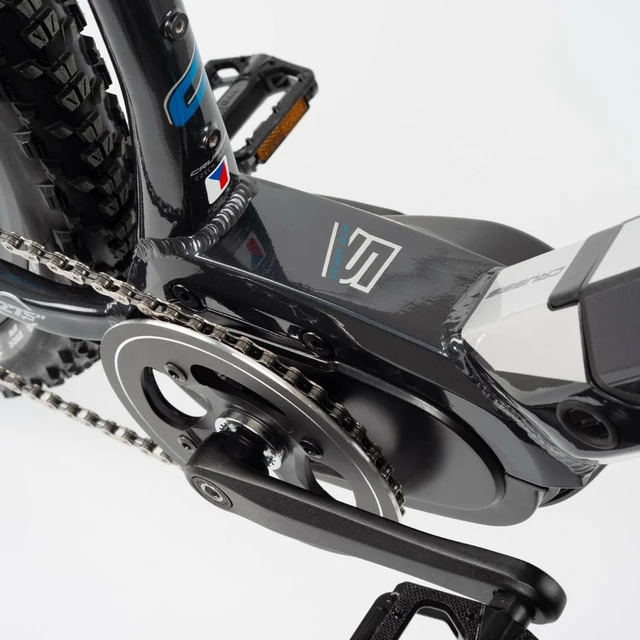

The BAFANG MAX Drive (M400) with an 80Nm torque features a torsional pedaling force sensor which makes sure that the more you pedal, the more the engine will assist you. The motor is placed in the center of the bike, providing an optimal center of gravity and making sure the tire maintains direction. Apart from battery status and current assistance mode, the black-and-white LCD display also shows speed and distance covered.


Adjustable Fork

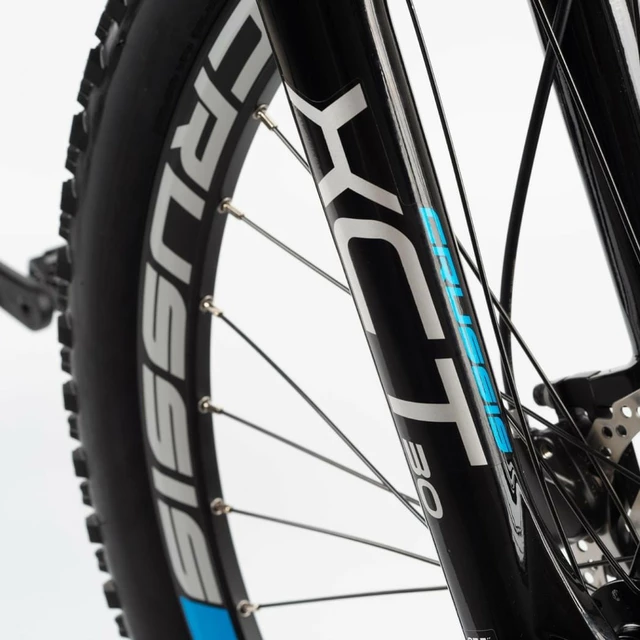

The Mountain E-Bike Crussis e-Atland 5.7 features a SUNTOUR XCT30 HLO DS 27.5” spring suspension fork with 100mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the crown.


High-Quality Battery

The Li-Ion 36V/13Ah (468Wh) removable removable high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 115 km on a single charge (depending on the trail profile). Moreover, the battery features a BMS (Battery Management System) board, which prevents it from overheating, short-circuit and overcharging.


Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.


E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.


Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

Alu 6061 (18“, 20“)

Motor

BAFANG MAX drive, center, 250W / 500W, 80 Nm

Battery

Li-ion 36 V/13 Ah (468 Wh), removable – can be charged separately

Charger

2 A

Distance range

Up to 115 km

Rear derailleur

SRAM X4 / SHIMANO Acera RD-M360-L**

Gear shifter

SRAM X4 / SHIMANO SL-M310**

Chain

KMC X8

Number of speeds

1 x 8

Cassette

SRAM PG-820 8 speeds / Shimano CS-HG31, 8 speeds**

Fork

SUNTOUR XCT30 HLO DS 27.5", 100 mm travel, lockout (fork)

Brakes

SRAM Level / SHIMANO BR-MT200, rotor 180 mm/160 mm (front/rear)**

Control panel

LCD panel, 5 assistance modes + walking assistance (black-and-white display)

Tires

MAXXIS Ardent 27.5 x 2.40

Valve

AV

Rims

Crussis 27.5", double-walled, lined, 32D

Hubs

CRUSSIS disc, wreath bearing, 32D

Headset

Semi 11/8

Stem

CRUSSIS Al, 60 mm, fixed

Handlebars

CRUSSIS Al, 760 mm

Grips

CRUSSIS 100% silicone

Pedals

WELLGO, plastic w/ reflector

Seatpost

CRUSSIS w/ lock, 30.4 / 350 mm or 400 mm

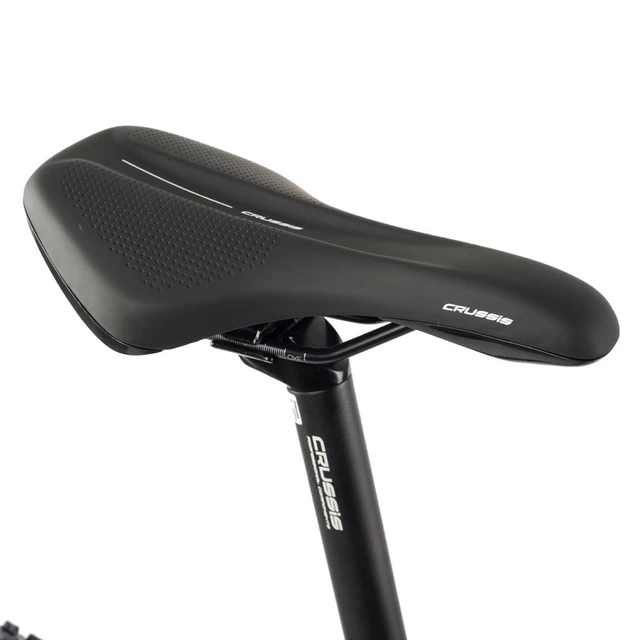

Seat

Selle ROYAL

Weight

There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store.

Weight limit

120 kg


** For selected 2022 and 2023 models, Crussis uses two different types of mounting at the same performance level - SRAM and Shimano. For operational reasons, it is not possible to determine exactly which fitting brand the individual bike will be equipped with.


CRUSSIS e-bike size chart 2022/2023

Frame size Rider height
14″ 135-155 cm
15″ 150-165 cm
16″ 155-170 cm
17″ 160-175 cm
18″ 165-180 cm
19″ 170-185 cm
20″ 175-190 cm
21″ 180-195 cm
22″ 185-200+ cm


Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!


Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.


Video


Product parameters

Motor Bafang MAX Drive, (central drive)
Battery Li-Ion, 13 Ah, (max. range 115 km)
Wheel size 27.5" (for users over 155 cm)
Number of speeds 8
Full capacity charging time 6.50 h
Program types 5 programs
Range 115 km
Motor output 250 W
Display LCD, Bafang
Frame Alu 6061
Frame material Aluminium
Brakes Hydraulic
Suspension travel 100 mm
Fork SUNTOUR XCT30 HLO DS 27.5", 100 mm
Drive Central
Suspension fork yes
Rear Brake Shimano BR-MT200 Hydraulic Disc, SRAM Level
Front Brake Shimano BR-MT200 Hydraulic Disc, SRAM Level
Rear hub CRUSSIS disc, ball bearing, 32D
Front Hub CRUSSIS disc, ball bearing, 32D
Rear tire MAXXIS Ardent 27.5 x 2.40
Front Tire MAXXIS Ardent 27.5 x 2.40
Gear shifting Shimanio SLM310, SRAM X4
Gear shifting type lever
Rear Derailleur Shimano Acera RD-M360-L, Sram X4
Crank Set Bafang 38T
Cassette SHIMANO CS-HG31-8, SRAM PG 820
Chain KMC X8
Front Rim CRUSSIS 27,5", double-wall, sleeved, 25mm
Rear rim CRUSSIS 27.5", double-wall, sleeved, 25mm
Pedals WELLGO
Crankset 170 mm
Handlebar grip CRUSSIS Al, 760 mm
Grips CRUSSIS silicone
Handlebar stem CRUSSIS Al, 60 mm, fixed
Saddle Selle Royal
Seat post CRUSSIS with a lock, 30.4 / 350 mm, CRUSSIS with a lock, 30.4 / 400 mm
Type of e-bike MTB
Drive Bafang
Weight limit (kg) 120 kg
Year 2022
