Sport>E-Bikes>Mountain E-bikes > Mountain E-Bike Crussis e-Atland 8.6-S – 2021 (Product code: E-ATLAND8.6-S)

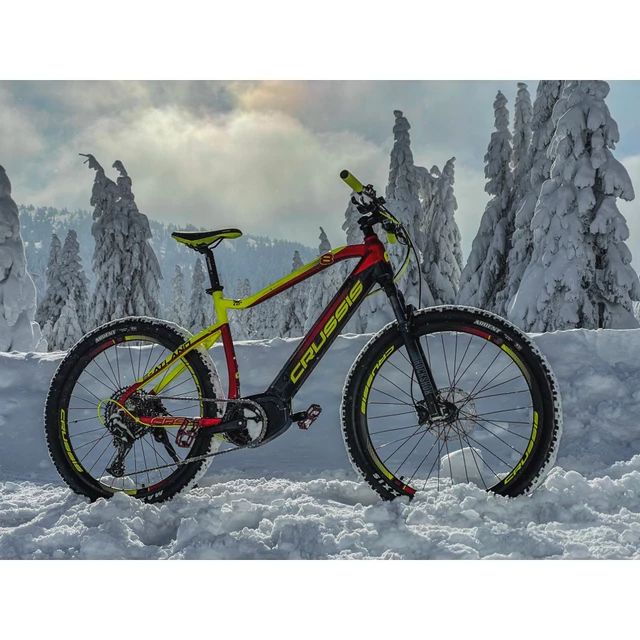

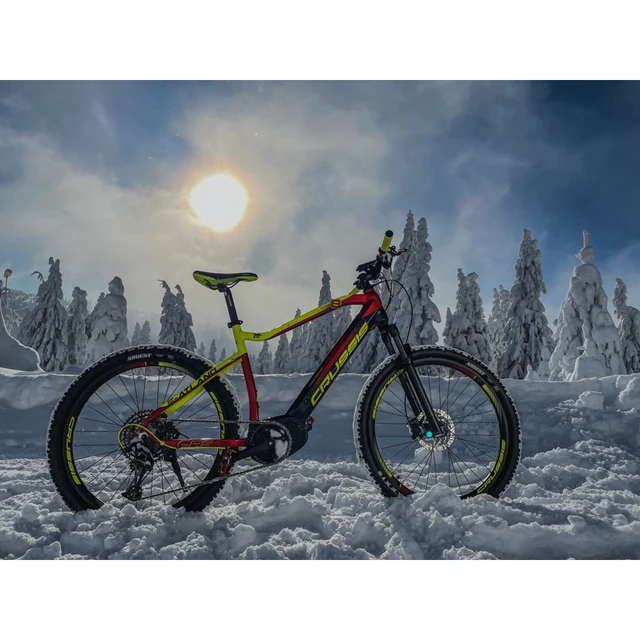

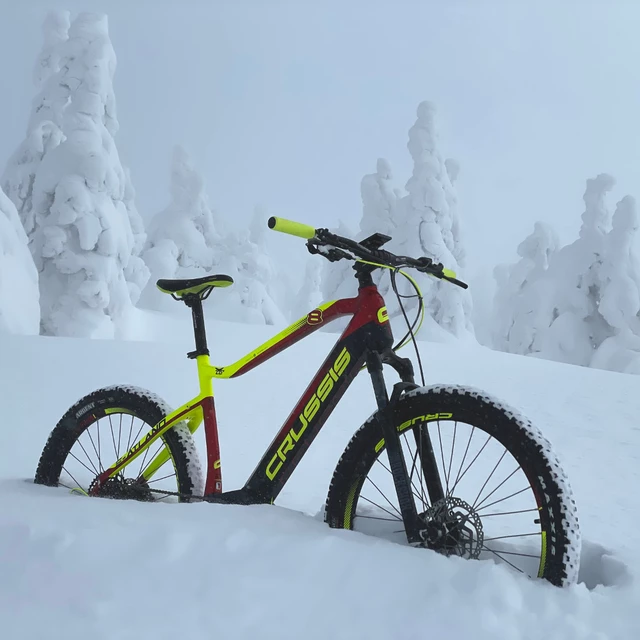

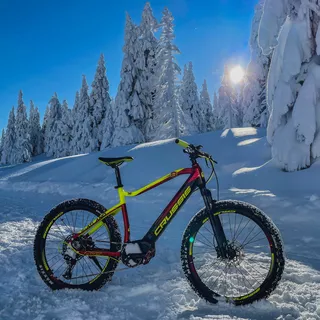

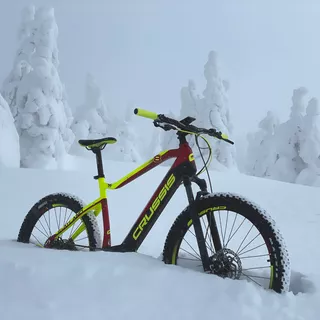

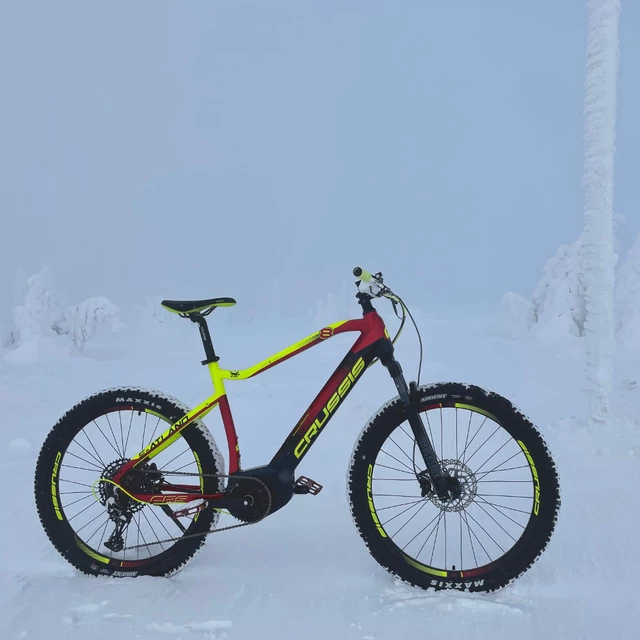

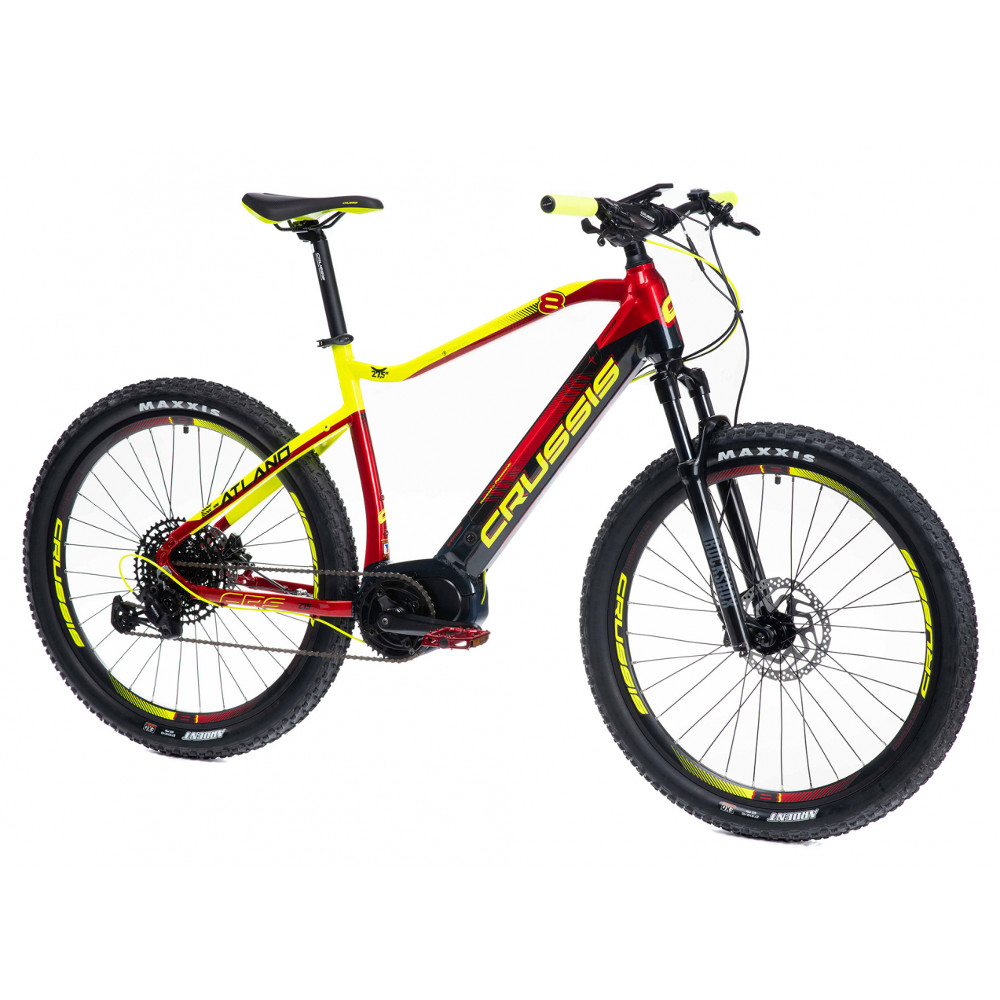

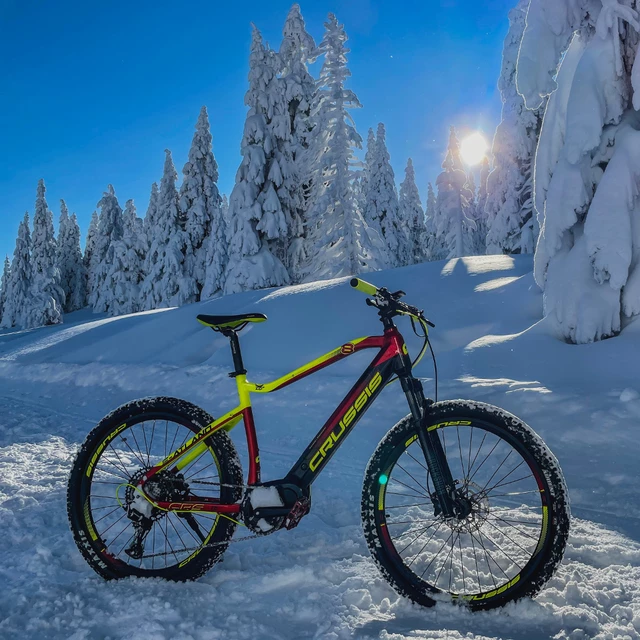

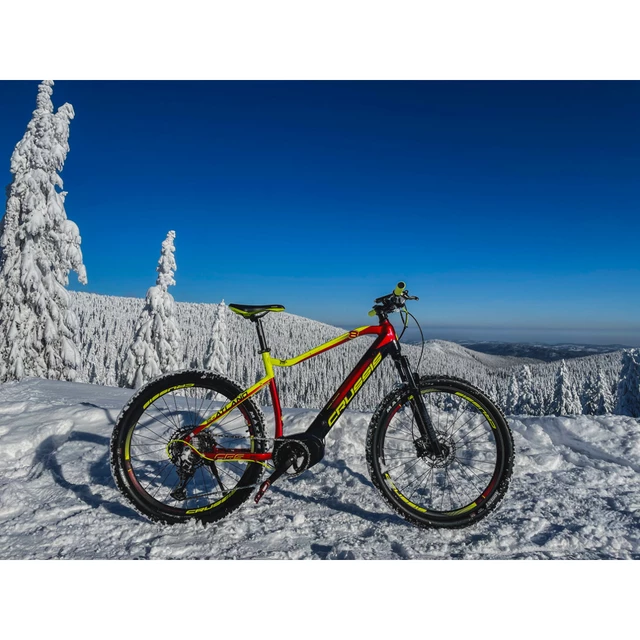

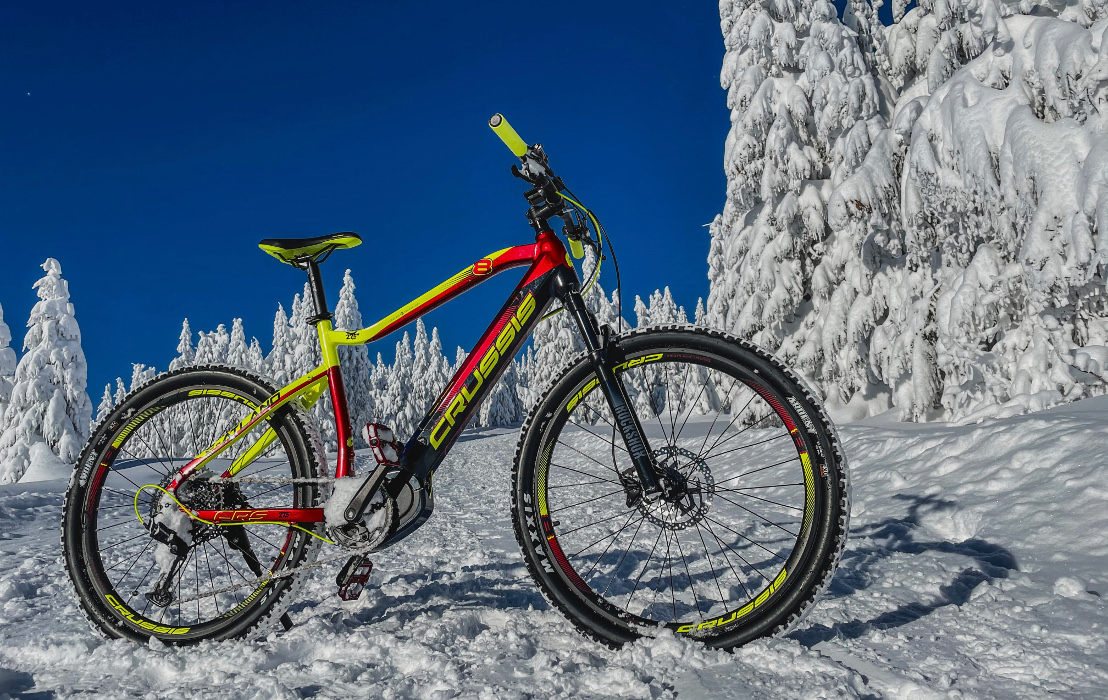

Mountain E-Bike Crussis e-Atland 8.6-S – 2021

Awesome mountain e-bike with a Bafang M400 motor, a high-capacity battery and 27.5” wheels that will overcome any obstacle! Enjoy the 12 speeds, top-class hydraulic disc brakes and adjustable fork.

Awesome mountain e-bike with a Bafang M400 motor, a high-capacity battery and 27.5” wheels that will overcome any obstacle! Enjoy the 12 speeds, top-class hydraulic disc brakes and adjustable fork. more »

Frame size
Availability:
Select a variant
Your price:
1 922,70 € incl. VAT
Price excl. VAT:
1 589,01 €

Recommended accessories

  • Description
  • Parameters
  • Alternatives (8)
  • Video (1)

Mountain E-Bike Crussis e-Atland 8.6-S – 2021

The Mountain E-Bike Crussis e-Atland 8.6-S – 2021 is well-equipped for challenging mountain terrain. The high-capacity, 17.5Ah battery allows for an incredible distance range of up to 150 km. The bike also features a top-class SRAM SX Eagle 12-speed derailleur set and a ROCKSHOX FS Judy Silver TK Solo Air suspension fork. The Shimano Deore BR-MT410 hydraulic disc brakes and high-quality Maxxis Ardent tires, which provide excellent adhesion on all surfaces, allow for a safe and comfortable ride while the fully integrated battery and the Bafang M400 center drive make it perfectly balanced.

You can choose from 5 assistance modes on an LCD screen, where there is also a USB port which allows you to charge your mobile device. The Mountain E-Bike Crussis e-Atland 8.6-S – 2021 will take you to places you otherwise would not dare to go.


Top-Class Gear Shifter

SRAM Eagle technology allows for smooth and accurate shifting of gears, which you can rely on in every situation. Eagle is a revolutionary MTB technology as it features an ideal, single-chainring drive, which is lightweight, durable, easy to use (intuitive operation) and offers a variety of programs for all kinds of terrain.

The PG-1210 SX cassette is the only Eagle cassette designed to meet the ever-increasing demands on mountain bikes, making it perfect for challenging terrain riding.




Air Suspension Fork

The Mountain E-Bike Crussis e-Atland 8.6-S features a ROCKSHOX FS Judy Silver TK Solo Air 27.5” suspension fork with 100mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the handlebars.



Ultra Powerful Drive

The Bafang M400 drive with an 80Nm torque features a torsional pedaling force sensor which makes sure that the more you pedal, the more the engine will assist you.

Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Moreover, the display also features a USB port, which allows you to charge your mobile devices (e.g. phone, navigation, lights).




Warning: Store the battery in a dry place and away from light, with room temperature between 10°C and 20°C. Before storing it for a longer period of time, charge the battery to full capacity. Repeat the process every month.
By following these instructions, the rated capacity of the battery will not fall below 70% of its total capacity within 12 months of purchase.


E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.


Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

Alu 6061 (18“, 20“)

Motor

BAFANG MAX drive, center, 250W, 80 Nm

Battery

Panasonic Li-ion 36 V/630 Wh (17.5 Ah)

Charger

2 Ah

Pedaling sensor

torsion

Distance range

Up to 150 km

Rear derailleur

SRAM SX Eagle

Gear shifter

SRAM SX Eagle

Number of speeds

1 x 12

Cassette

SRAM CS-PG1210 Eagle, 11-50z

Chain

SRAM Eagle SX 12s

Fork

ROCKSHOX FS Judy Silver TK Solo Air 27.5", 100 mm travel

Brakes

Hydraulic SHIMANO Deore BR-M410, rotor 180 mm (front), 160 mm (rear)

Control panel

Bafang LCD panel, 5 assistance modes (color display)

Tires

MAXXIS Ardent 27.5*2.40

Valve

AV (car valve)

Rims

CRUSSIS 27.5", double-walled, lined, 25 mm

Hubs

CRUSSIS disc, wreath bearing, 32D

Headset

Semi 11/8

Stem

CRUSSIS Al, 60 mm, fixed

Handlebars

CRUSSIS Al, 740 mm

Grips

CRUSSIS 100% silicone

Weight

There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store.

Weight limit

120 kg


Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!


Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.


CRUSSIS e-bike chart size

Frame sizeHeight of user
14″ 135-155 cm
17″ 155-175 cm
18″ 160-180 cm
19″ 165-185 cm
20″ 170-190 cm
21″ 175-195 cm
22″ 180-200+ cm

Mountain E-Bike Crussis e-Atland 8.6-S – 2021 - Product parameters

Motor
Bafang MAX Drive, (central drive)
Battery
(max. range 150 km), Li-ion, 17,5 Ah, Panasonic cells
Wheel size
27.5" (for users over 155 cm)
Number of speeds
12
Program types
5 programs
Range
150
Motor output
250 W
Display
LCD, colour, Bafang
Frame
Alu 6061
Frame material
Aluminium
Brakes
Hydraulic
Fork
ROCKSHOX FS Judy Silver TK Solo Air 27,5", 100 mm
Drive
Central
Suspension fork
yes
Rear Brake
SHIMANO Deore BR-MT410
Front Brake
SHIMANO Deore BR-MT410
Rear hub
CRUSSIS disc, ball bearing, 32D
Front Hub
CRUSSIS disc, ball bearing, 32D
Rear tire
MAXXIS Ardent 27.5 x 2.40
Front Tire
MAXXIS Ardent 27.5 x 2.40
Gear shifting
SRAM SX Eagle
Gear shifting type
lever
Rear Derailleur
SRAM SX Eagle
Crank Set
SRAM X-SYNC 2 38Z
Cassette
SRAM CS-PG1210 Eagle, 11-50z
Chain
SRAM Eagle SX 12s
Front Rim
CRUSSIS 27,5", double-wall, sleeved, 25mm
Rear rim
CRUSSIS 27,5", double-wall, sleeved, 25mm
Pedals
WELLGO
Crankset
Bafang 170 mm
Handlebar grip
CRUSSIS Al, 740 mm
Grips
CRUSSIS silicone
Handlebar stem
CRUSSIS Al, 60 mm, fixed
Saddle
Selle Royal
Seat post
CRUSSIS with a lock, 31,6 / 350 mm
Type of e-bike
MTB
Drive
Bafang
Weight limit (kg)
120 kg
Year
2021
