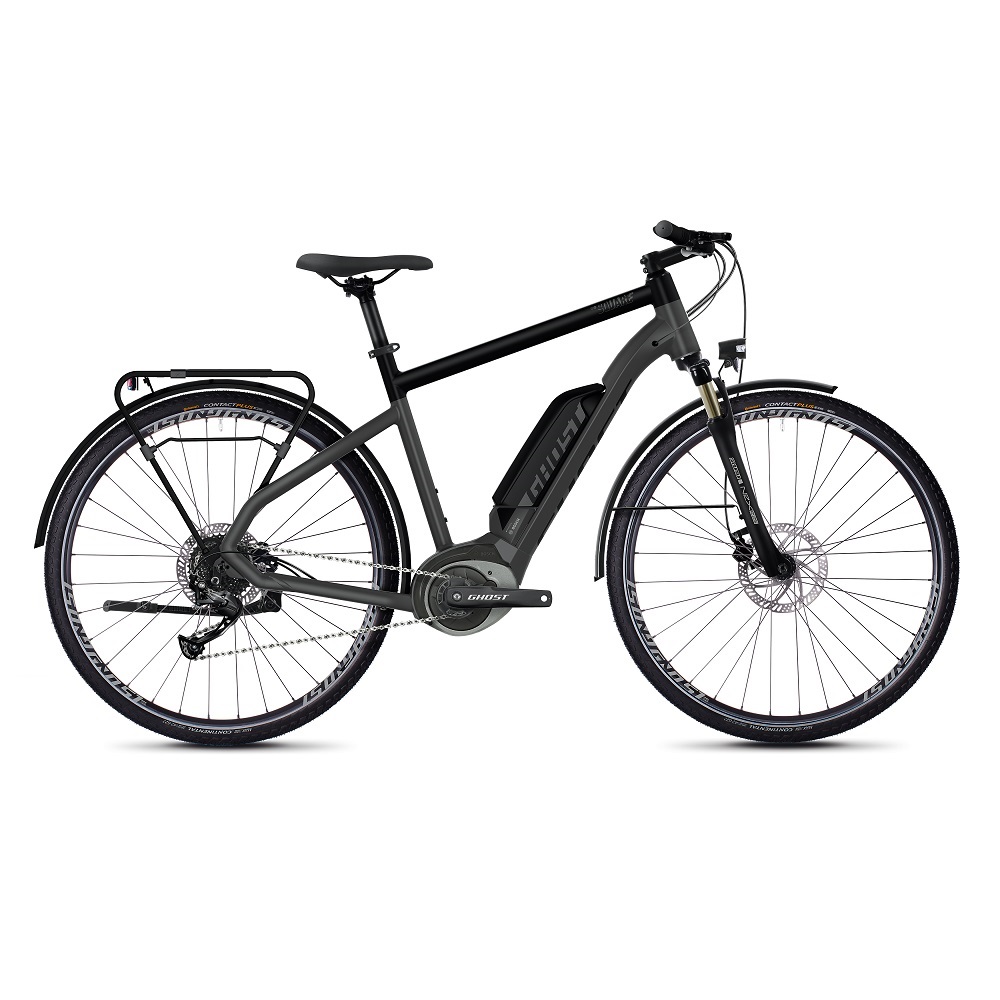

Trekking E-Bike Ghost Square Trekking B1.8 28” – 2020

E-bike suitable for both paved road and terrain riding, powerful Bosch center drive, high-capacity battery (long distance range), well-equipped, 9 speeds. more


Frame size:

Colour:  Titanium Gray/Jet Black/Iridium Silver

2 639,60 €

incl. VAT

Share Watchdog

Your order includes

  • 2-year warranty

Recommended accessories

Description

The Trekking E-Bike Ghost Square Trekking B1.8 28” – 2020 is a top-quality e-bike with a powerful (250W) Bosch Active Line Plus center drive with 4 assistance modes. The max speed with assistance on is 25 km/h. You may also appreciate the walking assistance which will come in handy when you need to push the bike up the hill. The partly integrated 13.9Ah Bosch Power Pack battery allows for a distance range of up to 130 km. You can follow all the important information such as battery status or distance covered on the easy-to-read Bosch Intuvia display.

The Trekking E-Bike Ghost Square Trekking B1.8 28” – 2020 features a 9-speed Shimano Altus derailleur set with a lever gear shifter, Suntour NEX E25 suspension fork and Tektro hydraulic disc brakes. This e-bike also features all the accessories you may need on your travels – a light set, fenders, a kickstand and a rear rack. If you are looking for an e-bike suitable for both asphalt and dirt roads, the Trekking E-Bike Ghost Square Trekking B1.8 28” – 2020 is the clear choice.


Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.


Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

HybRide SQUARE TREKKING AL

Fork

SR Suntour NEX E25 63 mm

Motor

Bosch Active Line Plus 250 W, center drive

Battery

Bosch Power Pack 500 Wh / 13.9 Ah

Distance range

Up to 130 km

Display

Bosch Intuvia

Rear derailleur

Shimano Altus RD-M2000 9-S

Gear shifter

Shimano Altus SL-M2010, lever

Number of speeds

9

Cassette

Shimano CS-HG200-9 11-34

Cranks

Samox EC-33-F5-BNI 38T

Brakes

Tektro HD-T285 2/2 Piston 180 mm

Tires

Continental Contact Plus 42-622

Rims

Rodi Blackrock 622x21 mm 32H

Hubs

Formula DC 20 QR / Formula DC 22 QR

Handlebars

GHOST SQUARE 680 mm, Rise 25 mm, Diam 31.8 mm

Stem

GHOST SQUARE, Diam 31.8 mm

Seatpost

GHOST SP-DC1, Diam 31.6 mm

Seat

Justek 3050 HRN

Lights

Spanninga Brio XE / Herrmanns H-Trace

Accessories

Fenders, kickstand, rear rack


Ghost bike size chart

Frame sizeRecommended user height
XXS 135-150 cm
XS 145-160 cm
S 155-170 cm
M 165-180 cm
L 175-190 cm
XL 185-200 cm


Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!


Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.



Product parameters

Motor (central drive), Bosch Active Line Plus
Battery Bosch Power Pack 500 Wh (13,9 Ah)
Wheel size 28
Number of speeds 9
Range 130 km
Motor output 250 W
Display Intuvia
Frame material Aluminium
Brakes Hydraulic, Disc
Frame HybRide SQUARE TREKKING AL
Drive Central
Suspension fork yes
Fork SR Suntour NEX-E25 63mm
Rear Brake Tektro HD-T285 2/2 Piston 180 mm
Front Brake Tektro HD-T285 2/2 Piston 180 mm
Rear hub Formula DC 22 QR
Front Hub Formula DC 20 QR
Rear tire Continental Contact Plus 42-622
Front Tire Continental Contact Plus 42-622
Gear shifting Shimano Altus SL-M2010
Gear shifting type lever
Rear Derailleur Shimano Altus RD-M2000 9-S
Cassette SHIMANO CS-HG200-9 (11-34)
Front Rim Rodi Blackrock 622x21 mm 32H
Rear rim Rodi Blackrock 622x21 mm 32H
Crankset Samox EC-33-F5-BNI 38T
Handlebar grip GHOST SQUARE 680 mm, Rise 25 mm, Diam 31.8 mm
Grips Herrmans Ergo Grip
Handlebar stem GHOST SQUARE 31.8 mm
Saddle Justek 3050 HRN
Seat post GHOST SP-DC1 31.6 mm
Front Light Spanninga Brio XE
Rear light Herrmans H-Trace
Mudguards GHOST RG50
Type of e-bike Trekking
Drive Bosch
Year 2020
