Sport>E-Bikes>Mountain E-bikes > Mountain E-Bike KELLYS TYGON 50 27.5” – 2020 (Product code: K20227)

Mountain E-Bike KELLYS TYGON 50 27.5” – 2020 - SPECIAL OFFER

E-bike suitable for challenging terrain, Shimano center drive, integrated battery with distance range of up to 150km, hydraulic disc brakes.

E-bike suitable for challenging terrain, Shimano center drive, integrated battery with distance range of up to 150km, hydraulic disc brakes. more »

Colour

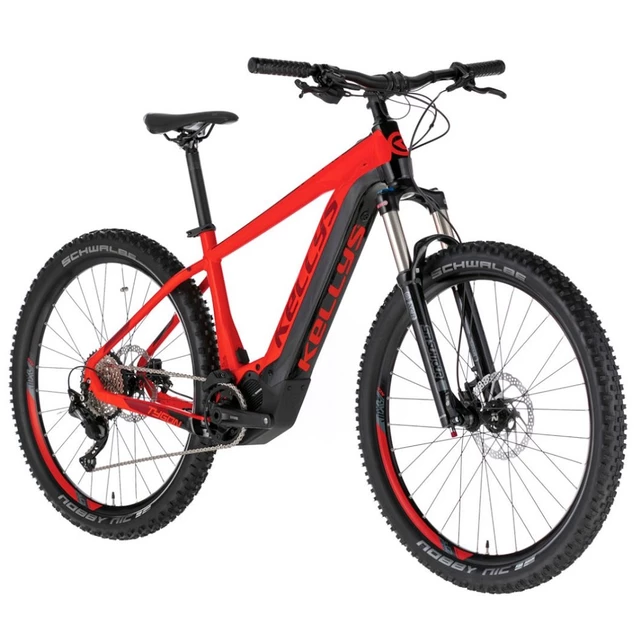

Black Red
Availability:
Select a variant
Your price:
2 615 € incl. VAT
Price excl. VAT:
2 161,16 €
Original price:
2 961,20 €
- You will save 346,20 € (12%)

Recommended accessories

  • Description
  • Parameters
  • Alternatives (8)

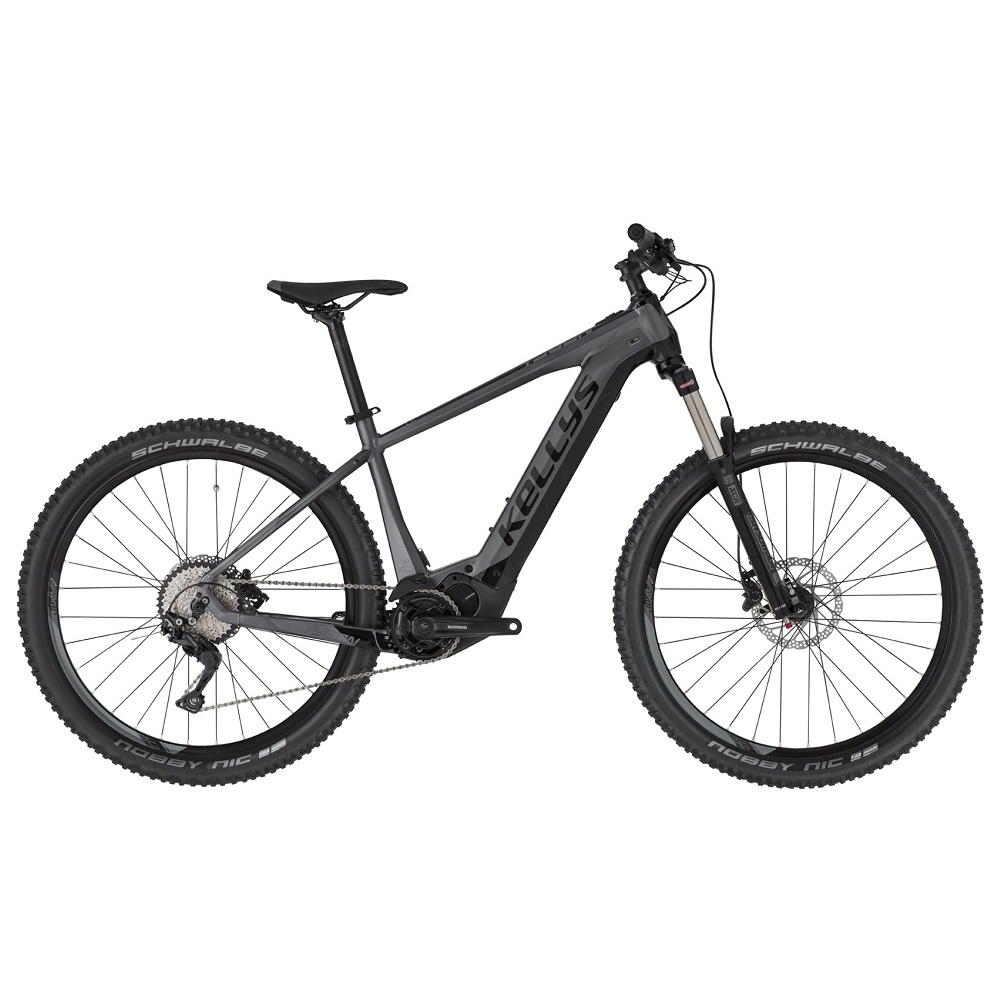

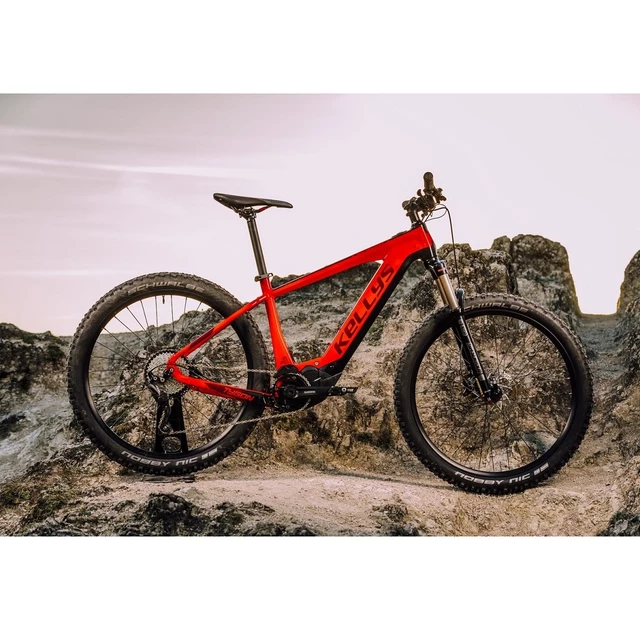

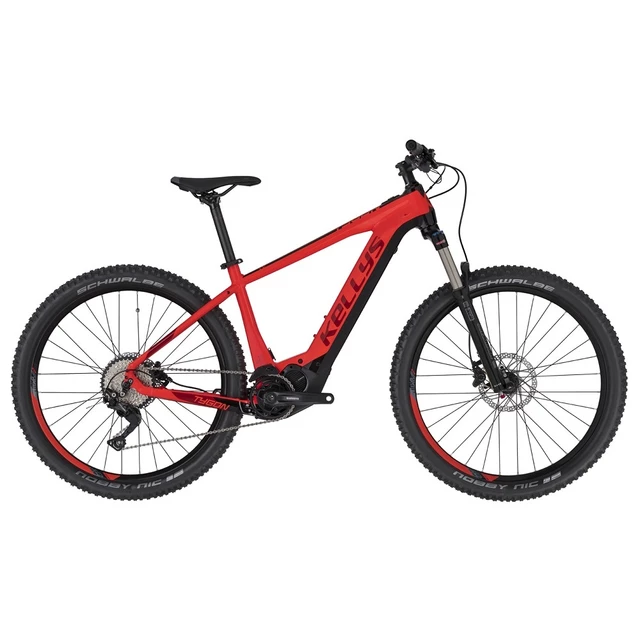

Mountain E-Bike KELLYS TYGON 50 27.5” – 2020

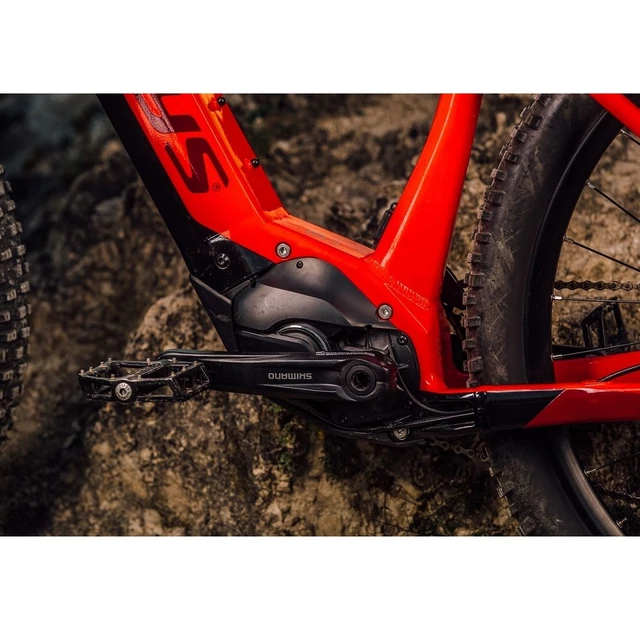

The Mountain E-Bike KELLYS TYGON 50 27.5” – 2020 is a top-class e-bike suitable for challenging terrain. Perfect for uphill rides, the 250W Shimano Steps E7000 center drive provides assistance up to 25 km/h. When combined with a fully-integrated battery, it makes the bike perfectly balanced, providing excellent riding characteristics. The 17.5Ah battery ensures a distance range of up to 150km on a single charge. You can follow all the important information such as battery status or distance covered on an easy-to-read display on the handlebars.

The Mountain E-Bike KELLYS TYGON 50 27.5” – 2020 features top-class components. The 10-speed Shimano rear derailleur with a lever gear shifter was made for hilly terrain while the Suntour suspension fork with 120mm travel will deal with any unevenness. When you add the Schwalbe tires, you can ride virtually anywhere. The 180mm hydraulic disc brakes will come in handy during downhill rides. If you are a mountain biking fan, the Mountain E-Bike KELLYS TYGON 50 27.5” – 2020 will not disappoint you.


Warning: Store the battery in a dry place and away from light, with room temperature between 10°C and 20°C. Before storing it for a longer period of time, charge the battery to full capacity. Repeat the process every month.


Our tips:

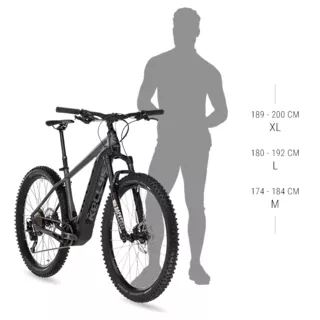

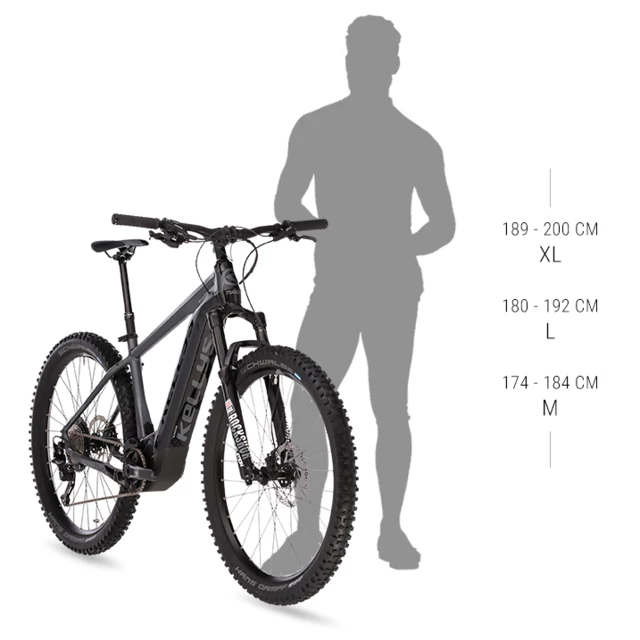

  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

KELLYS e-Frame 27.5, Uni-Body Integrated Design, Drive Core, tapered HT, internal routing, 12x148mm Boost thru axle

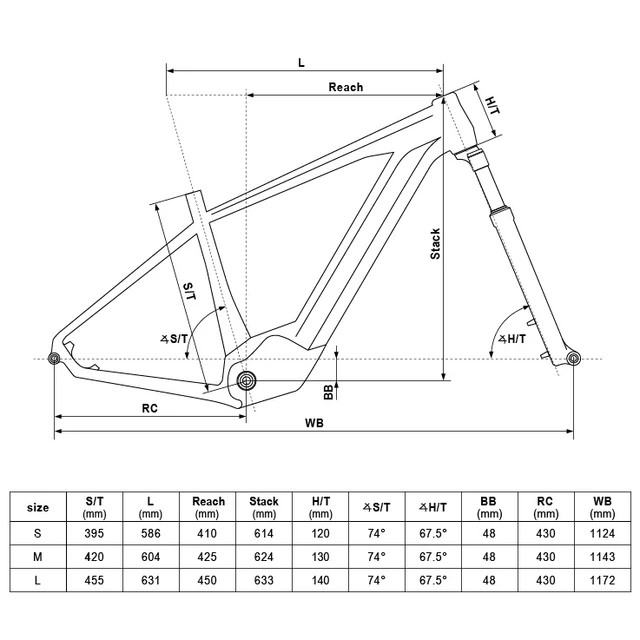

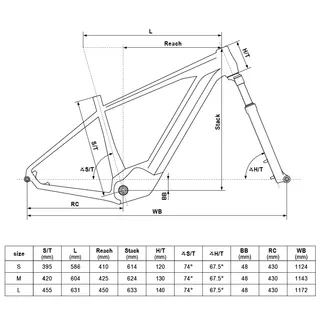

Frame size

S (S/T 395mm, L 586mm), M (S/T 420mm, L 604mm), L (S/T 455mm, L 631mm)

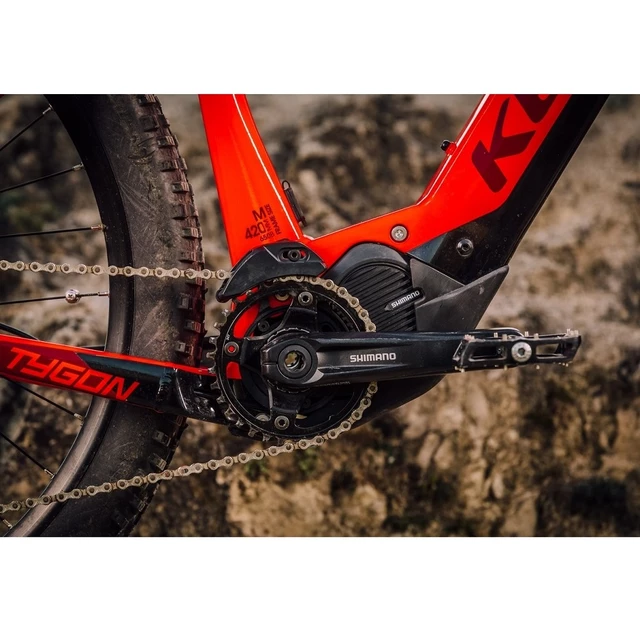

Motor

Shimano STEPS E7000 250 W

Battery

KELLYS Re-Charge Li-ion internal 630Wh (17,5 Ah)

Distance range

Up to 150 km

Fork

SR SUNTOUR XCR 34 LOR Air (27.5) Boost, 120mm, air / Speed Lockout / 15Q-Loc thru axle

Headset

FSA 1.5 integrated

Cranks

SHIMANO FC-E8000 (34) – length 170mm

Gear shifter

SHIMANO Deore SL-M6000 Rapidfire Plus

Rear derailleur

SHIMANO Deore M6000 (direct mount)

Number of speeds

10

Cassette

SHIMANO CS-HG500-10 (11-42)

Chain

KMC e10T (116 links)

Brakes

SHIMANO MT400 Hydraulic Disc

Brake discs

180mm front / 180mm rear

Brake levers

SHIMANO BL-MT400

Hubs

NOVATEC Disc (15x110mm / 12x148mm / 32 holes)

Stationary axis

SR SUNTOUR Q-Loc 15x110mm front / NOVATEC 12x148mm rear

Rims

KLS Valor 2 Disc 584x27 (32 holes)

Spokes

stainless steel black

Tires

SCHWALBE Nobby Nic Performance 65-584 (27.5x2.60) folding

Stem

KLS Active - diam 28.6mm / bar bore 31.8mm / 6° / length 60mm (S - M), 70mm (L)

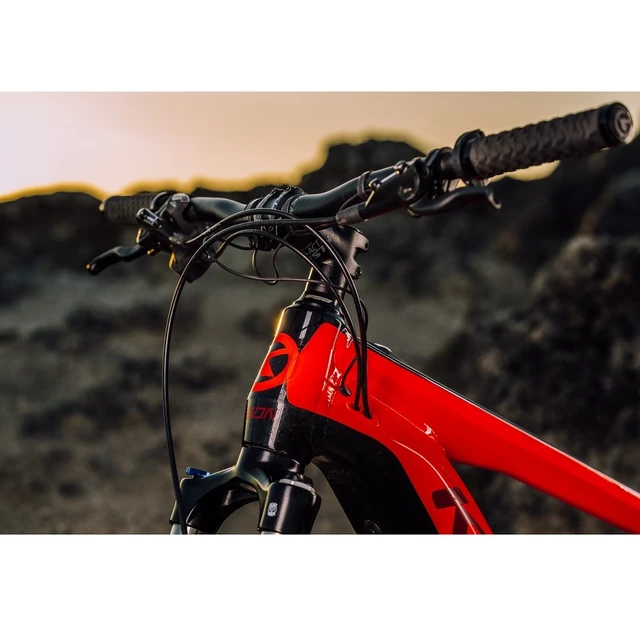

Handlebars

KLS Active RiseBar - diam 31.8mm / rise 15mm / width 720mm

Grips

KLS Poison

Seatpost

KLS Active - diam 30.9mm / length 300mm (S - M), 350mm (L)

Seat

Selle Royal Vivo

Pedals

plastic

Weight

21.02kg


Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!


Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.

Mountain E-Bike KELLYS TYGON 50 27.5” – 2020 - Product parameters

Motor
Shimano Steps E7000
Battery
KELLYS Re-Charge Li-ion internal 630Wh (17,5 Ah)
Wheel size
27.5+
Number of speeds
10
Range
150
Motor output
250 W
Display
Shimano SC-E7000
Frame
KELLYS e-Frame 27.5, Uni-Body Integrated Design
Frame material
Aluminium
Brakes
Disc, Hydraulic
Fork
SR SUNTOUR XCR 34 LOR Air Boost 120mm, air, Speed Lockout
Drive
Central
Suspension fork
yes
Rear Brake
SHIMANO BR-MT400
Front Brake
SHIMANO BR-MT400
Spokes
Stainless steel black
Rear hub
Novatec Disc 15x110mm / 12x148mm (32 holes)
Front Hub
Novatec Disc 15x110mm / 12x148mm (32 holes)
Rear tire
SCHWALBE Nobby Nic Performance 65-584 (27.5x2.60) folding
Front Tire
SCHWALBE Nobby Nic Performance 65-584 (27.5x2.60) folding
Gear shifting
SHIMANO Deore SL-M6000 Rapidfire Plus
Gear shifting type
lever
Rear Derailleur
SHIMANO Deore M6000
Cassette
SHIMANO CS-HG500-10 (11-42)
Chain
KMC e10T (116 links)
Front Rim
KLS Valor 2 Disc 584x27 (32 holes)
Rear rim
KLS Valor 2 Disc 584x27 (32 holes)
Brake levers
SHIMANO BL-MT400
Pedals
Plastic
Crankset
SHIMANO FC-E8000 (34)
Axle
SR SUNTOUR Q-Loc 15x110mm front / Novatec 12x148mm rear
Handlebar grip
KLS Active RiseBar
Grips
KLS Poison
Handlebar stem
KLS Active (diam 28.6mm / bar bore 31.8mm / 6°)
Head Tube
FSA 1.5 integrated
Saddle
SELLE ROYAL Vivo
Seat post
KLS Active - diam 30.9mm
Type of e-bike
MTB
Drive
Shimano
Weight
21.02 kg
Year
2020
