Sport>E-Bikes>Mountain E-bikes > Full-Suspension E-Bike Kellys Theos i70 27.5” – 2020 (Product code: K20002-S)

Full-Suspension E-Bike Kellys Theos i70 27.5” – 2020 - SPECIAL OFFER

Intended for challenging terrain, 11 speeds, lightweight frame with optimum geometry, fully-integrated high-capacity battery, Shimano center drive, hydraulic disc brakes.

Intended for challenging terrain, 11 speeds, lightweight frame with optimum geometry, fully-integrated high-capacity battery, Shimano center drive, hydraulic disc brakes. more »

Frame size
Availability:
E-shop
Your price:
4 038,10 € incl. VAT
Price excl. VAT:
3 337,27 €
Original price:
4 615 €
- You will save 576,90 € (13%)

Recommended accessories

  • Description
  • Parameters
  • Alternatives (8)

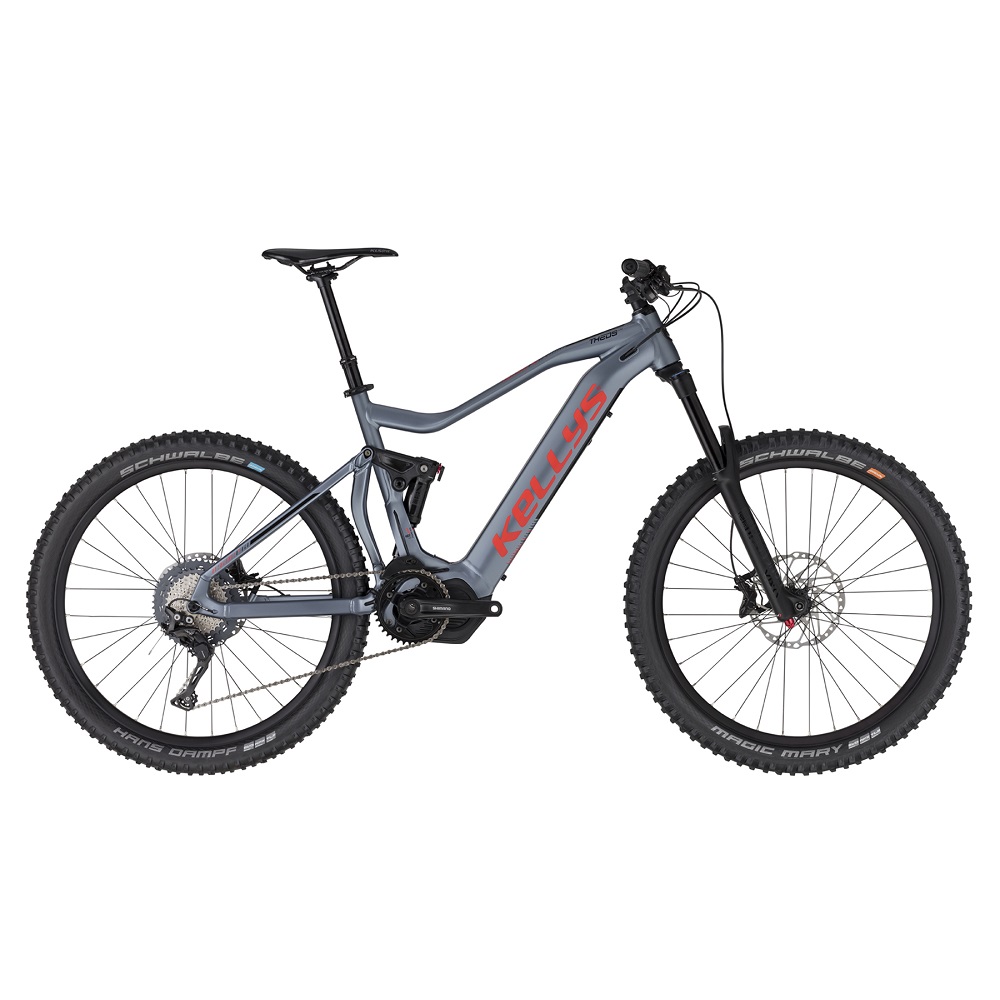

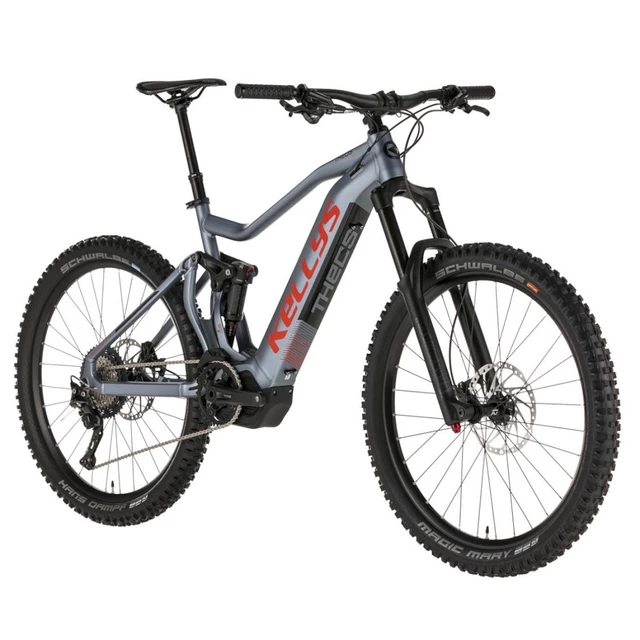

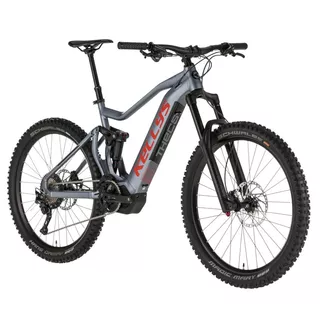

Full-Suspension E-Bike Kellys Theos i70 27.5” – 2020

The Full-Suspension E-Bike Kellys Theos i70 27.5” – 2020 is a mountain bike with a lightweight aluminum frame suitable for the most challenging terrain. The unique design, top-quality 250W Shimano STEPS E8000 center drive powered by a fully integrated 630Wh Shimano battery and the 150km distance range make it a top-class bike. The best on the market, the center drive provides excellent energy transfer and balance.

The high-quality Rock Shox Yari RC suspension fork with 160mm travel and Rock Shox rear shock provide top class suspension. Thanks to the wide, 27.5” Schwalbe tires you will not have to be afraid of any terrain. Moreover, the Full-Suspension E-Bike Kellys Theos i70 27.5” – 2020 also features the following Shimano components – a rear derailleur and 11-speed gear shifter. The Shimano hydraulic disc brakes (with 203mm disc diameter) will tame the bike’s speed. This e-bike is perfect down to the last detail. The frame geometry ensures the optimum low center of gravity. You may also appreciate the fact that the Bowden cables go through the inside of the frame. The Full-Suspension E-Bike Kellys Theos i70 27.5” – 2020 is a treat for all fans of mountain biking.


Warning: Store the battery in a dry place and away from light, with room temperature between 10°C and 20°C. Before storing it for a longer period of time, charge the battery to full capacity. Repeat the process every month.


Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

KELLYS e-Frame Allmountain 27.5, Uni-Body Integrated Design / Four-bar link, 150mm rear travel, tapered HT, internal routing, 12x148mm Boost thru axle

Frame size

S / M / L

Motor

Shimano STEPS E8000 250 W, 36V

Display

Shimano SC-E8000

Switch unit

Shimano SW-E7000

Battery

KELLYS Re-Charge Li-Ion internal 630Wh / 17.5 Ah

Distance range

Up to 150 km

Fork

ROCK SHOX Yari RC (27.5) Boost, 160mm, DebonAir / Motion Control / Maxle Stealth 15mm thru axle

Rear shock

ROCK SHOX Deluxe RT, DebonAir / Rapid Recovery / Open-Pedal / Trunnion mount (205x65mm)

Headset

FSA 1.5 integrated

Cranks

SHIMANO FC-E8000 (38T) - length 170mm

Gear shifter

SHIMANO Deore XT SL-M8000-IR Rapidfire Plus I-Spec II

Rear derailleur

SHIMANO Deore XT M8000 (direct mount)

Number of speeds

11

Cassette

SHIMANO CS-M7000-11 (11-46T)

Chain

KMC X11e (116 links)

Brakes

SHIMANO MT520 Hydraulic Disc

Brake discs

203mm front / 203mm rear

Brake levers

SHIMANO BL-MT501

Hubs

NOVATEC Disc (15x110mm / 12x148mm / 32 holes)

Rims

KLS Valor 2 Disc 584x27 (32 holes)

Axle

FOX 15QRx110mm front / NOVATEC 12x148mm rear

Spokes

stainless steel black

Front tire

SCHWALBE Magic Marry 65-584 (27.5x2.60) SnakeSkin, Tubeless Easy, ADDIX Soft, folding

Rear tire

SCHWALBE Hans Dampf Evo 65-584 (27.5x2.60) SnakeSkin, Tubeless Easy, ADDIX Speedgrip, folding

Stem

RACE FACE Aeffect R 35 - diam 28.6mm / bar bore 35mm / 0° / length 50mm

Handlebars

RACE FACE Aeffect R 35 RiseBar - diam 35mm / rise 20mm / width 780mm

Grips

KLS Poison

Seatpost

KS RAGE-I Remote Telescopic - diam 31.6mm / length 442mm, travel 150mm

Seat

KLS Styx

Pedals

plastic


Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!


Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.

Full-Suspension E-Bike Kellys Theos i70 27.5” – 2020 - Product parameters

Motor
(central drive), Shimano Steps E8000
Battery
KELLYS Re-Charge Li-ion internal 504Wh (14Ah)
Wheel size
27.5+
Number of speeds
11
Range
150
Motor output
250 W
Display
Shimano SC-E7000
Frame
KELLYS e-Frame Allmountain 27.5, Uni-Body Integrated Design / Four-bar link, 150mm rear travel, tapered HT, internal routing, 12x148mm Boost thru axle
Frame material
Aluminium
Brakes
Hydraulic, Disc
Fork
ROCK SHOX Yari RC (27.5) Boost, 160mm, DebonAir / Motion Control / Maxle Stealth 15mm thru axle
Rear Shock
ROCK SHOX Deluxe RT, DebonAir / Rapid Recovery / Open-Pedal / Trunnion mount (205x65mm)
Drive
Central
Suspension fork
yes
Rear Brake
SHIMANO MT520 Hydraulic Disc
Front Brake
SHIMANO MT520 Hydraulic Disc
Spokes
Stainless steel black
Rear hub
Novatec Disc 15x110mm / 12x148mm (32 holes)
Front Hub
Novatec Disc 15x110mm / 12x148mm (32 holes)
Rear tire
SCHWALBE Hans Dampf Evo 65-584 (27.5x2.60) SnakeSkin, Tubeless Easy, ADDIX Speedgrip, folding
Front Tire
SCHWALBE Magic Mary 65-584 (27.5x2.60) SnakeSkin, Tubeless Easy, ADDIX Soft, folding
Gear shifting
SHIMANO Deore XT SL-M8000-IR Rapidfire Plus I-Spec II
Gear shifting type
lever
Rear Derailleur
Shimano Deore XT M8000
Cassette
SHIMANO CS-M7000-11 (11-46T)
Chain
KMC e11T (116 links)
Front Rim
KLS Valor 2 Disc 584x27 (32 holes)
Rear rim
KLS Valor 2 Disc 584x27 (32 holes)
Brake levers
SHIMANO BL-MT501
Pedals
Plastic
Crankset
SHIMANO FC-E8000 (38T) - length 170mm
Axle
ROCK SHOX Maxle Stealth 15x110mm front / Novatec 12x148mm rear
Handlebar grip
RACE FACE Aeffect R 35 RiseBar - diam 35mm / rise 20mm / width 780mm
Grips
KLS Poison
Handlebar stem
RACE FACE Aeffect R 35 - diam 28.6mm / bar bore 35mm / 0° / length 50mm
Head Tube
FSA 1.5 integrated
Saddle
KLS Styx
Seat post
KS RAGE-I Remote Telescopic - diam 31.6mm
Type of e-bike
Full suspension, MTB
Drive
Shimano
Year
2020
