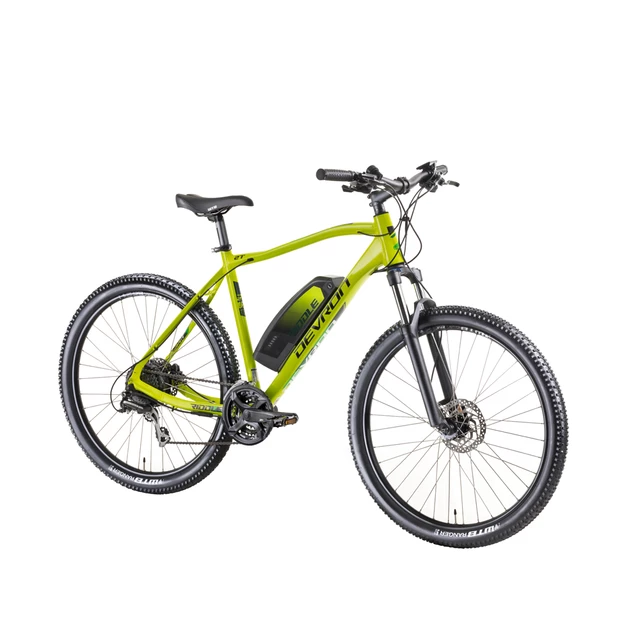

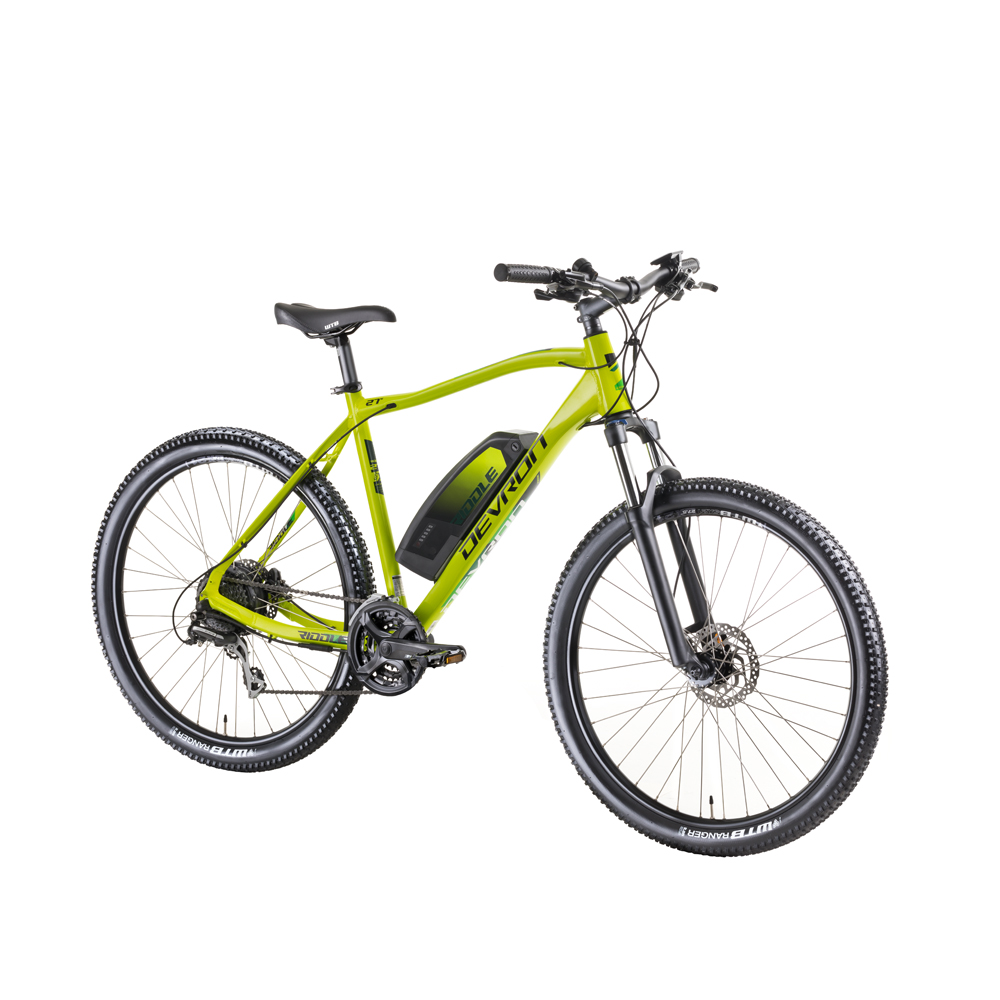

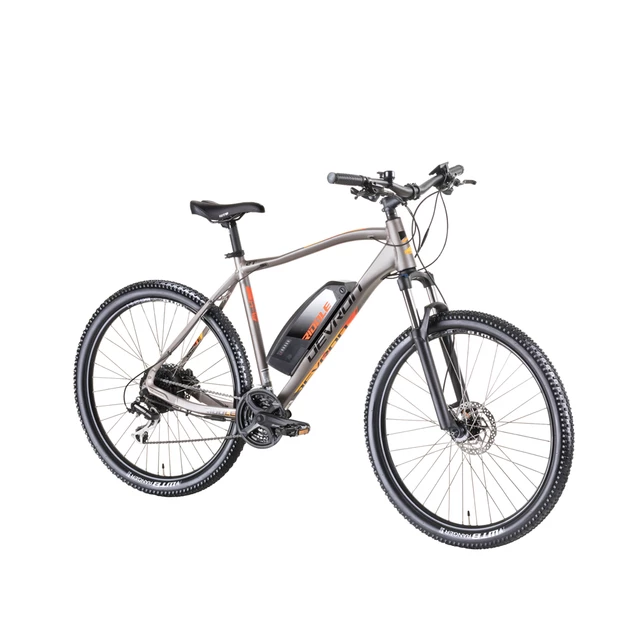

Mountain E-Bike Devron Riddle M1.7 27.5” – 2019

Extremely powerful rear drive, hydraulic disc brakes, high-quality Shimano components, modern design. more


Frame size:

Colour:

1 279,60 €

incl. VAT

Share Watchdog

Your order includes

  • 2-year warranty

Description

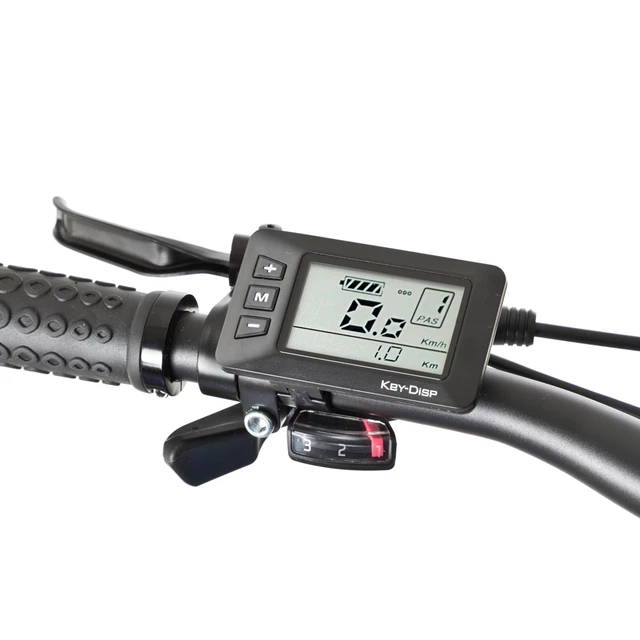

The Mountain E-Bike Devron Riddle M1.7 27.5” – 2019 is a modern e-bike with an extremely powerful 250W Etrotek rear drive, which allows for quick acceleration and 25 km/h top speed, making the bike suitable for uphill rides in challenging terrain. The rear drive also allows for better torque transfer and easier control of the front wheel, making the bike suitable for both terrain and paved road riding. The 11Ah frame battery, which complements the design of the bike, provides a distance range of 110km on a single charge. You can follow the battery status and other important information on an easy-to-read LCD display.

Moreover, the Mountain E-Bike Devron Riddle M1.7 27.5” – 2019 also features a suspension fork with 120mm travel and a hydraulic lockout system which will deal with any obstacle you may encounter on bicycle paths. The Tektro hydraulic disc brakes provide maximum safety and control during downhill rides. The top quality WTB Ranger tires were designed for a bumpy ride. You may also appreciate not only the Shimano front and rear derailleur, but also the 24 speeds, between which you can switch using the lever gear shifter on the handlebars. With its powerful drive, optimized frame geometry and modern design, the Mountain E-Bike Devron Riddle M1.7 27.5” – 2019 will make ever mountain biking fan happy.


Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.


Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

Devron Riddle E-MTB Frame, Alu6061, internal routing

Engine

Etrotek ETM-X2, rear drive, 250W, 36V

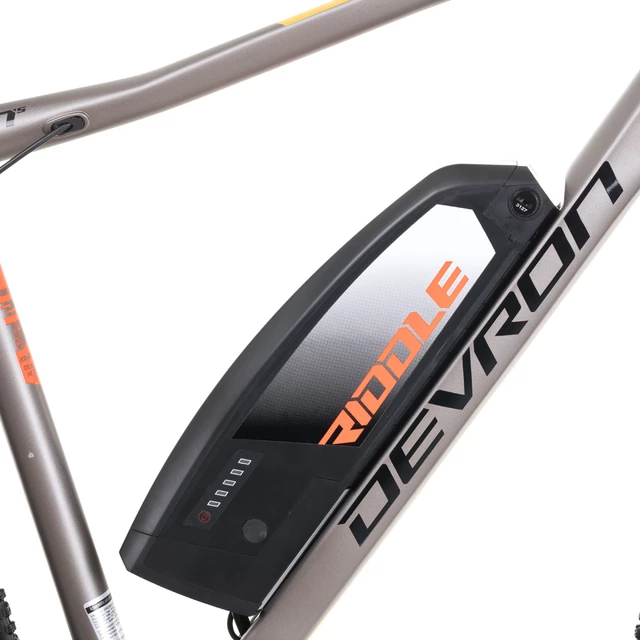

Battery

Phylion DT-09, 11 Ah, 36V

Distance range

Up to 110 km

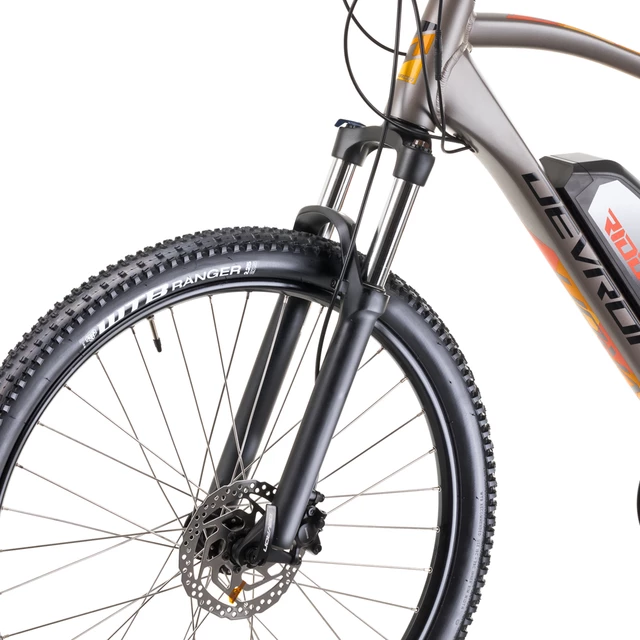

Fork

Zoom 595S HLO, 120 mm travel

Number of speeds

24

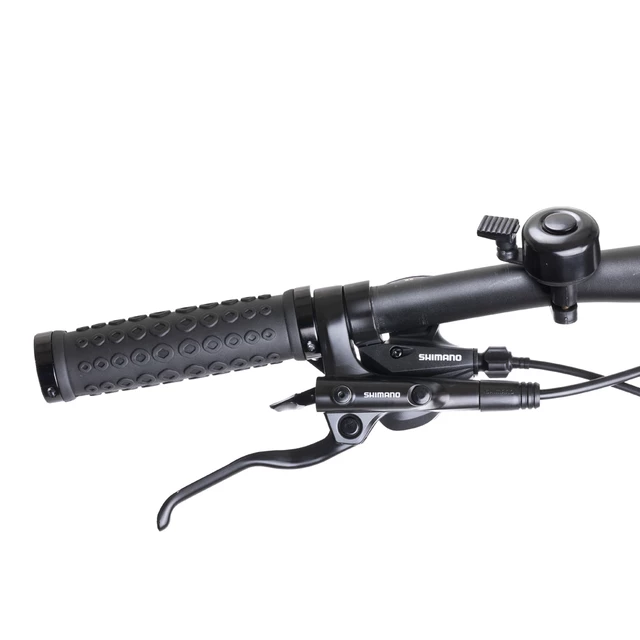

Gear shifter

Shimano Altus M310, Rapidfire Plus, 3x8 Speed

Front derailleur

Shimano Tourney TX800

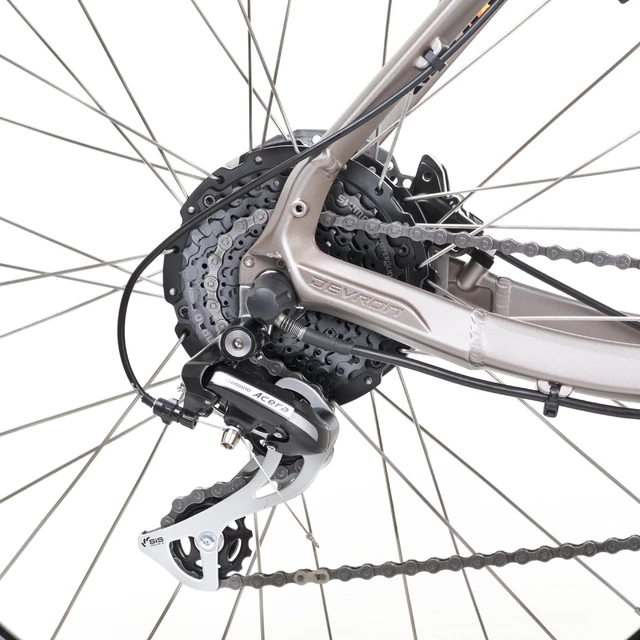

Rear derailleur

Shimano Acera M360

Brakes

Hydraulic disc, Tektro MT200, 160/160mm

Tires

WTB Ranger 27,5x2,25"

Rims

Cerurim D32, double-walled, aluminum, 36H

Chainring

Aluminium, Triple, 22x32x42T

Cassette

Shimano Altus CS-HG31, 11-32T

Chain

KMC Z-72

Headset

GH-190, 1-1/8”-1 1/2”

Handlebars

Devron 620mm, Alloy

Grips

130mm, TPR

Stem

Devron, 28.6mm, Alloy

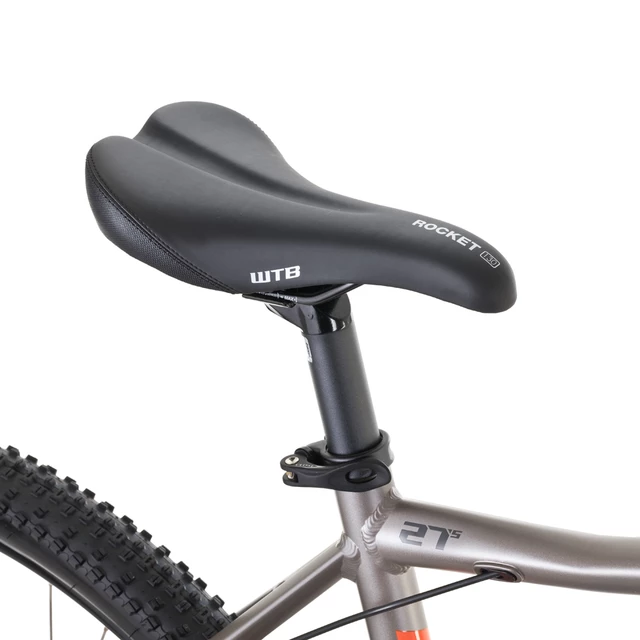

Seat

WTB Rocket Sport

Seatpost

Devron, 350mm, 27.2mm, Alloy

Pedals

VP-469

Frame size

19.5", 20.5"

Weight

24.25 kg



Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!


Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.



Product parameters

Motor Etrotek ETM-X2
Battery Phylion, 11 Ah
Wheel size 27.5" (for users over 155 cm)
Number of speeds 24
Range 110 km
Motor output 250 W
Display Etrotek LCD
Frame Devron Riddle E-MTB Frame
Frame material Aluminium
Brakes Disc, Hydraulic
Suspension suspension fork
Suspension travel 120 mm
Fork Zoom Forgo 595S 120mm, Hydraulic Lock-Out
Drive Rear wheel
Rear Brake Shimano BR-MT200 Hydraulic Disc
Front Brake Shimano BR-MT200 Hydraulic Disc
Rear tire WTB Ranger Comp 27.5*2.25
Front Tire WTB Ranger Comp 27.5*2.25
Gear shifting SHIMANO Altus SL-M310 Rapidfire Plus
Gear shifting type lever
Front derailleur Shimano Tourney FD-TX800
Rear Derailleur SHIMANO Acera M360
Crank Set Aluminium, Triple, 22x32x42T, 170mm
Cassette Shimano HG31 11-32T
Chain KMC Z-72
Front Rim WTB SX21
Rear rim WTB SX21
Handlebar grip Aluminium, 620mm
Grips TPR, 130 mm
Handlebar stem Alloy 28,6 mm
Head Tube GH-190
Saddle WTB Rocket Sport
Seat post Aluminium, 27.2x300mm
Type of e-bike MTB
Drive Etrotek
Weight 24.25 kg
Weight limit (kg) 100 kg
Year 2019
