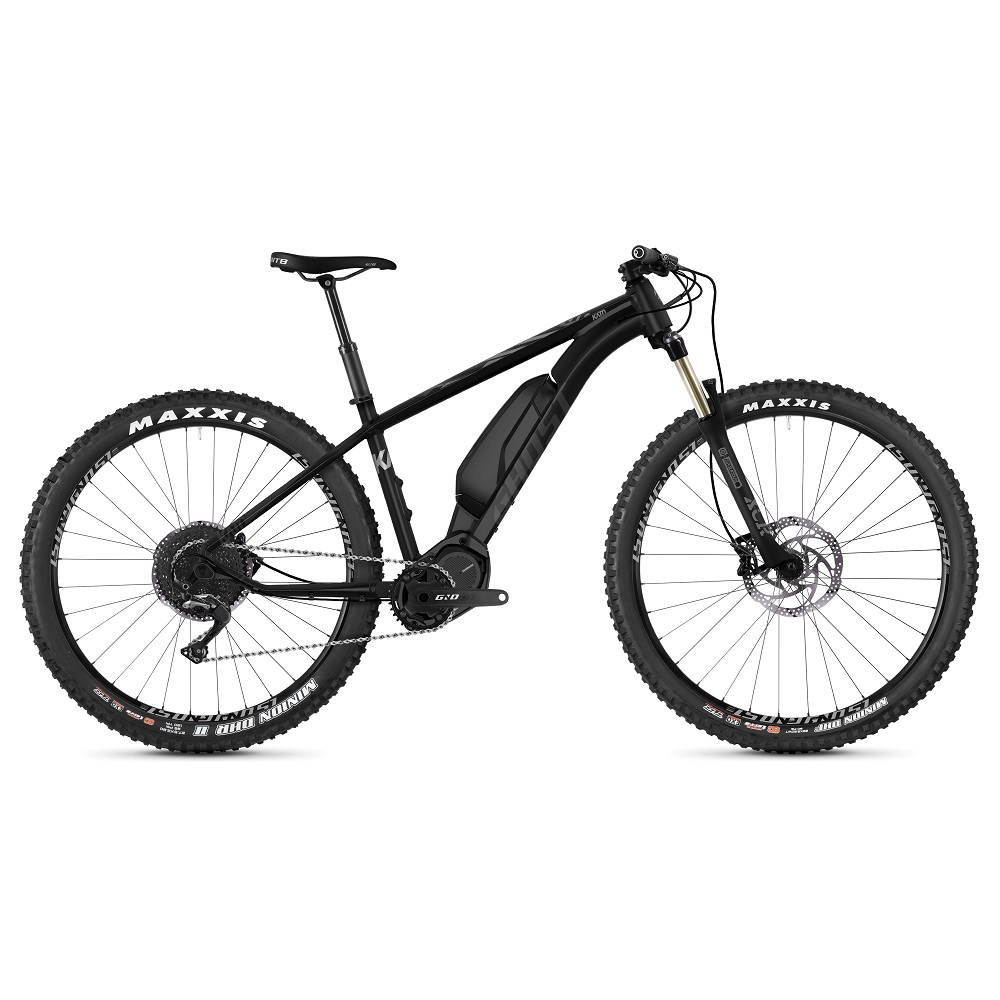

Mountain E-Bike Ghost Kato X S5.7+ – 2020

Different sized wheels for perfect riding characteristics, SRAM components, powerful center drive, high-capacity battery. more


Frame size:

Colour:  Night Black / Jet Black / Iridium Silver

3 199,60 €

incl. VAT

Share Watchdog

Your order includes

  • 2-year warranty

Recommended accessories

Description

The different-sized wheels are what makes the Mountain E-Bike Ghost Kato X S5.7+ – 2020 unique. The larger (29”) front wheel will deal with bumpy terrain while the 27.5+ rear wheel ensures excellent traction on any surface. Moreover, this combination brings the best of the two wheel sizes, making the bike suitable even for the most challenging terrain. The 250W Shimano DU-E8000 center drive with a max speed of 25 km/h is perfect for uphill riding. The 13.9Ah Shimano battery allows for a distance range of up to 130km on a single charge. You can follow all the important information such as battery status or distance covered on the easy-to-read display on the handlebars.

The Mountain E-Bike Ghost Kato X S5.7+ – 2020 features top-class components. The 11-speed Shimano M7000 rear derailleur with a lever gear shifter is perfect for hilly terrain while the Suntour air suspension fork with 120mm travel will deal with any bumps. The Tektro hydraulic disc brakes with large discs (203mm in diameter) will come in handy during downhill rides. Bikes of the Kato X series are perfect for terrain and hilly rides. They will not disappoint!


Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.


Our tips:
  • Don't know what bike type and size to choose? Find out more in our guide.
  • Don't know how to choose an e-bike? Find out more in another of our guides.
  • Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.

Technical description:

Frame

HybRide KATO AL

Fork

SR Suntour XCR 34 LOR DS Air 120 mm

Motor

Shimano DU-E8000 250 W, center drive

Battery

Shimano BT-E8010 504 Wh / 13.9 Ah

Distance range

Up to 130 km

Display

Shimano SC-E7000

Rear derailleur

Shimano SLX RD-M7000 Shadow Plus 11-S

Gear shifter

Shimano SLX SL-M7000, lever

Number of speeds

11

Cassette

Sunrace CSMS8 11-46

Cranks

Miranda Delta 34T

Brakes

Tektro HDM-735 4/2 Piston 203 mm

Front tire

Maxxis Minion DHF 3C MaxxTerra Exo 29x2.5

Rear tire

Maxxis Minion DHR II 3C MaxxTerra Exo 27.5x2.8

Front rim

Rodi Tryp 622x30 mm 32H

Rear rim

Rodi Tryp 584x35 mm 32H

Front hub

Formula DC-511 15x110 mm

Rear hub

Formula DC-1248 12x148 mm

Handlebars

GHOST MTB 780 mm, Rise 35 mm, Diam 31.8 mm

Stem

GHOST SQUARE, Diam 31.8 mm

Seatpost

Satori Sorata Fury, Diam 31.6 mm

Seat

WTB Koda


Ghost bike size chart

Frame sizeRecommended user height
XXS 135-150 cm
XS 145-160 cm
S 155-170 cm
M 165-180 cm
L 175-190 cm
XL 185-200 cm


Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!


Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.



Product parameters

Motor (central drive), Shimano DU-E8000
Battery Shimano BT-E8010 504 Wh (13,9 Ah)
Wheel size 27.5+, 29
Number of speeds 11
Range 130 km
Motor output 250 W
Display Shimano SC-E7000
Frame HybRide KATO AL
Frame material Aluminium
Brakes Disc
Fork SR Suntour XCR 34 LOR DS Air 120 mm
Drive Central
Suspension fork yes
Rear Brake Tektro HDM-735 4/2 Piston 203 mm
Front Brake Tektro HDM-735 4/2 Piston 203 mm
Rear hub Formula DC-1248 12x148 mm
Front Hub Formula DC-511 15x110 mm
Rear tire Maxxis Minion DHR II 3C MaxxTerra Exo 27.5x2.8
Front Tire Maxxis Minion DHF 3C MaxxTerra Exo 29x2.5
Gear shifting Shimano SLX SL-M7000
Gear shifting type lever
Rear Derailleur Shimano SLX RD-M7000 Shadow Plus 11-S
Cassette Sunrace CSMS8 11-46
Front Rim Rodi Tryp 622x30 mm 32H
Rear rim Rodi Tryp 584x35 mm 32H
Crankset Miranda Delta 34T
Handlebar grip GHOST MTB 780 mm, Rise 35 mm, Diam 31.8 mm
Handlebar stem GHOST MTB 31.8 mm
Saddle WTB Koda
Seat post Satori Sorata Fury 31.6 mm
Type of e-bike MTB
Drive Shimano
Weight 21.40 kg
Year 2020
