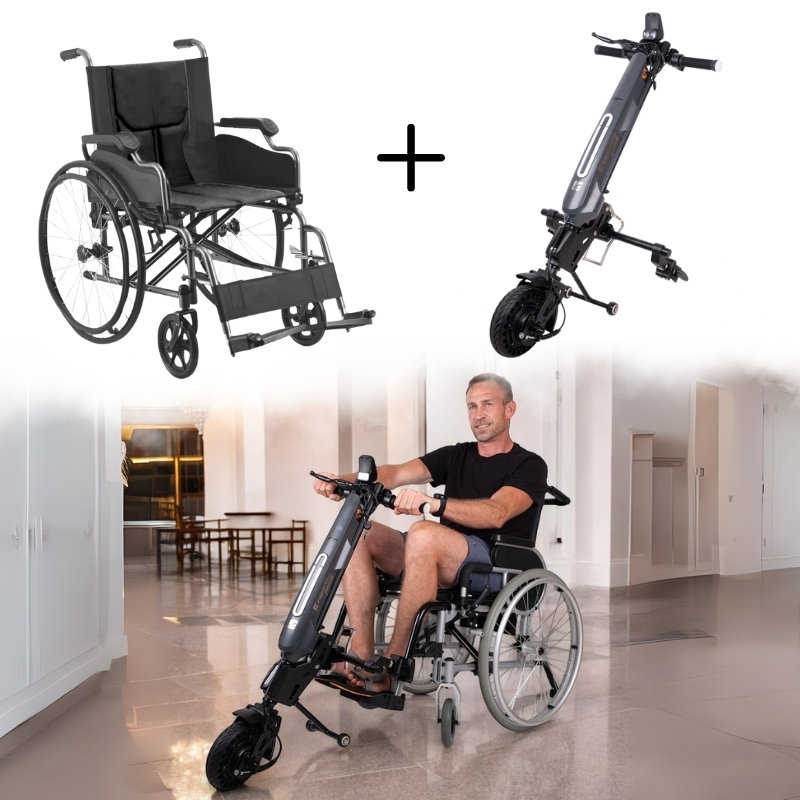

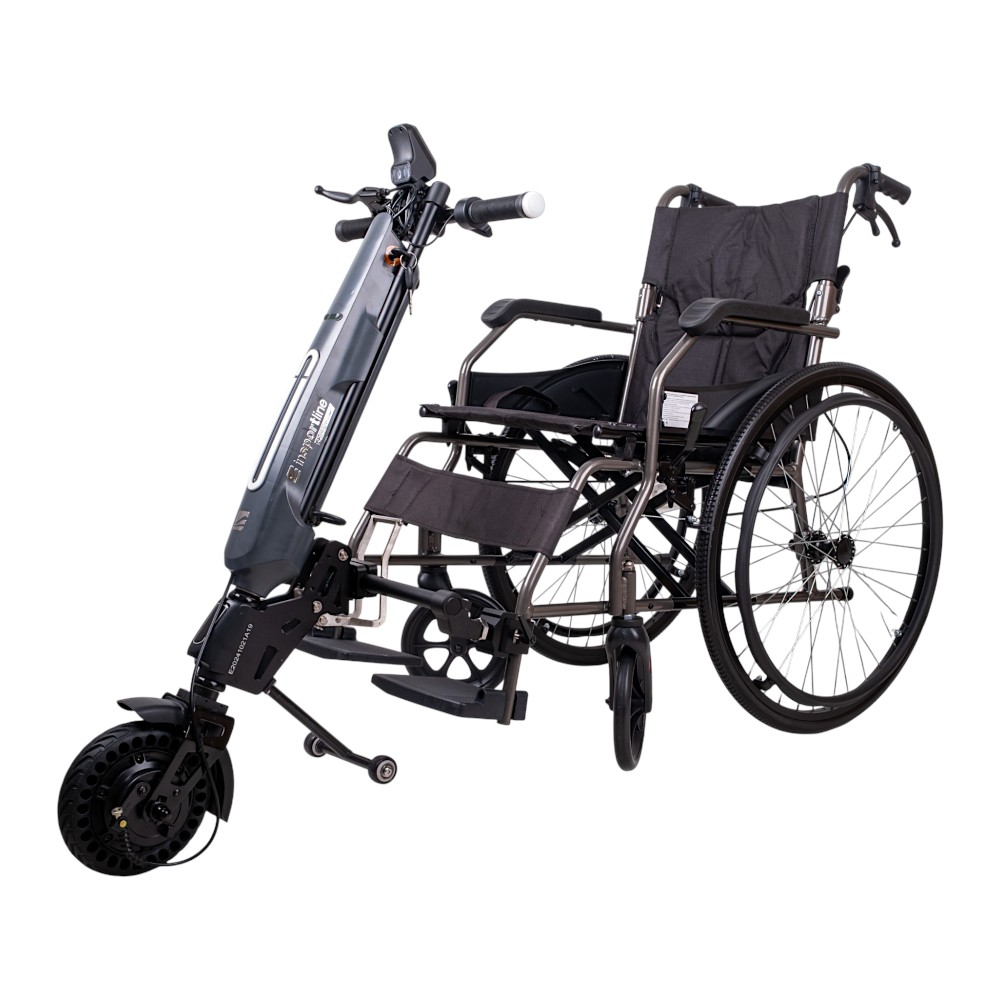

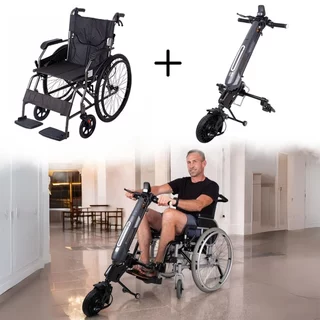

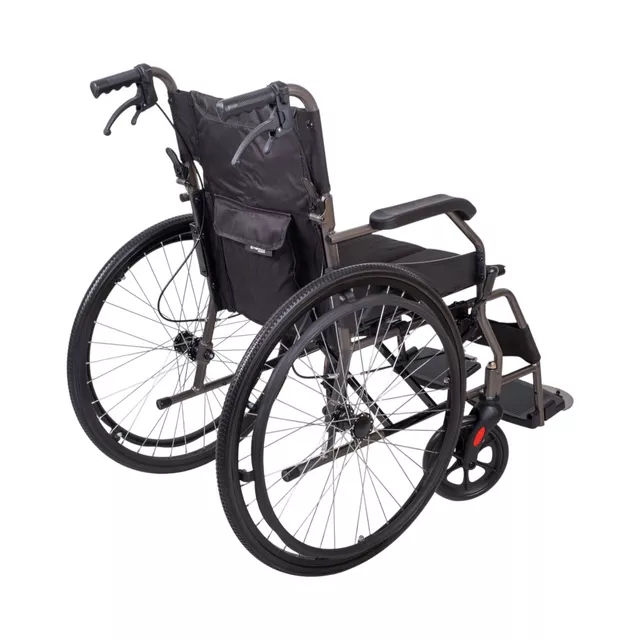

The Lightweight Foldable Mechanical Wheelchair w/ Oppatia Drive inSPORTline Jakesully is the ideal solution for everyday mobility—at home, outdoors, or on longer trips. It combines a lightweight folding frame, comfortable seating, and advanced electric propulsion to provide the user with a high level of independence and comfort—without compromise.
Comfort That Adapts to You
The inSPORTline Jakesully wheelchair is equipped with a padded seat and backrest for comfort, even during extended use. With adjustable, swing-away footrests and height-adjustable calf supports, it easily adapts to the individual needs of the user. A rear pocket also ensures that all essentials are within easy reach.
Easy Handling and Folding

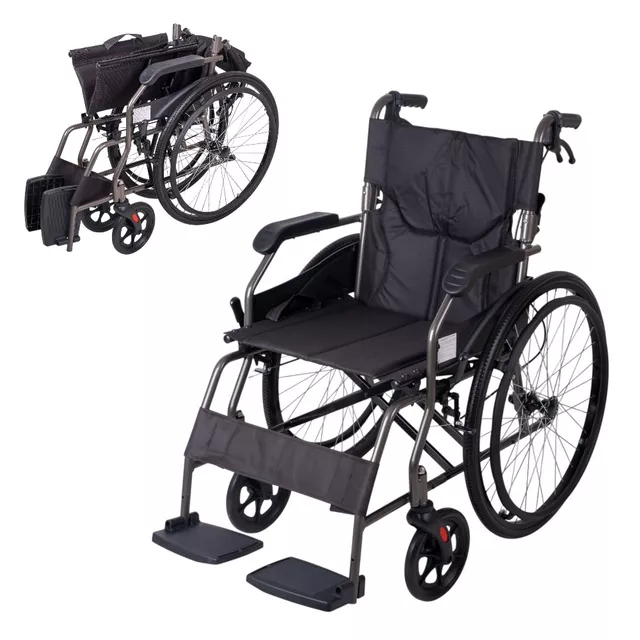

Thanks to its lightweight folding frame that weighs only 13 kg, the wheelchair is easy to carry, compact, and ideal for frequent transport or storage in a car. When unfolded, it provides a stable and sturdy structure with a weight capacity of up to 100 kg. When collapsed, it’s only 28 cm wide.
Oppatia Electric Drive – Go Further with Less Effort

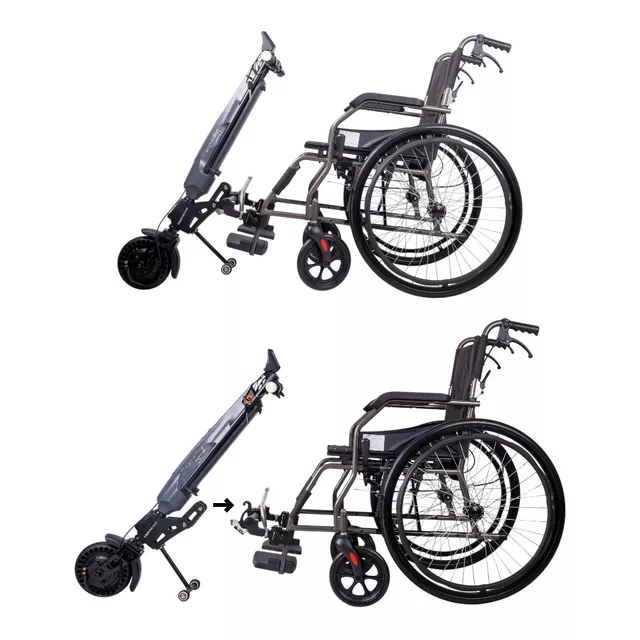

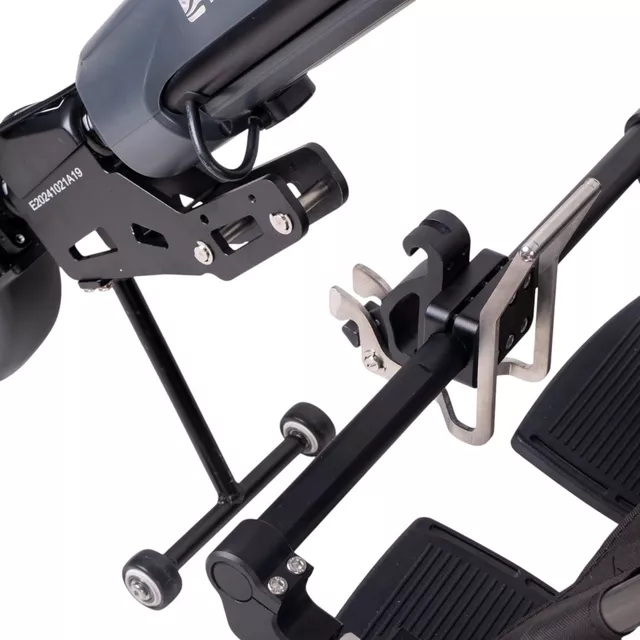

The optional inSPORTline Oppatia electric drive eliminates the fatigue of manual propulsion and gives you the freedom to move with a range of up to 25 km. With three speed modes (6 / 15 / 20 km/h), a reverse gear, and an intuitive LED display, you’re always in control. The “click and go” system allows for easy attachment and removal of the motor—no tools required—making it accessible even to users with limited mobility.
Safety First
The inSPORTline Oppatia drive ensures safe operation with high-quality drum brakes, a clear LED display, and powerful front lighting for nighttime driving. The wheelchair itself features a manual user-operated brake, as well as a brake lever on the handlebars for a caregiver, ensuring full control in any situation. A safety lock prevents unintended movement.
Key Features:
- Complete set for independent or assisted use
- Lightweight folding frame that weighs only 13 kg
- Padded seat and backrest
- Adjustable footplates
- Height-adjustable calf supports
- Swing-away footrests
- Push rims for manual propulsion
- Swivel front wheels for maneuverability
- Optional electric drive with a range of up to 25 km
- 3 speed settings and reverse gear

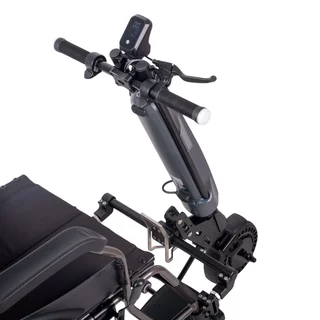

- LED display and simple handlebar controls
- Front LED light and drum brakes for safety

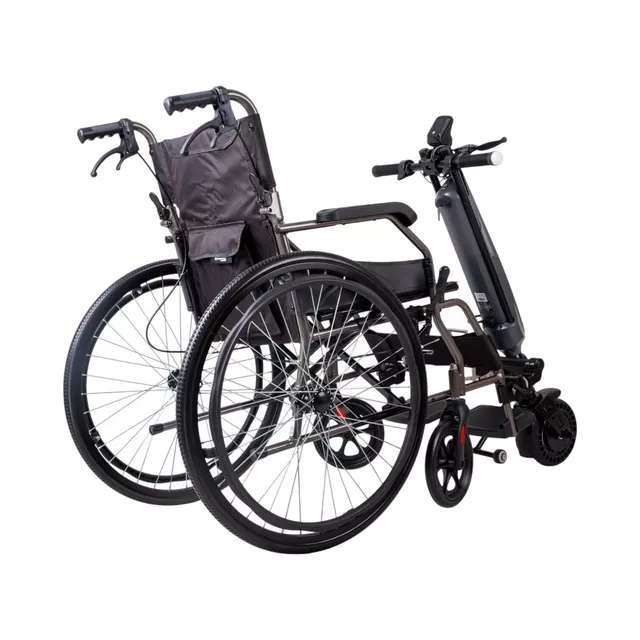

- Rear pocket for small items
- Weight capacity up to 100 kg
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
Technical description (Jakesully wheelchair):
|
Dimensions |
L 101 x W 64 x H 89 cm |
|
Collapsed dimensions (w/ footrests) |
L 101 x W 28 x H 78 cm |
|
Collapsed dimensions (w/o footrests) |
L 94 x W 28 x H 78 cm |
|
Backrest height |
40 cm |
|
Seat depth |
40 cm |
|
Seat width |
45.5 cm |
|
Seat ground clearance |
51 cm |
|
Front wheel diameter |
20 cm |
|
Rear wheel diameter |
60 cm |
|
Max load capacity |
100 kg |
|
Weight |
13 kg |
The images above are for illustration purposes only; the design can be slightly different.
Technical description (Oppatia drive):
|
Frame material |
Aluminum and plastic |
|
Compatibility |
Wheelchairs with a front width up to 45 cm |
|
Speed |
6, 15, 20 km/h |
|
Reverse gear |
Yes |
|
Battery |
36V 7.8Ah, lithium battery with an LG cell, can be removed from the drive |
|
Charging time |
2 – 4 hrs. |
|
Engine |
36V, 350W brushless |
|
Tire |
INNOVA 8½*2.5 |
|
Display |
LED |
|
Lights |
Front LED |
|
Brakes |
Drum |
|
Braking distance |
3 – 5 m |
|
Distance range |
Up to 25 km (with the user weighing up to 70 kg and under optimal conditions) |
|
Max incline |
8 degrees |
|
Length |
108 cm |
|
Width |
48 cm (bar that’s installed on the wheelchair) / 46 cm (handlebars) |
|
Height |
80 cm |
|
Weight (w/o battery) |
9.8 kg |
|
Weight (w/ battery) |
11 kg |
|
Max load capacity |
115 kg |
|
Note |
The product doesn’t show distance covered under 1 km |
