Sport>Bicycles>Road Bikes > Road Bike KELLYS ARC 10 28” – 2020 (Product code: K19020-M)

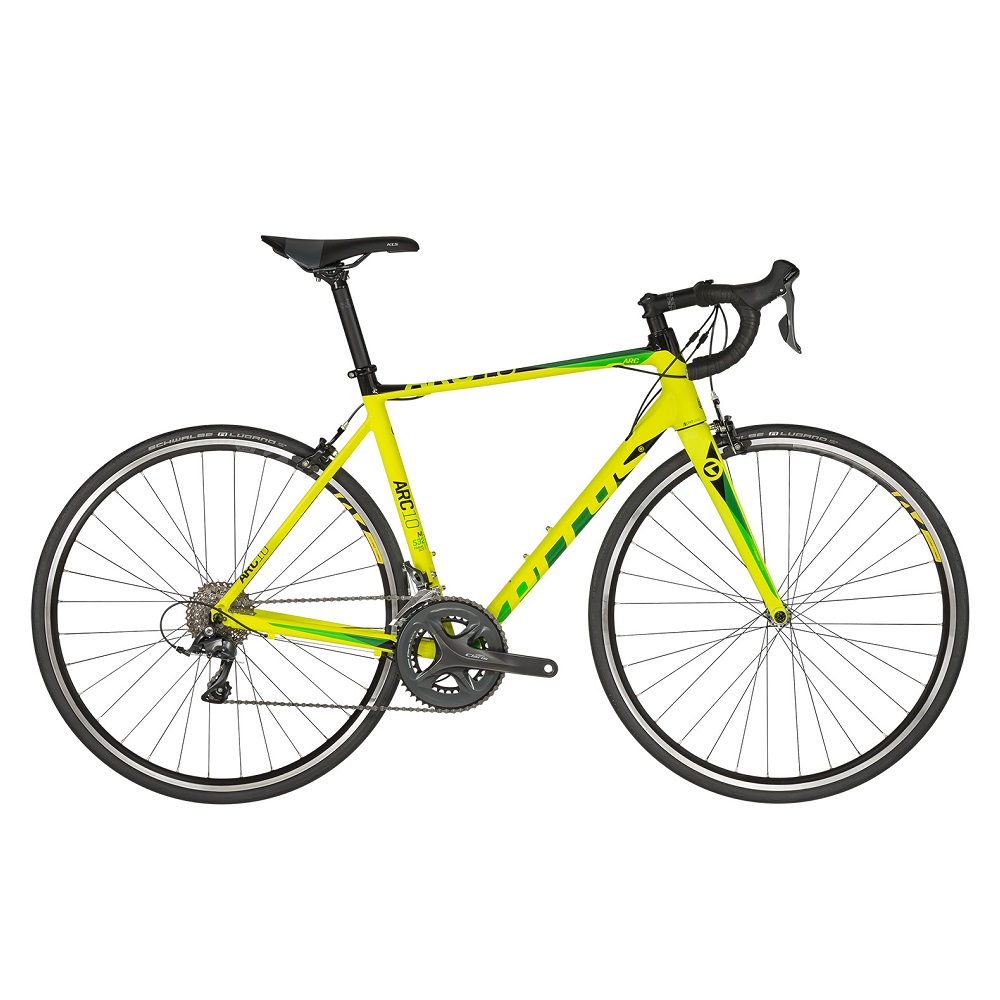

Road Bike KELLYS ARC 10 28” – 2020

Aluminum frame with optimized geometry, excellent riding characteristics, lightweight, lever gear shifter, high quality components.

Aluminum frame with optimized geometry, excellent riding characteristics, lightweight, lever gear shifter, high quality components. more »

Availability:
E-shop
Your price:
768,80 € incl. VAT
Price excl. VAT:
635,37 €

Recommended accessories

  • Description
  • Parameters
  • Alternatives (8)
  • Video (1)

Road Bike KELLYS ARC 10 28” – 2020

The Road Bike KELLYS ARC 10 28” – 2020 is suitable for beginners and riders new to road cycling. The basic ARC model features the Kellys Endurance Concept aluminum frame, which not only provides the required firmness, but also absorbs the unevenness of the road. The lightweight frame with optimized geometry provides control and stability at high speeds. The Road Bike KELLYS ARC 10 features the Shimano R2000 component set which allows for excellent performance and durability.


Our tips:

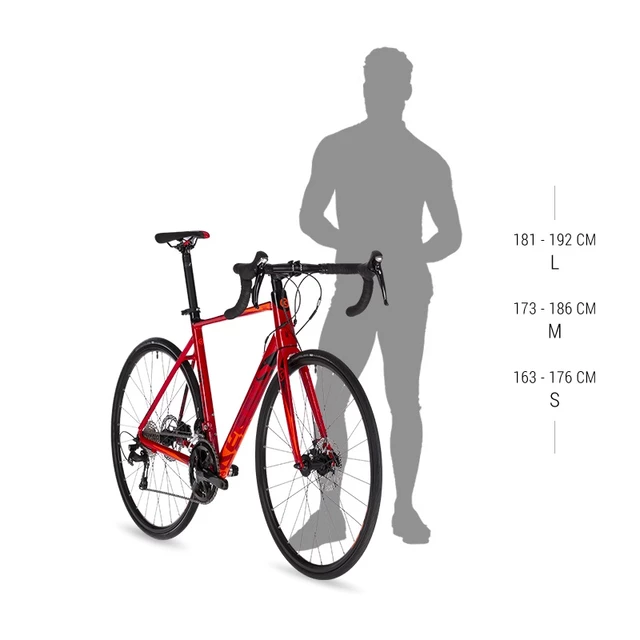

  • Don't know how to choose the correct bike size or type? You'll learn more in our guide.
  • If you live in the Czech Republic or Slovakia, you can visit our stores for servicing or to try a bike out.

Technical description:

Frame

KELLYS Endurance Concept, Aluminium alloy, tapered HT, internal routing

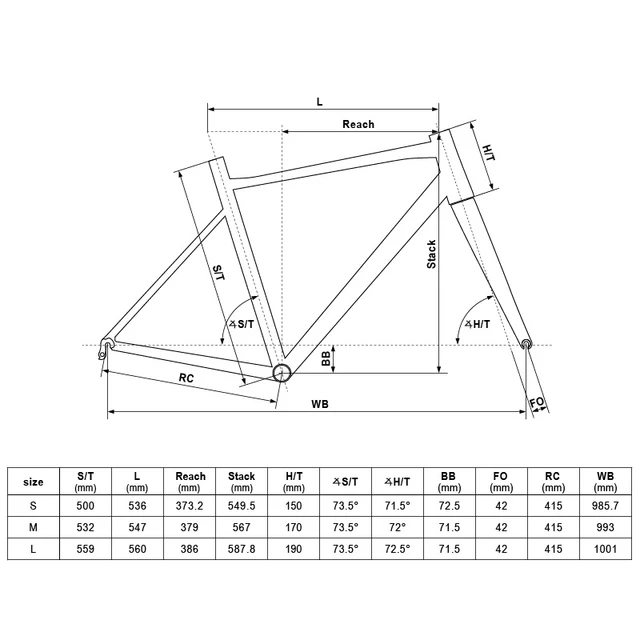

Frame size

S (S/T 500mm, L 536mm) / M (S/T 532 mm, L 547mm) / L (S/T 559mm, L 560mm)

Fork

KELLYS Dynamic aluminium alloy (1.5 alloy tapered steerer)

Headset

FSA 1.5 semi-integrated

Bottom bracket

SHIMANO BB-RS500

Cranks

SHIMANO R2000 compact (50x34) - length 170mm (S - M), 175mm (L)

Front derailleur

SHIMANO Claris R2000

Rear derailleur

SHIMANO Claris R2000 (direct mount)

Gear shifter

SHIMANO Claris ST-R2000 Dual Control, lever

Number of speeds

16

Cassettes

SHIMANO CS-HG50-8 (11-28)

Chain

KMC Z8 (108 links)

Brakes

TEKTRO

Brake levers

SHIMANO Claris ST-R2000 Dual Control

Hubs

SHIMANO Claris 2400 (32 holes)

Rims

KELLYS Spark 622x15 (32 holes / eyelets)

Tires

SCHWALBE Lugano K-Guard 25-622 (700x25C)

Stem

KLS Active Road - diam 28.6mm / bar bore 31.8mm / 6° / length 90mm (S), 100mm (M), 110mm (L)

Handlebars

KLS Active Road - diam 31.8mm / width 400m (S), 420mm (M), 440mm (L)

Seatpost

KLS Active Road - diam 30.9mm / length 350mm (M), 400mm (L)

Seat

KLS SlipStream cr-mo

Spokes

stainless steel black

Grips

KELLYS bar tape

Weight

9.95kg (M)

Road Bike KELLYS ARC 10 28” – 2020 - Product parameters

Number of speeds
16
Frame material
Aluminium
Frame
KELLYS Endurance Concept, tapered HT, internal routing
Wheel size
28
Brakes
V-brake
Suspension fork
no
Fork
KELLYS Dynamic aluminium alloy (1.5 alloy tapered steerer)
Rear Brake
TEKTRO
Front Brake
TEKTRO
Spokes
Stainless steel black
Rear hub
SHIMANO Claris 2400 (32 holes)
Front Hub
SHIMANO Claris 2400 (32 holes)
Rear tire
SCHWALBE Lugano K-Guard 25-622 (700x25C)
Front Tire
SCHWALBE Lugano K-Guard 25-622 (700x25C)
Gear shifting
SHIMANO Claris ST-R2000 Dual Control
Gear shifting type
lever
Front derailleur
SHIMANO Claris 2000
Rear Derailleur
SHIMANO Claris 2000
Cassette
SHIMANO CS-HG50-8 (11-28)
Chain
KMC Z8 (108 links)
Front Rim
KELLYS Spark 622x15 (32 holes / eyelets)
Rear rim
KELLYS Spark 622x15 (32 holes / eyelets)
Brake levers
SHIMANO Claris ST-R2000 Dual Control
Crankset
SHIMANO Claris R2000 compact (50x34)
Bottom bracket
SHIMANO BB-RS500
Handlebar grip
KLS Active Road
Grips
KELLYS bar tape
Handlebar stem
KLS Active Road (diam 28.6mm / bar bore 31.8mm / 6°)
Head Tube
FSA 1.5 semi-integrated
Saddle
KLS SlipStream
Seat post
KLS Active Road
Frame size
L (559 mm), M (532 mm), S (500 mm)
Weight
9.95 kg
Year
2019

Road Bike KELLYS ARC 10 28” – 2020 - video
