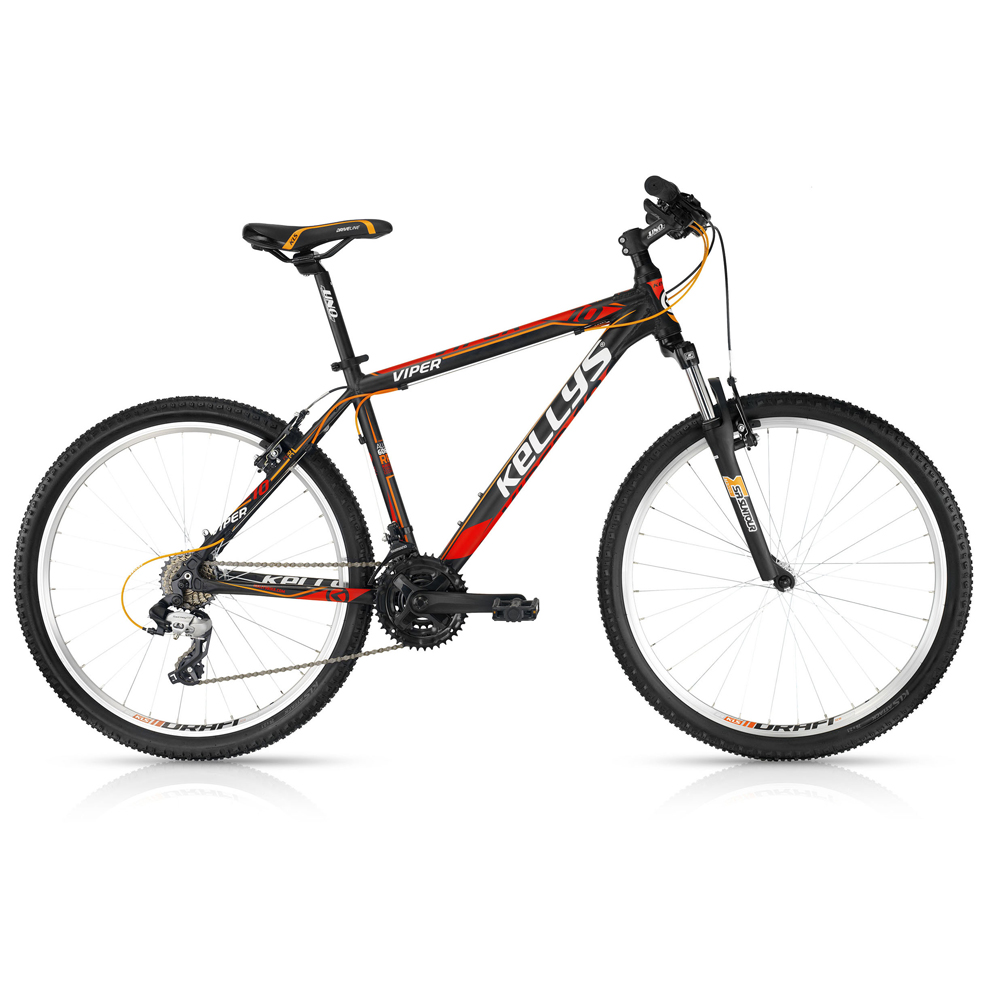

The Mountain Bike KELLYS VIPER 10 Black Fire is a modern bike with top quality components and the special Alutec 6061 – RRC frame. The SR SUNTOUR M3020 175mm lift fork, the APSE Artek V-brakes, the 21 gears and the SHIMANO and KELLYS components provide excellent riding characteristics. The Mountain Bike KELLYS VIPER 10 is intended for terrain riding.
Our tips you might be interested in:
- Learn more about warranty and post-warranty bike service in our stores.
Technical description:
|
Frame |
KELLYS Alutec 26 6061 - RRC Geometry (Race Ready Concept) |
|
Frame size |
395mm (15.5") / 445mm (17.5") / 495mm (19.5") / 545mm (21.5") |
|
Fork |
SR SUNTOUR M3030 (26), 75mm, coil spring |
|
Headset |
semi-integrated |
|
Bottom bracket |
cartridge (120mm) |
|
Cranks |
PROWHEEL (42x34x24) - length 170mm |
|
Front derailleur |
SHIMANO TZ30 (diam 31.8mm) |
|
Rear derailleur |
SHIMANO TX800 |
|
Gear shifter |
SHIMANO ST-EF41-7 EZ-fire Plus |
|
Number of gears |
21 |
|
Cassettes |
*** |
|
Chain |
KMC Z51 (108 links) |
|
Brakes |
APSE Artek V-brake |
|
Brake levers |
SHIMANO ST-EF41-7 EZ-fire Plus |
|
Hubs |
KLS Drive (32 holes) |
|
Rims |
KLS Draft Disc 559x19 (32 holes) |
|
Tire cases |
KLS Attack 54-559 (26x2.10) |
|
Stem |
KALLOY - diam 28.6mm / bar bore 25.4mm / 15° / length 75mm (15.5"), 90mm (17.5"), 105mm (19.5" - 21.5") |
|
Handlebars |
steel RiseBar - diam 25.4mm / width 620mm (15.5" - 17.5"), 640mm (19.5" - 21.5") |
|
Extension bar |
*** |
|
Seatpost |
KALLOY - diam 27.2mm / length 300mm (15.5"), 400mm (17.5" - 21.5") |
|
Seat |
KLS DriveLine |
|
Pedals |
plastic |
|
Rear shock |
*** |
|
Accessories |
*** |
|
Tangential spokes |
*** |
|
Brake cables |
DRIVING Force SCS (SlickCableSystem) |
|
Spokes |
U.C.P. steel |
|
Grips |
KLS Advancer |
|
Front lighting |
*** |
|
Back lighting |
*** |
|
Fenders |
*** |
|
Pinion gears |
SHIMANO MF-TZ21-7 (14-28) |
|
Brake discs |
*** |
|
Stationary axis |
*** |
Note: Due to the unstable situation with the offer of bicycle components, it is not possible to determine a more precise availability date for currently sold-out variants and models. Thank you for your understanding.
Kellys reserves the right to change information such as product specifications, equipment, models, colors and materials.
Images are for illustrative purposes only.
